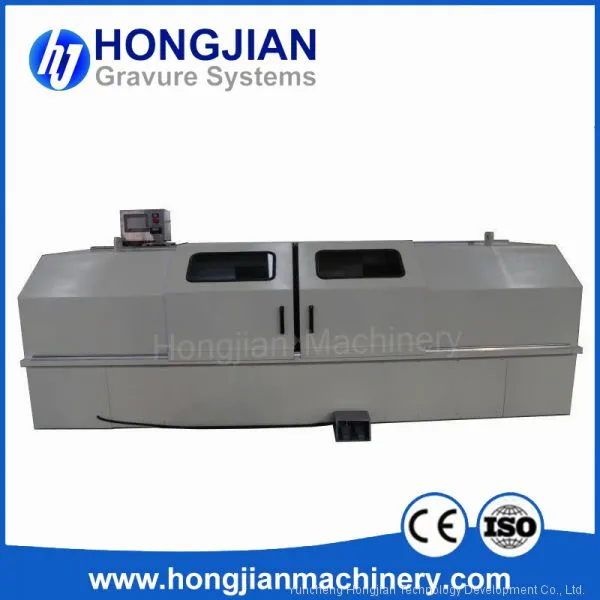

Copper surface polishing machine is developed on the basis of Japanese Copper polishing machine, combined with use experience of designers and modern numerical control technology. In order to ensure the accuracy of the machine, the polishing head adopts rectangular guide rail to ensure the stability of polishing head. The control parts of the machine use operation module control, making it convenient for users to operate. We use the full seal processing machine, thus effectively guarantee the working environment clean and tidy.
FEATURES:
1. The highly integrated operation module and CNC control make almost all of the operations convenient.
2. Strengthening the welding frame ensures the collective strength of the equipment.
3. The unique vertical dust removal structure has advantages of good dust removal effect, small volume, ensuring the clean working environment.
4. The walking rail of polishing head is dustproof, ensuring the accuracy of rail.
5. High efficiency. The surface of the polished products is like a mirror.
Technical Parameters:
| Cylinder length: | 400-1400mm |
| Cylinder diameter: | Φ85-350mm |
| Cylinder rotation speed: | 100-400rpm |
| Fabric wheel diameter: | 400mm |
| Fabric wheel rotation speed: | 2900rpm |
| Fabric wheel moving speed: | 520-800mm/min |
| Power Supply: | 7.9 KW |
| Dimension: | 3650×1600×1230mm |
| Weight: | 2800 kg |
