Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 1 Voice(FXS/FXO) Over Fiber Phone Over Fiber Multiplexer

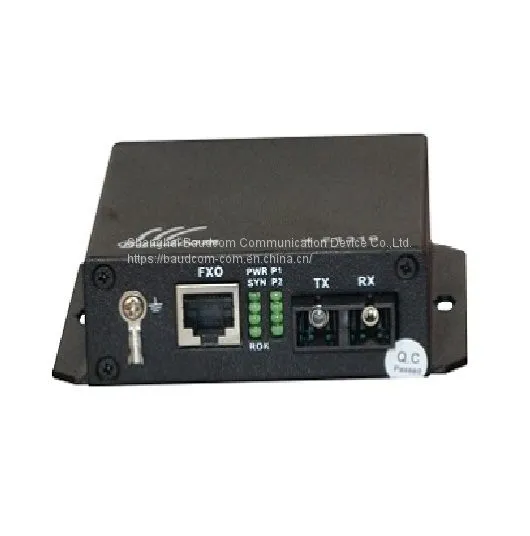

1 Voice(FXS/FXO) Over Fiber Phone Over Fiber Multiplexer

Name: 1 Voice(FXS/FXO) Over Fiber Phone Over Fiber Multiplexer
Brand: Baudcom
SKU: 158779746
Availability: InStock

1 Voice(FXS/FXO) Over Fiber Phone Over Fiber Multiplexer thumbnail-1

1 Voice(FXS/FXO) Over Fiber Phone Over Fiber Multiplexer photo-1

US$ 35 - 55 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Baudcom

Place of Origin:

China

Model Number:

BD-OP-MUX01/O

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Baudcom

Place of Origin China

Model Number BD-OP-MUX01/O

Functions
The voice(FXS/FXO) phone over fiber modem realizes one channel voice phone over fiber transmission. This is cost-effective phone over fiber mini device,which is suitable for one channel voice,low cost application field. Its merits include complete warning function, high integration, low consumption, stable performance and convenient usage.

PRODUCT CHARACTERISTIC

Have two row of LED , one indicate local status, the other indicate remote status
Realise auto-speed setting of local device to remote device
Having pseudo random code test function, can used as a 2M Protocol Analyzer
Provide 1 channels voice access, support calling indication
Voice port supports O port and S port, O port connect with PBX, S port connect with phone users

Optical interface

Optical wavelength: single mode 1310nm/1550nm

Fiber: single fiber or double fiber for option

Transmitting consumption: -9dBm/-5dBm

Transmission range: 0-50Km/120Km for option

Optical interface: SC/FC

Receiving and dispatching module: >-6dBm

Optical receiver receiving sensitivity

Fiber circuit code: NRZ code

Voice Interface

FXS:

Alarm voltage: 75V

Alarmf requency: 25HZ

2 line input impedance: 600Ω (hanging off)

Wastage: 40db

FXO:

Alarm detecting voltage: 35V

Alarm detecting frequency: 17HZ-60HZ

2 line input impedance: 600Ω (hanging off)

Wastage: 40db

Power supply

working voltage range wide, good

anti-disturb and Isolation, work stable

option I – DC,range DC-36V~DC-72C

option II – AC,range AC90V~AC240V

Power Consumption:

environment condition

Operating temperature: 0C~+50 C

Storage temperature: -20 C~+70 C

Relative temperature:95% (uncondensed)

Dimension

110mm(L) x 80mm(W) x 20mm(H)

Application

Related Link:
Questions about POTS(fxs/fxo) phone over fiber multiplexer

Ordering information

BD-OP-MUX01/S	voice(FXS) over fibe modem,one channel phone over fiber,power AC220V or DC48V.
BD-OP-MUX01/O	voice(FXO) over fibe modem,one channel phone over fiber,power AC220V or DC48V.
