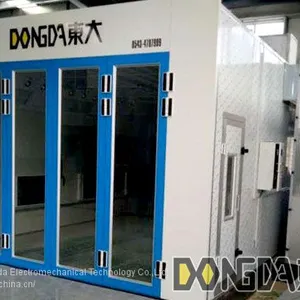

Spray Booth
US$ 9411 - 9839
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DONGDA
Place of Origin:
China
Model Number:
DD-7000
Payment & Shipping
Payment Methods:
Port of Shipment:
qigndao
Delivery Detail:
15 days
Related Products
Brand Name
DONGDA
Place of Origin
China
Model Number
DD-7000
Certification
Other, CCS
Voltage
380v/3phase/50HZ
Power
46
No Load Speed
0.3m/s
Internal Size
6900*3900*2500mm
External Size
7000*5300*3300
| MODEL | DOWNDRAFT DD-7000 | UPDATE | 2018/5/11 |
| Inside Size | 6900×3900×2500mm（L×W×H） | Outside Size | 7000×5300×3300mm（L×W×H） |

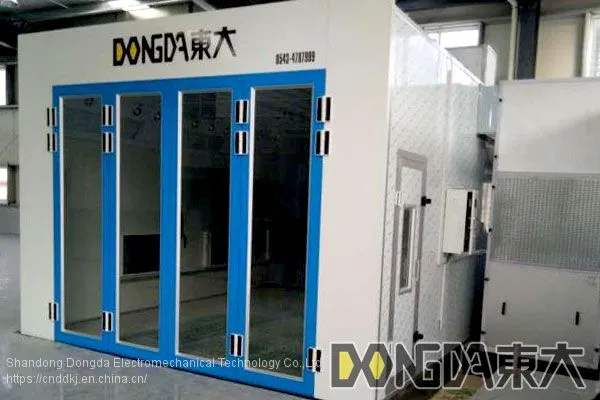

| Entrance Door | 4-leaf , aluminum alloy frame glass door, composed of high-strength aluminum alloy profile frame and tempered glass,size is 3,200x2,480mm(WxH) Square self-locking aluminum alloy viewing window, luxury door lock, square tube guide posts, aluminum alloy hinges,Sealed with special sealing strips. | ||
| Personnel Door | 1 leaf ,size is 700x1800mm(wxh),luxyry glass door,two sets pressure locks and glass observation window. | ||
| Cabin | 1、rock wool wall panels with self-sealing construction, the thickness is 50mm,and the inside and outside δ=0.4mm color steel plate 2、plenum construction is made of galvanized steel with a thickness of 0.8mm 3、booth frame made of galvanized steel bending |
||
| Basement | steel structure base;Mechanism welding ground grid 30 × 5 flat steel,three line grilles,two line skid plates,heght is 300mm，two ramps | ||
| Intake and Exhaust Air Units |
1、the fan cabinet is made of sprayed profiles and steel with protective film 2、fan cabinet size is 5000*1300*3200（L*W*H） 3、two sets centrifugal fan with double intake air. 4、intake fan model:YDW-4.5m;single power 3kw,with Dust cover 5、1 set single inlet high pressure exhaust fan model:DDF,sigtl power 7.5kw 6、Water paint nozzle [stainless steel]: 36pcs 7、Equipped with water varnish flow diversion catheter. |
||
| Duct work | galvanized steel plate and flange;φ600mm 15m straight tubes | ||
| Heating System | 8 sets of luxurious nano-heating heater,8*3=24w，Use high temperature wire. | ||
| Filtering System | Pre-Filter Effectively capture dust particles larger than 10um Ceiling filter.Efficiently capture dust particles larger than 4um with a capture rate of ≥99% Floor Filter: fiberglass filter |
||
| Environmental protection equipment |
1. A layer of glass fiber cotton is set inside the environmental protection box to absorb the dust and particles in the paint mist. 2. A special honeycomb activated carbon with a thickness of 50mm is set in the middle of the environmental protection box to adsorb the benzene series in the exhaust gas. 3、Using high-energy and high-efficiency magnetic sensing UV photo-oxygen catalyzed exhaust gas treatment methods to generate ozone molecules, completely decompose high-molecular compounds in the exhaust gas, degrade into low-molecular compounds, carbon dioxide and water, and discharge exhaust gas to achieve “comprehensive emission of atmospheric pollutants. Standard "GB16297-1996 national standard; |
||
| lighting System | Celling light :30pcs 24w LED lamp min800Lux | ||
|
Control System |
Electric control box with: PLC programming, touch control panel, with over-temperature alarm, missing protection, thermal overload protection, time setting, temperature setting, spray paint, paint, lighting, power supply, emergency stop switch., etc. | ||
| No-load airflow speed |
0.3m/s | ||
| Power supply | 380v/3phase/50HZ | ||
| Maximum Baking temperature |
55 | ||
| Total power | 46KW | ||
| Color | BOOTH OPTIONS,sea blue, red, orange, white , etc. | ||
