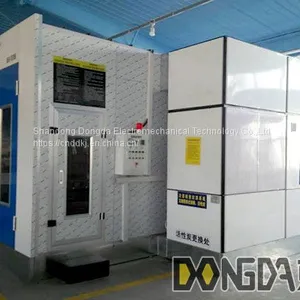

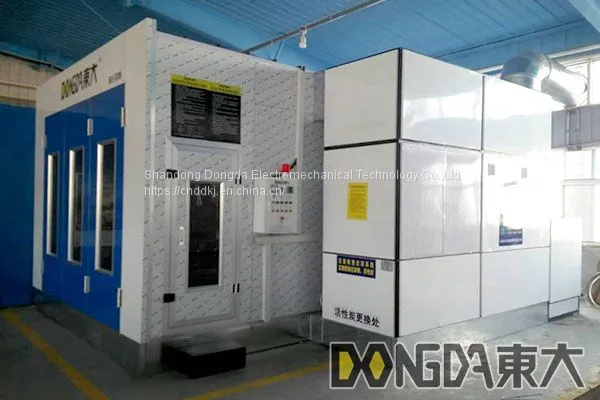

Spray Booth

Spray Booth photo-1
US$ 5641 - 5898 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DONGDA
Place of Origin:
China
Model Number:
DD-3000
Payment & Shipping
Payment Methods:
Port of Shipment:
qigndao
Delivery Detail:
15 days
Brand Name DONGDA
Place of Origin China
Model Number DD-3000
Certification Other, CCS
Voltage 380v/3phase/50HZ
Power 37
No Load Speed 0.3m/s
Internal Size 6900*3900*2500mm
External Size 7000*5300*3300
MODEL DOWNDRAFT   DD-3000 UPDATE 2018/5/11
Inside Size 6900×3900×2500mm(L×W×H) Outside Size 7000×5300×3300mm(L×W×H)
Entrance Door 3-leaf   Sheet metal door,size is 3,200x2,480mm(WxH) Square self-locking aluminum   alloy viewing window, luxury door lock, square tube guide posts, aluminum   alloy hinges,Sealed with special sealing strips.
Personnel Door 1   leaf ,size is 700x1800mm(wxh),aluminum apply edging,two sets pressure locks   and glass observation window.
Cabin  1rock wool wall panels with   self-sealing construction, the thickness is 50mm,and the inside and outside   δ=0.4mm color steel plate

2plenum construction is made of galvanized steel with a   thickness of 0.8mm
    3
booth frame made of   galvanized steel bending
Basement steel structure base;two line grilles,three   line skid plates,heght is 300mm

with two ramps
Intake and Exhaust
    Air Units
1the   fan  cabinet is made of sprayed   profiles and steel with protective film
    2
fan cabinet size is   3900*1300*3200(L*W*H)
    3
two sets   centrifugal fan with double intake air.
    4
intake fan   model:YDW-4.5m;single power 3kw
    5
1 set single inlet   high pressure exhaust fan model:DDF,sigtl power 5.5kw
Duct work galvanized steel plate and flange;2 straight   tubes, 1 elbow.
Heating System 8 set of far-infrared heater,8*24w
Filtering   System Pre-Filter Effectively capture dust particles   larger than 10um
    Ceiling filter.Efficiently capture dust particles larger than 4um with a   capture rate of 98%
    Floor Filter: fiberglass filter
lighting   System Celling light :24pcs 24w LED lamp min800Lux

    Control System

Electric control box with: temperature setting,   time setting, spray paint, paint, lighting, power supply, emergency stop   switch, etc.
No-load airflow
    speed
0.3m/s
Power supply 380v/3phase/50HZ
Maximum Baking
    temperature
55
Total power 37KW
Color BOOTH OPTIONS,sea blue, blush, orange, white gray, etc.


Product Tags: spray booth , paint booth
