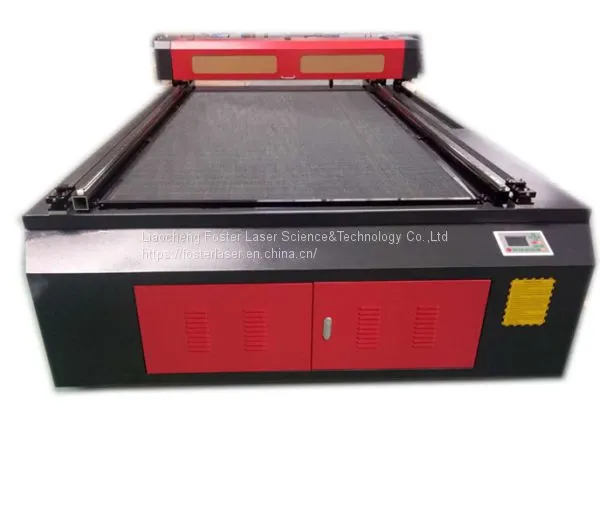

1325 laser cutting machine
This co2 laser cutting machine can use for cutting metal&nonmetal meterial ,can used for the small business industrial.
Metal materail: This machine can cut carbon steel, stainless steel, According to different metal materials and thickness, we will adjust the plus width, current, frequency, cutting speed.
Specification of 1325 laser cutting machine | |
Model |
XM-1325 |
Worktable |
honeycomb or blade |
Eneraving area |
1300*2500mm |
Laser Power |
80W/100W/130W/150W/160W/260W |
Engraving Speed |
500mm/s Max |
Engraving Depth |
5mm |
Cutting Speed |
60mm/s |
Cutting Depth (Acrylic) |
0-20mm (acrylic) |
Up and down work table |
Ec Up and down 550mm adjustable |
Minimum Shaping Character |
1 X 1mm |
Resolution Ratio |
0.0254mm (1000dpi) |
Power Supply |
220V(or110V)+/-10% 50Hz |
Resetting Positioning |
Accuracy less than or equal to 0.01mm |
Water protecting sensor and alarm |
Yes |
Operating Temperature |
0-45℃ |
Operating Humidity |
35-70℃ |
Graphic Format Supported |
PLT/DXF/BMP/JPG/GIF/PGN/TIF |
Operation System |
Windows 98/ME/2000/XP/VISTA/Windows 7/8 |
Software |
Lettro/Rudai |
Engraving on Curve Surfaces(Yes/No) |
No |
Control Configuration |
DSP |
Water Cooling(Yes/No) |
Yes |
Cooling System |
Water Cooling and protection system |
Laser Tube |
Sealed CO2 glass laser tube |
Machine Dimension |
3150x1900x1000(mm) |
Gross Weight |
800kg |
