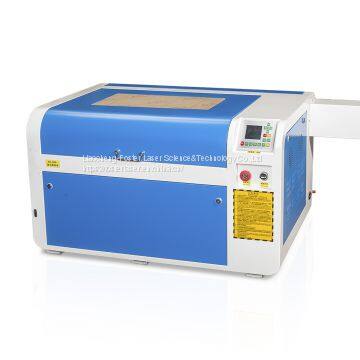

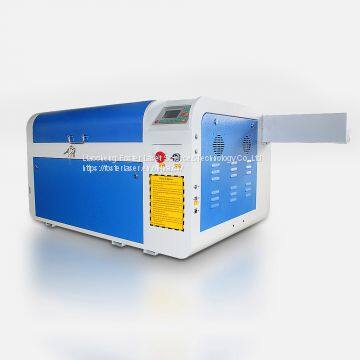

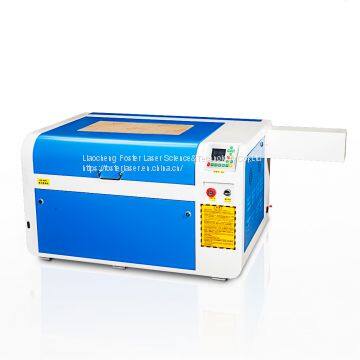

2018 Auto 3d Laser Engraving Machine 4060 Tombstone Engraving Machine With Sealed CO2 Laser Tube

2018 Auto 3d Laser Engraving Machine 4060 Tombstone Engraving Machine With Sealed CO2 Laser Tube thumbnail-1
2018 Auto 3d Laser Engraving Machine 4060 Tombstone Engraving Machine With Sealed CO2 Laser Tube thumbnail-2
2018 Auto 3d Laser Engraving Machine 4060 Tombstone Engraving Machine With Sealed CO2 Laser Tube thumbnail-3
2018 Auto 3d Laser Engraving Machine 4060 Tombstone Engraving Machine With Sealed CO2 Laser Tube thumbnail-4
2018 Auto 3d Laser Engraving Machine 4060 Tombstone Engraving Machine With Sealed CO2 Laser Tube thumbnail-5
2018 Auto 3d Laser Engraving Machine 4060 Tombstone Engraving Machine With Sealed CO2 Laser Tube photo-1
2018 Auto 3d Laser Engraving Machine 4060 Tombstone Engraving Machine With Sealed CO2 Laser Tube photo-2
2018 Auto 3d Laser Engraving Machine 4060 Tombstone Engraving Machine With Sealed CO2 Laser Tube photo-3
2018 Auto 3d Laser Engraving Machine 4060 Tombstone Engraving Machine With Sealed CO2 Laser Tube photo-4
2018 Auto 3d Laser Engraving Machine 4060 Tombstone Engraving Machine With Sealed CO2 Laser Tube photo-5
US$ 620 - 1200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
FST
Place of Origin:
China
Model Number:
4060
Contact Supplier Request Quote Chat Now
Liaocheng Foster Laser Science&Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Guangzhou/Shenzhen/Ningbo
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FST
Place of Origin China
Model Number 4060
Certification CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided Engineers available to service machinery overseas
Dimension(L*W*H) L1150*W850*H1000mm
Condition New
Graphic Format Supported Other, AI, BMP, DST, DXF, PLT, CDR
Cooling Mode Water Cooling
CNC or Not No
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type CO2
Engraving Speed 0-30000mm/min
Engraving Area 600*400mm

1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting

2. USB Interface, U-Flash Disk Supported, Can work without a PC.

3. Air Assist, Remove heat and combustible gases from the cutting surface.

4. Embedded Exhaust Fan, Easier intall, Safer transport.

5. Rotary Axis, Engrave any cylindrical object.

6. Cellular platform, Leave no chippings on working area.

7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.

8. Water Cooling and Protection System.

9. Lsser position.

10. Emergency Stop Button.

11. Larger Size, 400*600mm working area.

12. Lifting platform is electric control.

13. Drag - and - chain transmission line

14. Laser focal length: 5CM

Technical Parameters

Laser Power

50W, 60W, 80W, 100W

Supply Voltage

110/220V±10% ,50/60Hz

Max width

600mmx400mm

Working table

honeycomb

Up and down size

250mm

Table control mode

Manual/Electric

Max engraving Speed

1000mm/s

Max cutting speed

600mm/s

Locating Precision

Min shaping character

Character 2x2mm ,Letter 1x1mm

Resolution

0.0125mm

Cutting thickness

0-15mm

Control Configuration

DSP

Data transfer Interface

USB

System Environment

WINDOWS XP/Win7/8

Graphic file format

BMP,PLT,AI,CDR,DXF

256 Color separation output

Support

360 degree slope engraving

Support

Off line working

Support

Cooling Way

Water Cooling

Operating temperature

5°C -35°C

Water protecting sensor and alarm

Yes

Net Weight

120Kg

Machine dimension

1150x850x1000mm
