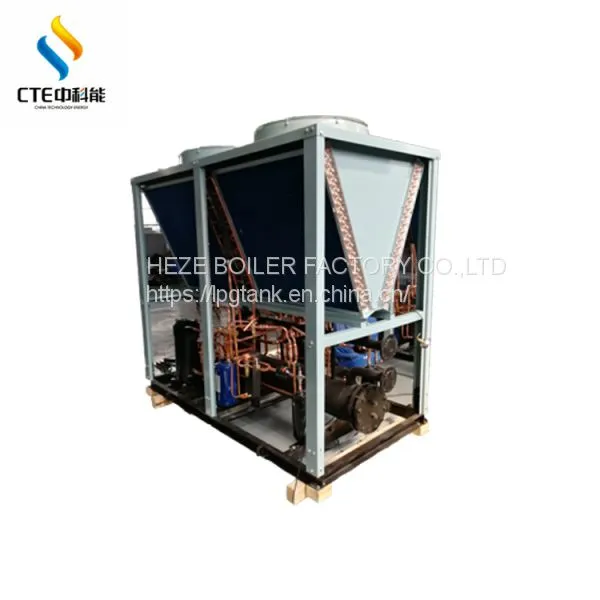

65kw scroll compressor air cooled chiller for bath center

65kw scroll compressor air cooled chiller for bath center

Air Cooled Chiller

CTEFM series modular air-cooled chiller heater unit is air-cooled heat source, water-based cooling heat medium, as a cold heat source-use integrated central air-conditioning equipment, to meet the air conditioning throughout the year and heating needs. Its high end expansion model heat recovery unit, can also meet the use of air conditioning while providing hot water, a multi-purpose machine. CTEFMD ultra-low temperature air cooled chiller heater unit adopts advanced jet booster technology to significantly increase the winter heating capacity of traditional air-cooled heat pump products. It can adapt to climatic conditions where the ambient temperature is not lower than -20 degree Celsius , and is used in cold areas such as North China and Northwest China area.

Features
1. Efficient and energy-saving, reliable operation
2. Grading start, run by station
3. Modular design, multiple unit combinations, meet more needs
4. Easy to use, flexible control
5. Run quiet
6. Intelligent centralized control
7. Multiple protection functions to ensure safe and stable operation of the unit

• Compressor high and low pressure protection

• Frequent start protection

• Compressor exhaust temperature protection

• Sensor Fault Protection

• Flow Switch Protection

• Frost Protection

• Over-temperature protection

• Over-current protection

• Power protection

• Phase sequence protection

• Pressure protection
  8 easy to install
  9. Compact and beautiful appearance

Remarks:

1. Condition of unit cooling capacity: ambient temperature dry bulb 35°C, wet bulb 24°C,
Evaporator inlet temperature 12 °C, outlet temperature 7 °C;
2. Heating condition of the unit: ambient temperature dry ball 7°C, wet ball 6°C,
The condenser inlet temperature is 40°C and the outlet temperature is 45°C.
