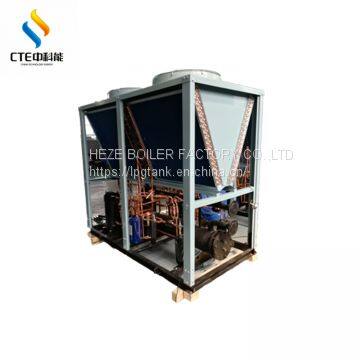

Low price high-tech 380v 3ph air cooled chiller module unit
Air Cooled Chiller
CTEFM series modular air-cooled chiller heater unit is air-cooled heat source, water-based cooling heat medium, as a cold heat source-use integrated central air-conditioning equipment, to meet the air conditioning throughout the year and heating needs. Its high end expansion model heat recovery unit, can also meet the use of air conditioning while providing hot water, a multi-purpose machine. CTEFMD ultra-low temperature air cooled chiller heater unit adopts advanced jet booster technology to significantly increase the winter heating capacity of traditional air-cooled heat pump products. It can adapt to climatic conditions where the ambient temperature is not lower than -20 degree Celsius , and is used in cold areas such as North China and Northwest China area.
Features
1. Efficient and energy-saving, reliable operation
2. Grading start, run by station
3. Modular design, multiple unit combinations, meet more needs
4. Easy to use, flexible control
5. Run quiet
6. Intelligent centralized control
7. Multiple protection functions to ensure safe and stable operation of the unit
Compressor high and low pressure protection
Frequent start protection
Compressor exhaust temperature protection
Sensor Fault Protection
Flow Switch Protection
Frost Protection
Over-temperature protection
Over-current protection
Power protection
Phase sequence protection
Pressure protection
8 easy to install
9. Compact and beautiful appearance
Unit Model |
CTEFMR35(D) |
CTEFMR65(D) |
||||
Cooling capacity |
kW |
32.5 |
65 |
|||
Ordinary |
Heating capacity |
kw |
35 |
|||
Ultra-low temperature |
Heating capacity |
kw |
36 |
40 |
||
Supply power |
3P 380V 50Hz |
|||||
total power input |
kW |
10.75 |
21.5 |
|||
Compressor |
type |
closed scroll compressor |
||||
Input power |
kW |
10.2 |
2x10.2 |
|||
capacity |
L |
3 |
2x3 |
|||
Refrigerant |
working fluid |
R22 |
||||
capacity |
kg |
8 |
2x8 |
|||
control method |
capillary
|
|||||
Condensing fan |
type |
Axial flow |
||||
quantity |
1 |
2 |
||||
power |
kW |
0.55 |
2x 0.55 |
|||
air volume |
m3/h |
14600 |
29200 |
|||
|
Cool & hot water
|
flow |
m3/h |
5.6 |
11.2 |
||
water side resistance |
kPa |
41~46 |
||||
nozzle spec |
DN |
40 |
50 |
|||
Outline size |
length |
mm |
1300 |
2100 |
||
width |
mm |
1100 |
1100 |
|||
height |
mm |
2000 |
2000 |
|||
unit weight |
Kg |
380 |
745 |
|||
noise |
d B（A） |
72 |
73 |
|||
Remarks:
1. Condition of unit cooling capacity: ambient temperature dry bulb 35°C, wet bulb 24°C,
Evaporator inlet temperature 12 °C, outlet temperature 7 °C;
2. Heating condition of the unit: ambient temperature dry ball 7°C, wet ball 6°C,
The condenser inlet temperature is 40°C and the outlet temperature is 45°C.
