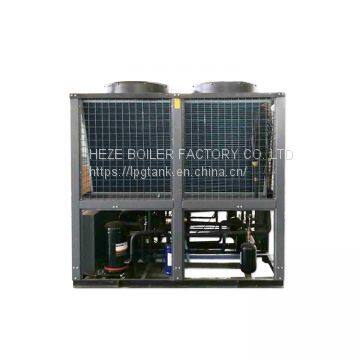

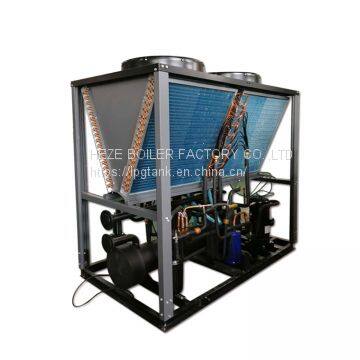

Rooftop package unit 65KW central air conditioner air cooling chiller
CTEFM series modular air-cooled chiller heater unit is air-cooled heat source, water-based cooling heat medium, as a cold heat source-use integrated central air-conditioning equipment, to meet the air conditioning throughout the year and heating needs. Its high end expansion model heat recovery unit, can also meet the use of air conditioning while providing hot water, a multi-purpose machine. CTEFMD ultra-low temperature air cooled chiller heater unit adopts advanced jet booster technology to significantly increase the winter heating capacity of traditional air-cooled heat pump products. It can adapt to climatic conditions where the ambient temperature is not lower than -20 degree Celsius , and is used in cold areas such as North China and Northwest China area.
Air Cooled Chiller Features
1. Efficient and energy-saving, reliable operation
2. Grading start, run by station
3. Modular design, multiple unit combinations, meet more needs
4. Easy to use, flexible control
5. Run quiet
6. Intelligent centralized control
7. Multiple protection functions to ensure safe and stable operation of the unit
l Compressor high and low pressure protection l Frequent start protection
l Compressor exhaust temperature protection l Sensor Fault Protection
l Flow Switch Protection l Frost Protection
l Over-temperature protection l Over-current protection
l Power protection l Phase sequence protection
l Pressure protection
8. easy to install
9.Compact and beautiful appearance
CTEFMR65 AIR COOLED WATER CHILLER PARAMETERS
Unit Model |
CTEFMR65D) |
||
Cooling capacity |
kW |
65 |
|
Ordinary |
Heating capacity |
kw |
68 |
Ultra-low temperature |
Heating capacity |
kw |
70 |
Supply power |
3P 380V 50Hz |
||
total power input |
kW |
21.5 |
|
Compressor |
type |
closed scroll compressor |
|
Input power |
kW |
2x10.2 |
|
capacity |
L |
3 |
|
Refrigerant |
working fluid |
R22 |
|
capacity |
kg |
2x8 |
|
control method |
Thermal expansion valve electronic expansion valve |
||
Condensing fan |
type |
Axial flow |
|
quantity |
2 |
||
power |
kW |
2x0.55 |
|
air volume |
m3/h |
29200 |
|
|
Cool & hot water
|
flow |
m3/h |
11.2 |
water side resistance |
kPa |
41~46 |
|
nozzle spec |
DN |
50 |
|
Outline size |
length |
mm |
2100 |
width |
mm |
1100 |
|
height |
mm |
2000 |
|
unit weight |
Kg |
745 |
|
noise |
d B(A) |
73 |
|
Remarks:
1. Condition of unit cooling capacity: ambient temperature dry bulb 35°C, wet bulb 24°C,
Evaporator inlet temperature 12 °C, outlet temperature 7 °C;
2. Heating condition of the unit: ambient temperature dry ball 7°C, wet ball 6°C,
The condenser inlet temperature is 40°C and the outlet temperature is 45°C.
Component of Air Cooled Chiller
The air - cooled ( hot ) water unit mainly consists of compressor , air side heat exchanger , expansion valve , auxiliary refrigeration accessory and electric control system .
Applicable places of 35kw to 130kw Air Cooled Chiller
widely used in hotels, shopping malls, office buildings, exhibition halls, airports, gymnasiums and other public facilities of the comfortable central air conditioning system, and can meet the different application requirements of the electronic, pharmaceutical, biological, textile, chemical, metallurgical, electric, mechanical and other industries.
