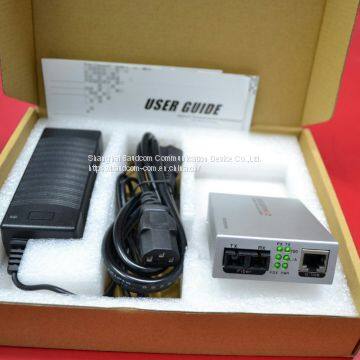

Single Port 10/100M POE Fiber Media Converter
US$ 15 - 35
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Baudcom
Place of Origin:
China
Model Number:
BD-100M-POE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
2 Fiber Ports 4 UTP Ports 10/100M Optical Media ConverterUS$ 30 - 50MOQ: 1 Unit -
Dual Fiber 2 10/100/1000M Ethernet Fiber Media ConverterUS$ 10 - 17MOQ: 1 Piece
-
Dual Fiber 10/100/1000M Ethernet Fiber Media ConverterUS$ 12 - 22MOQ: 1 Piece
-
Single Fiber WDM 10/100/1000M Ethernet Fiber Media ConverterUS$ 15 - 25MOQ: 1 Piece
-
10/100/1000M SFP Media ConverterUS$ 6 - 13MOQ: 1 Piece
Brand Name
Baudcom
Place of Origin
China
Model Number
BD-100M-POE
Description:
BD-100M-POE is a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a
Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.
Features:
- 10/100Base-TX UTP to 100Base-FX fiber media convertion
- IEEE802.3af PoE PSE compatible
- 9K bytes packet at cut-through mode
- Built-in AC/DC power supply
- Over-current protection
- choice of SC, BiDi or LC connectors for multimode and singlemode
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- 100Base-FX Optical interface:
- Connector: SC,FC or ST are optional
- Wavelength: 1310nm,1550nm or 850nm(can be chosen by customer)
- Optical fiber category:
- single-mode 8.3/125, 8.7/125, 9/125, 10/125um
- multi-mode 50/125, 62.5/125, 100/140um
- multi- mode connection: transmitting range can reach 5 kilometers as farthest;
- single-mode connection: transmitting range can reach 120 kilometers.
- 10/100Base-TX：Connector: UTP RJ45 connectorData Rates:10/100 Mbps (802.3 10Base-T/802.3u 100Base-T)100Mbps (100Base-FX)Power over Ethernet Output:Pin Assignment and Polarity:4/5 (V+),7/8 (V-)
Output Power: please refer to ordering information
Efficiency: 75% min
Short circuit protection: auto recovery
Over current protection: auto recovery
Optic Specification:
Fiber connector |
SC/ST |
SC |
SC |
SC |
type |
multimode |
Single mode |
Single mode |
Single mode |
wavelength |
850/1310nm |
1310nm |
1310nm |
1310nm |
Transmission distance |
2km |
25km |
40km |
60km |
TX send power(min) |
-19.0dBm |
-15dBm |
-9.0dBm |
-4.0dBm |
TX send power(max) |
-12.0dBm |
-9.0dBm |
-5.0dBm |
0dBm |
Receive sensitivity |
||||
Link Budget |
11.0dBm |
15.0dBm |
24.0dBm |
32.0dBm |
Dimension95mm(L)x70mm(W)x26mm(H)
Environment condition
Operating temperature: 0C~+55 C
Storage temperature: -20 C~+70 C
Relative temperature: 95%
Power supply
Input voltage:AC220V, AC100V~AC240V
Input frequency: 47 Hz to 63 Hz
Ordering information
| BD-100M-POE | POE media converter,PSE,48V,25W,10/100M,dual fiber,20km,power AC 220V |
| BD-100M-POE-A | POE media converter,PSE,56V，30W，10/100M,dual fiber,20km,power AC 220V |
