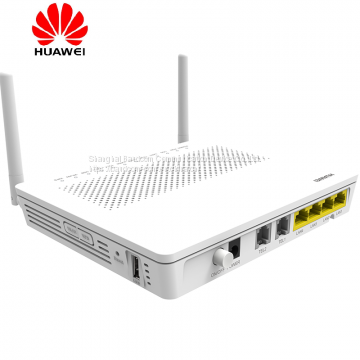

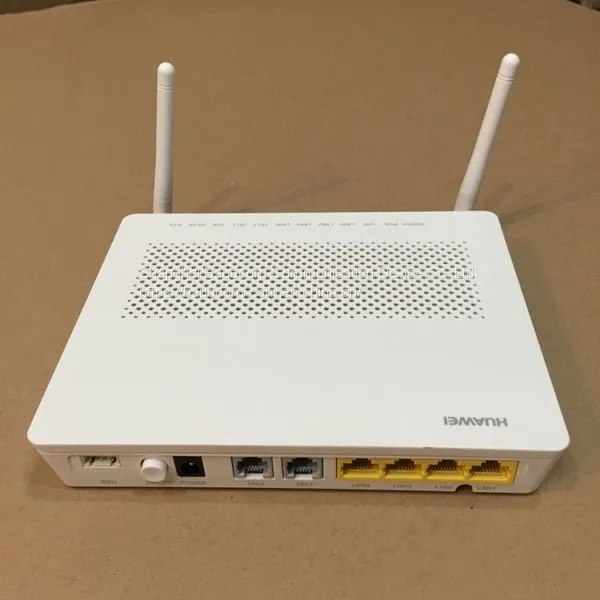

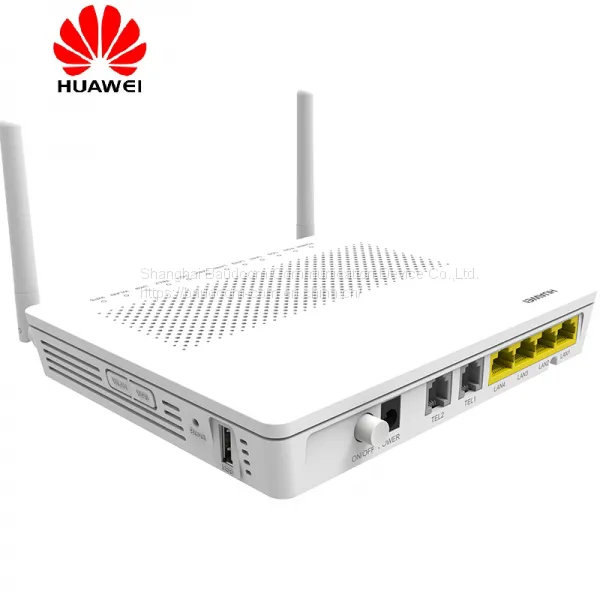

Huawei GPON ONT HG8245H 4GE+2POTs+WIFI

Name: Huawei GPON ONT HG8245H 4GE+2POTs+WIFI
Brand: HUAWEI
SKU: 158772876
Availability: InStock

US$ 60 - 80 MOQ: 1 Unit

Key Specifications

Brand Name:

HUAWEI

Place of Origin:

China

Model Number:

HG8245H

Shanghai Baudcom Communication Device Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

7 days

Brand Name HUAWEI

Place of Origin China

Model Number HG8245H

Description:

The HG8245H, an optical network terminal (ONT), is a high-end home gateway in FTTH solution.

By using the GPON technology, ultra-broadband access is provided for home and SOHO users.

The HG8245H provides two POTS ports, four GE auto-adapting Ethernet ports and one Wi-Fi port.

The HG8245H features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.

Therefore,the HG8245H provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

Specification:

Operating temperature	0°C to +40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100-240 V AC, 50-60 Hz
System power supply	11-14 V DC, 1A
Optical interface	1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Optical Wavelength	Tx 1310nm, Rx 1490nm
Optical interface	SC/UPC
RX sensitivity
WLAN	Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R
LAN interface	4*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Router throughput	Upstream: >390Mbps @ 1518bytes, Downstream: >390Mbps @ 1522bytes
POTS interface	2 FXS, RJ11 connectors
