PRODUCT NAME:

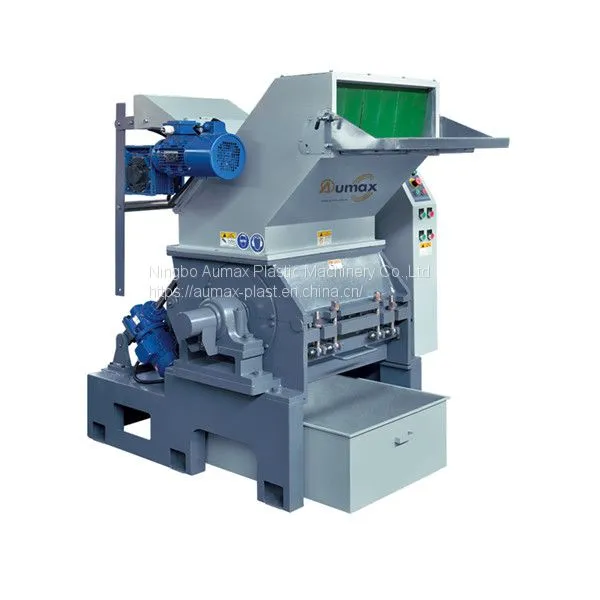

Plastic Film / Sheet Granulator
MODEL NO.:
AMG-600GP AMG-700GP AMG-800GP AMG-1000GP
Plastic Sheets Granulator Specification:
Name |
Plastic Film / Sheet Granulator / Crusher/ Grinder |
|||||
Model |
AMG-600GP |
AMG-700GP |
AMG-800GP |
AMG-1000GP |
||
Power |
kw |
15 |
18.5 |
22 |
37 |
|
Rotor Speed |
rpm |
560 |
560 |
560 |
560 |
|
Rotor Diameter |
mm |
360 |
360 |
360 |
460 |
|
Rotating Blades |
pcs |
6 |
6 |
6 |
6 |
|
Fixed Blades |
pcs |
2 |
2 |
4 |
4 |
|
Screen Diameter |
Ø10 |
Ø10 |
Ø12 |
Ø12 |
||
Chamber Size |
mm |
460x600 |
460x700 |
460x800 |
560x1000 |
|
Output |
kg/h |
400~700 |
500~800 |
600~900 |
800~1500 |
|
Noise |
dB(A) |
80~95 |
80~95 |
80~95 |
80~95 |
|
Magnet at Feeding Mouth |
O |
O |
O |
O |
||
Blower Conveying & Cyclone System |
O |
O |
O |
O |
||
Manual Box |
√ |
√ |
√ |
√ |
||
Weight |
kg |
1300 |
1500 |
1700 |
1900 |
|
Dimensions: | ||||||
L |
mm |
1660 |
1660 |
1660 |
1945 |
|
W |
mm |
1300 |
1400 |
1500 |
1760 |
|
H |
mm |
1855 |
1855 |
1855 |
2170 |
|
Please excuse for not note if some specifications of products are changed.
Note：
1)"√"is standard configuration," O " is optional to purchase.
2)The output capacity depends on the screen diameter, material thickness and feeding speed.
3) The screen mesh diameter can be made according to customers' request.
4)The running noise depends on varied shredding material.
5)The standard power supply is 3Ø 380V 50Hz. Other power supply is available.
Application:
AMG-GP Series plastic film granulators and plastic sheet crushers are specially designed to crush plastic films and sheets. The machine equipped with two feeding mouth. The auto-feeding mouth adopted speed adjustable gear motor, pneumatic cylinder and roller system for automatic feeding of film and thermoplastic sheet rolls. The manual feeding mouth are used to feed and crush different hard and soft plastic wastes in different shapes like PET Bottles, PP/PE films, PVC pipes and fittings, plastic blocks, plastic sheets, etc.
Our company hot sale Plastic Films Granulator, Plastic Sheets Granulator, Single Shaft Plastic Shredder, Plastic Shredder with good price. You will get high quality products and professional services
Features:
l SKD11 material blades and special designed blades structure insure high efficiency and performance
l Optimized designed bearings block keep dust away, with low running temperature for long life using
l V-shaped blades, Claw blades and Flat blades are optional for different plastic wastes
l Electric motor screw device for opening and closing cutting chamber to save manpower
l Separate structure design for cutting chamber and screen mesh, easy to clean and maintenance
l Safety switch to protect people, overload device to protect motor
l Fixed with shockproof pad to reduce vibration and noise.
