PRODUCT NAME:

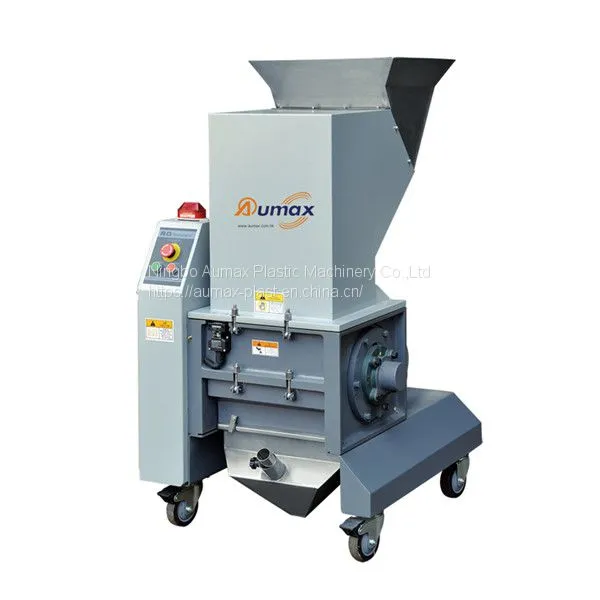

Medium-speed Granulator
MODEL NO.:
AMG-190M AMG-260M AMG-360M AMG-420M
Specification:
Name |
Medium Speed Granulator |
||||
Model |
AMG-190M |
AMG-260M |
AMG-360M |
AMG-420M |
|
Power |
kw |
1.5 |
2.2 |
3.0 |
4.0 |
Rotor Speed |
rpm |
375 |
375 |
315 |
315 |
Rotating Blades |
pcs |
3 |
3 |
3 |
3 |
Fixed Blades |
pcs |
2 |
2 |
2 |
2 |
Screen Dia. |
mm |
Φ6 |
Φ6 |
Φ6 |
Φ6 |
Cutting Chamber Size |
mm |
230x190 |
230x260 |
315x360 |
315x420 |
Output |
kg/h |
80~160 |
100~200 |
150~250 |
200~300 |
Noise |
dB(A) |
80~85 |
80~85 |
80~90 |
80~90 |
Blower Conveying |
√ |
√ |
√ |
√ |
|
Cyclone |
√ |
√ |
√ |
√ |
|
Proportional Valve |
O |
O |
O |
O |
|
Manual Box |
O |
O |
O |
O |
|
Weight |
kg |
162 |
178 |
247 |
295 |
Dimensions: | |||||
L |
mm |
660 |
660 |
760 |
760 |
W |
mm |
555 |
575 |
700 |
760 |
H |
mm |
1160 |
1160 |
1380 |
1380 |
Please excuse for not note if some specifications of products are changed!
Aumax® Granulating & Recycling including Plastic Pipes Granulator, Plastic Pallets Granulator, Plastic Granulator, Plastic Film Granulator, Plastic Sheet Granulator, Single Shaft Plastic Shredder, Heavy-duty Plastic Granulator, Low & Medium-speed Granulator, Powerful Granulator etc. Welcome to contact us
Note：
1)"√"is standard configuration; "O" is optional to purchase.
2) The maximum output capacity depends on screen diameter and material specific gravity, etc.
3) The noise depends on different material features and hardness.
4)The standard power supply is 3Ø 380V 50Hz. Other power supply is available.
Application:
AMG-M Series Middle Speed Granulators are designed for recycling of small plastic parts, molding sprues, plastic bottles, etc. The machine is suitable to crush material PP, PC, ABS, nylon, etc. The machine can be installed beside injection molding machine for instant recycling of material.
Our high quality Medium-speed Granulator with Low power, low noise, low dust. The Granulator fixed with wheels, easy to move. We will always provide excellent products and perfect services for the agencies and customers all over the world.
Features:
Low power, low noise, low dust.
SKD11 blades installed in an optimized structure to insure high efficiency.
Modularized and compact design, easy to clean and maintenance.
Safety switch to protect people, overload device to protect motor.
Fixed with wheels, easy to move.
