PRODUCT NAME:

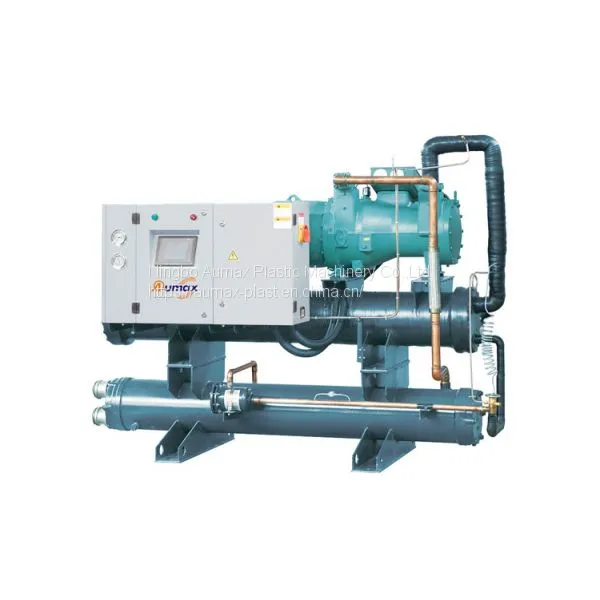

Screw Type Compressor Water-cooled Chiller
MODEL NO.:
AMC-40WS AMC-50WS AMC-60WS AMC-70WS AMC-80WS AMC-90WS AMC-110WS AMC-120WS AMC-150WS AMC-180WS AMC-200WS AMC-40WS-D AMC-50WS-D AMC-60WS-D AMC-70WS-D AMC-80WS-D AMC-90WS-D AMC-110WS-D AMC-120WS-D AMC-150WS-D AMC-180WS-D AMC-200WS-D
Screw-compressor Water Chiller specifications:
Name |
Screw Compressor Type Water Chiller Machine |
|||||||
Model |
AMC-40WS |
AMC-50WS |
RCMC-60W |
AMC-70WS |
AMC-80WS |
AMC-90WS |
||
Power resource |
- |
3Ø-380V-50HZ |
||||||
Chilling capacity |
kcal/h |
113500 |
141900 |
166000 |
191800 |
220200 |
272600 |
|
kw |
132 |
165 |
193 |
223 |
256 |
317 |
||
Consumption |
kw |
31 |
38 |
43 |
51 |
58 |
76 |
|
Operation current |
A |
54 |
66 |
75 |
87 |
96 |
123 |
|
Startup current |
A |
218D/411D D |
269D/508D D |
290D/485D D |
350D/585D D |
350D/585D D |
520D//801D D |
|
Capacity control |
% |
100-75-50-25-0 |
||||||
Compressor |
Type |
- |
Half-closed and double-screw type |
|||||
Quantity |
- |
1 |
||||||
Startup type |
- |
Divided winding starting |
||||||
Oil heater |
W |
200 |
300 |
|||||
Chilled oil |
Type |
- |
B320SH |
|||||
Filling quantity |
L |
9 |
15 |
22 |
||||
Refrigerant |
Type |
- |
R-22 |
|||||
Filling quantity |
KG |
21 |
26 |
30 |
35 |
40 |
50 |
|
Throttling |
- |
Thermostatic expansion valve |
||||||
Evaporator |
Type |
- |
Tube-in-shell high efficient heat exchanger |
|||||
Chiller water flow |
m³/h |
23 |
28 |
33 |
38 |
44 |
55 |
|
Pressure expense |
KPa |
54 |
54 |
54 |
57 |
57 |
57 |
|
Water pipe joint |
PT |
3" |
3" |
3" |
4" |
4" |
4" |
|
Condenser |
Type |
- |
Tube-in-shell high efficient heat exchanger |
|||||
Chilling water flow |
m³/h |
30 |
37 |
43 |
50 |
57 |
71 |
|
Pressure expense |
KPa |
54 |
54 |
57 |
57 |
59 |
59 |
|
Water pipe joint |
PT |
2-1/2" |
3" |
3" |
3" |
3" |
4" |
|
Protection device |
- |
High pressure switch, low pressure switch, Anti-freezing switch, fusible plug, compressor over-heat protection, motor over-heat protection, exhaust air over-heat protection, pump over-load protection, oil over-heat protection, phase reverse protection, voltage insecure, cooling water over-heat protection, chilled water flow protection, cooling water flow shortage protection, cooling tower over current protection, and so on. |
||||||
External dimensions |
L |
mm |
2175 |
2195 |
2245 |
2860 |
2860 |
2975 |
W |
mm |
935 |
935 |
935 |
1015 |
1015 |
1015 |
|
H |
mm |
1430 |
1500 |
1655 |
1710 |
1710 |
1965 |
|
A |
mm |
1100 |
1100 |
1100 |
1200 |
1200 |
1300 |
|
B |
mm |
690 |
690 |
690 |
790 |
790 |
790 |
|
C |
mm |
690 |
760 |
820 |
860 |
860 |
1000 |
|
D |
mm |
170 |
190 |
240 |
240 |
240 |
270 |
|
E |
mm |
100 |
100 |
120 |
120 |
120 |
160 |
|
F |
mm |
75 |
80 |
80 |
125 |
105 |
100 |
|
G |
mm |
240 |
240 |
230 |
475 |
475 |
400 |
|
I |
mm |
75 |
156 |
170 |
200 |
200 |
315 |
|
Net weight |
Kg |
1020 |
1060 |
1270 |
1370 |
1400 |
1870 |
|
Operating weight |
Kg |
1120 |
1180 |
1420 |
1550 |
1580 |
2100 |
|
Noise |
dB(A) |
74 |
76 |
78 |
||||
Name |
Screw Type Water Cooled Chilling Machine |
||||||
Model |
AMC-110WS |
AMC-120WS |
AMC-150WS |
AMC-180WS |
AMC-200WS |
||
Power resource |
- |
3Ø-380V-50HZ |
|||||
Chilling capacity |
kcal/h |
312200 |
360300 |
470400 |
541800 |
621800 |
|
kw |
363 |
419 |
547 |
630 |
723 |
||
Consumption |
kw |
80 |
90 |
121 |
136 |
156 |
|
Operation current |
A |
136 |
151 |
199 |
221 |
246 |
|
Startup current |
A |
612D/943D D |
665D/1023D D |
465Y/1442D |
586Y/1853D |
650Y/2029D |
|
Capacity control |
% |
100-75-50-25-0 |
|||||
Compressor |
Type |
- |
Half-closed and double-screw type |
||||
Quantity |
- |
1 |
|||||
Startup type |
- |
Divided winding starting |
Y-Δ |
||||
Oil heater |
W |
300 |
|||||
Chilled oil |
Type |
- |
B320SH |
||||
Filling quantity |
L |
22 |
28 |
||||
Refrigerant |
Type |
- |
R-22 |
||||
Filling quantity |
KG |
57 |
66 |
86 |
99 |
113 |
|
Throttling |
- |
Thermostatic expansion valve |
|||||
Evaporator |
Type |
- |
Tube-in-shell high efficient heat exchanger |
||||
Chiller water flow |
m³/h |
62 |
72 |
94 |
109 |
125 |
|
Pressure expense |
KPa |
59 |
59 |
62 |
62 |
67 |
|
Waterpipe joint |
PT |
4" |
4" |
5" |
6" |
6" |
|
Condenser |
Type |
- |
Tube-in-shell high efficient heat exchanger |
||||
Chilling water flow |
m³/h |
81 |
94 |
122 |
141 |
162 |
|
Pressure expense |
KPa |
62 |
62 |
65 |
67 |
67 |
|
Water pipe joint |
PT |
4" |
4" |
5" |
5" |
5" |
|
Protection device |
- |
High pressure switch, low pressure switch, Anti-freezing switch, fusible plug, compressor over-heat protection, motor over-heat protection, exhaust air over-heat protection, pump over-load protection, oil over-heat protection, phase reverse protection, voltage insecure, cooling water over-heat protection, chilled water flow protection, cooling water flow shortage protection, cooling tower over current protection, and so on. |
|||||
External dimensions |
L |
mm |
2985 |
3010 |
3510 |
3590 |
3595 |
W |
mm |
1025 |
1055 |
1105 |
1150 |
1175 |
|
H |
mm |
1975 |
1990 |
2140 |
2155 |
2195 |
|
A |
mm |
1300 |
1300 |
1600 |
1600 |
1600 |
|
B |
mm |
790 |
790 |
9000 |
900 |
980 |
|
C |
mm |
1010 |
1010 |
1120 |
1120 |
1160 |
|
D |
mm |
270 |
245 |
275 |
240 |
240 |
|
E |
mm |
160 |
175 |
175 |
240 |
240 |
|
F |
mm |
100 |
100 |
125 |
130 |
175 |
|
G |
mm |
405 |
405 |
550 |
540 |
540 |
|
I |
mm |
310 |
245 |
250 |
340 |
340 |
|
Net weight |
Kg |
1870 |
2070 |
2790 |
2910 |
3240 |
|
Operating weight |
Kg |
2220 |
2340 |
3120 |
3240 |
3760 |
|
Noise |
dB(A) |
80 |
82 |
||||
