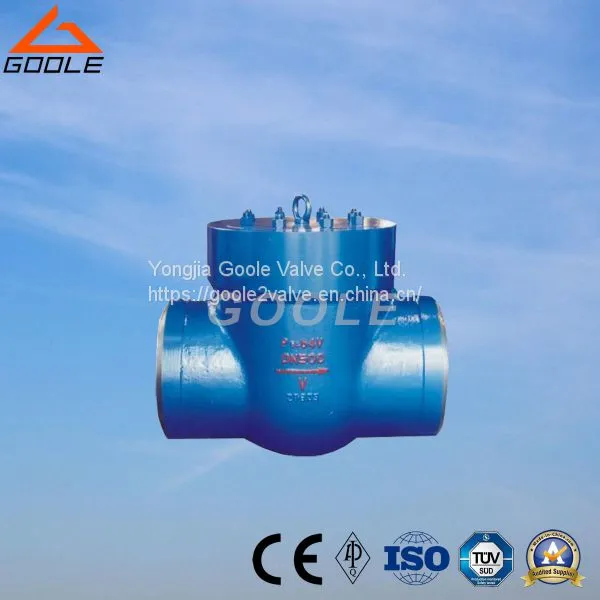

Help CenterPressure Seal Power Station Swing Check Valve (GAH64Y)
Related Products
-
Y Type Pressure Seal Power Station Globe Valve (GAJ65Y)US$ 2 - 50MOQ: 10 Pieces -
150lb/300lb API Flanged End High Performance Butterfly Valve (GAD343H)US$ 2 - 50MOQ: 10 Pieces
-
150lb/300lb API Wafer Lug Type Metal Sealing Butterfly Valve (GALD373H)US$ 2 - 50MOQ: 10 Pieces
-
150lb/300lb Stainless Steel Gear Operated Wafer Type Butterfly Valve (GAD373W)US$ 2 - 50MOQ: 10 Pieces
-
Manual Soft Seal Lug Type Butterfly Valve (GALD371X)US$ 2 - 50MOQ: 10 Pieces
Brief intro.
The middle part of pressure seal globe valve using pressure self-tightening structure,make sure the valve has good sealing performance under high pressure and high temperature conditions,usually,the sealing ring has two kinds of material,one is low carbon steel,the other is flexible graphite+SS 316,besides,the sealing surface is welding with hard alloy,after the welding is finished,the thickness of metal layer should be 3mm or more,therefore,it has advantages of wear-resistant,temperature-resistant and anti-corrosion,greatly prolong the service life.Both ends adopt welding structure,the dimensions of welding groove can be customized on clients' requirements.The medium can be high temperature and high pressure water,steam,oil products and super-heated steam.,etc,it's widely used for thermal power plant,petrochemical industry,metallurgy and other industrial sectors.
Main Parts and Materials.
| Part Name | Part Material | |||
| Body | WCB | WC1 | WC6 | WC9 |
| Seat | 25 | 15CrMoA | 12Cr1MoVA | |
| Disc | WCB | WC1 | WC6 | WC9 |
| Stem | WCB | WC1 | WC6 | WC9 |
| Cover | 25 | 15CrMoA | 12Cr1MoVA | |
| Pin | 1Cr17Ni2 | 12Cr1Mo1V1A | ||
| Sealing ring | Reinforced flexible graphite | Mild steel | ||
| Working Temp | ≤425°C | ≤450°C | ≤540°C | ≤570°C |
| Medium | Steam,Water.,etc. | |||
Main External Dimensions.
| PN | DN | d | L | H |
| 1500LB | 2 1/2" | 56 | 254 | 282 |
| 3" | 64 | 305 | 325 | |
| 4" | 84 | 406 | 350 | |
| 5" | 100 | 483 | 425 | |
| 6" | 126 | 559 | 400 | |
| 8" | 158 | 711 | 490 | |
| 10" | 200 | 864 | 540 | |
| 12" | 250 | 991 | 650 | |
| 14" | 280 | 1067 | 710 | |
| PN | DN | d | L | H |
| 2500LB | 3" | 54 | 368 | 297 |
| 4" | 70 | 457 | 385 | |
| 5" | 86 | 533 | 410 | |
| 6" | 104 | 610 | 455 | |
| 8" | 130 | 762 | 557 | |
| 10" | 162 | 914 | 615 | |
| 12" | 210 | 1041 | 715 | |
| 14" | 234 | 1118 | 790 | |
| 16" | 264 | 1245 | 815 | |
| 18" | 304 | 1397 | 815 |
