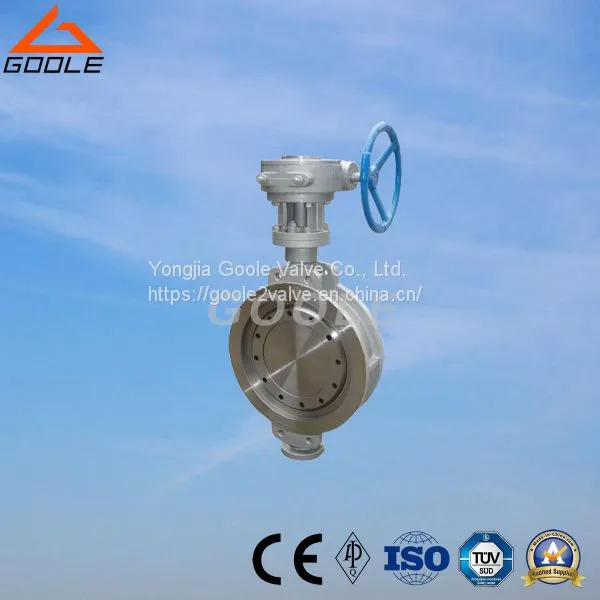

150lb/300lb Stainless Steel Gear Operated Wafer Type Butterfly Valve (GAD373W)
US$ 2 - 50
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
goole
Place of Origin:
China
Model Number:
GAD373W
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
45 days
Related Products
-
Manual Soft Seal Lug Type Butterfly Valve (GALD371X)US$ 2 - 50MOQ: 10 Pieces -
150lb Motorized/Electric Wafer Butterfly Valve (GAD971X)US$ 2 - 50MOQ: 10 Pieces
-
API 609 Wafer Lug Type Butterfly Valve (GAD71X)US$ 2 - 50MOQ: 10 Pieces
-
Pneumatic Soft Seal Flanged Butterfly Valve (GAD641X)US$ 2 - 50MOQ: 10 Pieces
-
Electric Soft Seal Flanged Butterfly Valve (GAD941X)US$ 2 - 50MOQ: 10 Pieces
Brand Name
goole
Place of Origin
China
Model Number
GAD373W
Material
Forged
Application
General
Structure
Butterfly
Standard or Nonstandard
Standard
Pressure
Medium Pressure
Power
Hydraulic
Port Size
Ningbo
Media
Gas
Temperature of Media
Medium Temperature
Specifications.
Design Standard:API 609.
Flange Connection Dimension:ANSI B16.5.
Structure length:ANSI B16.10.
Pressure test:API 598.
| Nominal diameter | DN(mm) | 2"~36" | |
| Nominal pressure | PN(MPa) | 150lb | 300lb |
| Test pressure(MPa) | Shell test | 3.0 | 7.5 |
| Seal test | 2.2 | 5.5 | |
| Applicable medium | Water,steam,oil,sea water.,etc. | ||
| Applicalbe temperature | -29~425°C | ||
Main External Dimensions and Weight.
150LB
| Size | L | H | Ho | D1 | D2 | M | Z-d | WT(kg) | ||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | |||
| 2" | 50 | 1.69 | 43 | 4.33 | 110 | 13.58 | 345 | 4.75 | 120.5 | 3.62 | 92 | M18 | 4-19 | 9 |
| 3" | 80 | 1.94 | 49 | 4.92 | 125 | 14.96 | 380 | 6.00 | 152.5 | 5.00 | 127 | M18 | 4-19 | 11 |
| 4" | 100 | 2.16 | 56 | 5.70 | 145 | 16.34 | 415 | 7.50 | 190.5 | 6.19 | 157 | M18 | 8-19 | 13 |
| 5" | 125 | 2.50 | 64 | 6.50 | 165 | 17.91 | 455 | 8.50 | 216 | 7.32 | 186 | M20 | 8-22 | 16 |
| 6" | 150 | 2.75 | 70 | 6.89 | 175 | 21.45 | 545 | 9.50 | 241.5 | 8.50 | 216 | M20 | 8-22 | 26 |
| 8" | 200 | 2.81 | 71 | 8.26 | 210 | 24.21 | 645 | 11.75 | 298.5 | 10.62 | 270 | M20 | 8-22 | 34 |
| 10" | 250 | 3.00 | 76 | 9.84 | 250 | 27.36 | 695 | 14.25 | 362 | 12.75 | 324 | M24 | 12-25 | 51 |
| 12" | 300 | 3.38 | 86 | 11.24 | 285 | 32.78 | 830 | 17.00 | 432 | 15.00 | 381 | M24 | 12-25 | 72 |
| 14" | 350 | 3.63 | 92 | 12.60 | 320 | 35.43 | 900 | 18.75 | 476 | 16.25 | 413 | M27 | 12-29 | 106 |
| 16" | 400 | 4.00 | 102 | 13.98 | 355 | 38.58 | 980 | 21.25 | 540 | 18.50 | 470 | M27 | 16-29 | 133 |
| 18" | 450 | 4.50 | 114 | 14.96 | 380 | 40.55 | 1030 | 22.75 | 578 | 21.00 | 533 | M30 | 16-32 | 176 |
| 20" | 500 | 5.00 | 127 | 16.34 | 415 | 43.70 | 1110 | 25.00 | 635 | 23.00 | 584 | M30 | 20-32 | 190 |
| 24" | 600 | 6.06 | 154 | 18.70 | 475 | 51.37 | 1305 | 29.50 | 749.5 | 27.25 | 692 | M33 | 20-35 | 394 |
| 30" | 750 | 6.50 | 165 | 22.38 | 580 | 60.03 | 1525 | 36.00 | 914 | 33.75 | 857 | M33 | 28-35 | 476 |
| 32" | 800 | 7.50 | 190 | 24.80 | 630 | 62.40 | 1585 | 38.50 | 978 | 36.00 | 914 | M39 | 28-41 | 618 |
| 36" | 900 | 8.00 | 203 | 26.77 | 680 | 69.48 | 1765 | 42.75 | 1085 | 40.25 | 1022 | M39 | 32-41 | 762 |
300LB
| Size | L | H | Ho | D1 | D2 | M | Z-d | WT(kg) | ||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | |||
| 2" | 50 | 1.69 | 43 | 4.33 | 110 | 13.58 | 345 | 5.00 | 127 | 3.62 | 92 | M18 | 8-19 | 9 |
| 3" | 80 | 1.94 | 49 | 4.92 | 125 | 14.96 | 380 | 6.63 | 168 | 5.00 | 127 | M20 | 8-22 | 12 |
| 4" | 100 | 2.19 | 56 | 5.70 | 145 | 16.34 | 415 | 7.87 | 200 | 6.19 | 157 | M20 | 8-22 | 13 |
| 5" | 125 | 2.50 | 64 | 6.50 | 165 | 17.91 | 455 | 9.25 | 235 | 7.32 | 186 | M20 | 8-22 | 18 |
| 6" | 150 | 2.75 | 70 | 6.89 | 175 | 21.45 | 545 | 10.63 | 270 | 8.50 | 216 | M20 | 12-22 | 28 |
| 8" | 200 | 2.81 | 71 | 8.26 | 210 | 24.21 | 645 | 13.00 | 330 | 10.62 | 270 | M24 | 12-26 | 37 |
| 10" | 250 | 3.00 | 76 | 9.84 | 250 | 27.36 | 695 | 15.24 | 387 | 12.75 | 324 | M27 | 16-29 | 56 |
| 12" | 300 | 3.38 | 86 | 11.24 | 285 | 22.78 | 830 | 17.76 | 451 | 15.00 | 381 | M30 | 16-32 | 79 |
| 14" | 350 | 3.63 | 92 | 12.60 | 320 | 35.43 | 900 | 20.24 | 514 | 16.25 | 413 | M30 | 20-32 | 116 |
| 16" | 400 | 4.00 | 102 | 13.98 | 355 | 38.58 | 980 | 12.50 | 571 | 18.50 | 470 | M33 | 20-35 | 146 |
| 18" | 450 | 4.50 | 114 | 14.96 | 380 | 40.55 | 1030 | 24.72 | 628 | 21.00 | 533 | M33 | 24-35 | 193 |
| 20" | 500 | 5.00 | 127 | 16.34 | 415 | 43.70 | 1110 | 27.00 | 686 | 23.00 | 584 | M33 | 24-35 | 209 |
| 24" | 600 | 6.06 | 154 | 18.70 | 475 | 51.37 | 1305 | 32.00 | 813 | 27.25 | 692 | M39 | 24-41 | 433 |
| 30" | 750 | 6.50 | 165 | 22.38 | 580 | 60.03 | 1525 | 39.25 | 997 | 33.75 | 857 | M45 | 28-49 | 523 |
| 36" | 900 | 8.00 | 203 | 26.77 | 680 | 69.48 | 1765 | 48.00 | 1168 | 40.25 | 1022 | M50 | 32-53 | 838 |
