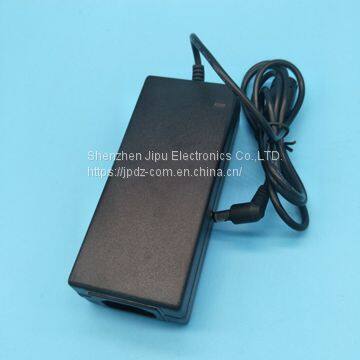

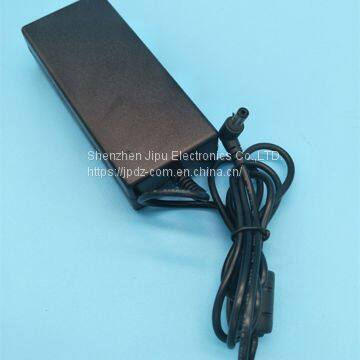

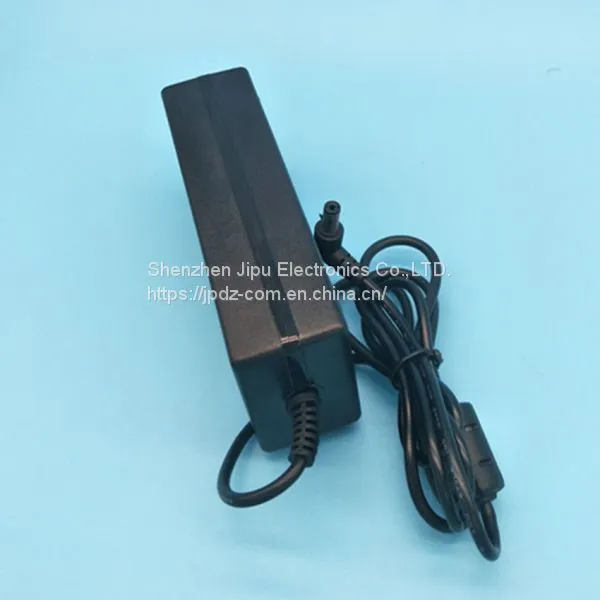

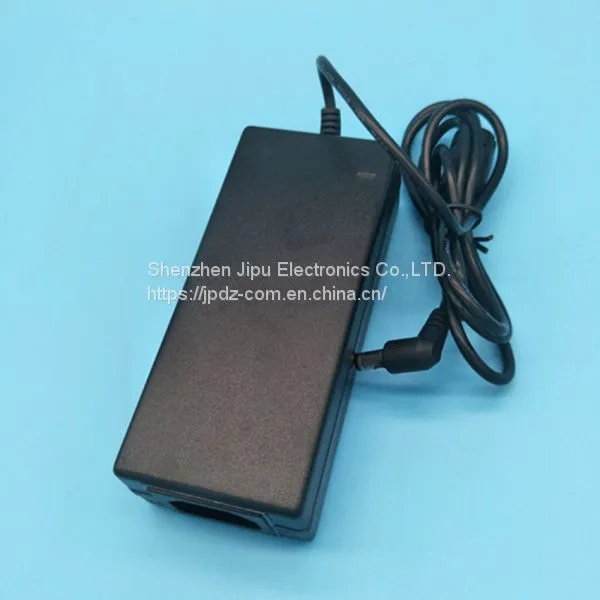

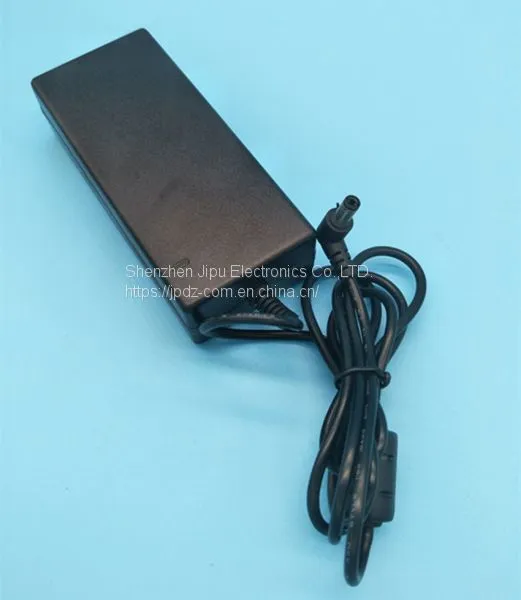

AC/DC 24V2.5A Swtching Power Supply Adpater for LED Light strips,CCTV Camera
Features:
Universal Input range: 90-264V/AC
Efficiency to 82%
Continuous short circuit protection
Over voltage/current protection
No load input power:
Leakage current:
UL60950-1/EN60950-1 approved
AC inlet: IEC320/C8/C14
Meets CEC and Erp level VI
(Output cable length: ≤1800mm, 18AWG)
Specification: | ||
Model |
JYH32-2402500 |
|
|
Output
|
Voltage |
24V |
Current |
2.5A |
|
Power (max.) |
60W |
|
Ripple & Noise (max.) |
100mVp-p |
|
Efficiency |
82% |
|
Voltage Tolerance |
±5.0% |
|
Line Regulation |
±1.0% |
|
Load Regultaion |
±1.0% |
|
Setup, Rise Time |
100ms / 115VAC at full load |
|
Hold Up Time |
30ms/115VAC at full load |
|
Input |
VOLTAGE RANGE |
90 ~ 264VAC |
Frequency Range |
47 ~ 63Hz |
|
AC Current(max.) |
1.5A/115VAC 1.2A/230VAC |
|
Inrush Current(max.) |
COLD START 30A/115VAC 60A/230VAC |
|
Protection |
Over Current |
120% ~ 150% type; TYPE: cut output reset: automatic recovery |
Over Voltage |
120% ~ 150% type; TYPE: cut output reset: automatic recovery |
|
Short Circuit |
TYPE: cut output reset: automatic recovery |
|
Environment |
Working Temp. |
0℃ ~ 40℃ |
Working Humidity |
20% ~ 80% R.H non-condensing |
|
Storage Temp., Humidity |
-20℃ ~ 70℃ 20% ~ 90% R.H |
|
Safety &EMC |
Dielectric Streng Th Hi-Pot |
Primary to secondary:3000Vac 10mA; Primary to shell:1500Vac 10mA; shell to secondary:1500Vac 10mA |
Insulation Resistance |
Primary to secondary, Primary to shell, shell to secondary; >100M Ohms / 500VDC |
|
Leakage Current |
0.25mA / 240VAC |
|
Safety Standards |
UL GS SAA KCC BSI PSE CCC |
|
EMC Standards |
CE EN55022B FCC |
|
Green Mode |
Noload Power Consumption Less Than 0.3W |
|
Others |
MTBF |
50000hrs min. MIL-HDBK-217F (25 ) |
Dimensions |
114*50*35.5mm (L*W*H) |
|
Weight(Net.) |
255g/pcs |
|
