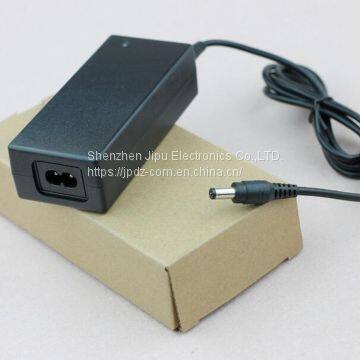

Help Center6V5A AC DC Adapters 30W Power Supplies With 100-240VAC for LCD Lighting Strips/LED Monitor
Related Products
-
5V5A Desktop Type Power Supply 25W Switching AC Adapter for LED Lighting/LCD Monitor/camera CCTVUS$ 4.2 - 4.5MOQ: 500 Pieces -
CUL List 5V 10A Switching Power Adapter 50W Power Supply for LED Light Strips,CCTV CameraUS$ 9.89 - 10.30MOQ: 500 Pieces
-
CUL List 24V2.5A Switching Power Adapter &Power Supply for LED Light Strips,CCTV Camera/LCD MonitorUS$ 9.89 - 10.30MOQ: 500 Pieces
-
12V 3A Desktop Power Supply 36W Adapter With UL/FCC/SAA/GS/CE&RoHSUS$ 4.79 - 5.02MOQ: 500 Pieces
-
CUL List 12V 120W 10A Switching Power Adapter &Power Supply for LED Light Strips,CCTV Camera/LCD MonitorUS$ 9.89 - 10.30MOQ: 500 Pieces
Feature:
· Universal AC input/full range
· 4-hour full aging testing
· Cost effective and reliable
· Level V compliant and class 2
· UL/FCC/GS/TUV/CE/PSE/KC/SAA fully safety approved
· Fully enclosed plastic case
· MTBF >50,000 hours
· Erp step2, CEC, MEPS compliant
· 1 year warranty
Specification: | ||
Model |
JYH32-0605000 |
|
|
Output
|
Voltage |
6V |
Current |
5.0A |
|
Power (max.) |
30W |
|
Ripple & Noise (max.) |
100mVp-p |
|
Efficiency |
80% |
|
Voltage Tolerance |
±5.0% |
|
Line Regulation |
±1.0% |
|
Load Regultaion |
±1.0% |
|
Setup, Rise Time |
100ms / 115VAC at full load |
|
Hold Up Time |
30ms/115VAC at full load |
|
Input |
VOLTAGE RANGE |
90 ~ 264VAC |
Frequency Range |
47 ~ 63Hz |
|
AC Current(max.) |
1.0A/115VAC 0.8A/230VAC |
|
Inrush Current(max.) |
COLD START 30A/115VAC 60A/230VAC |
|
Protection |
Over Current |
120% ~ 150% type; TYPE: cut output reset: automatic recovery |
Over Voltage |
120% ~ 150% type; TYPE: cut output reset: automatic recovery |
|
Short Circuit |
TYPE: cut output reset: automatic recovery |
|
Environment |
Working Temp. |
0℃ ~ 40℃ |
Working Humidity |
20% ~ 80% R.H non-condensing |
|
Storage Temp., Humidity |
-20℃ ~ 70℃ 20% ~ 90% R.H |
|
Safety &EMC |
Dielectric Streng Th Hi-Pot |
Primary to secondary:3000Vac 10mA; Primary to shell:1500Vac 10mA; shell to secondary:1500Vac 10mA |
Insulation Resistance |
Primary to secondary, Primary to shell, shell to secondary; >100M Ohms / 500VDC |
|
Leakage Current |
0.25mA / 240VAC |
|
Safety Standards |
UL GS SAA KCC BSI PSE CCC |
|
EMC Standards |
CE EN55022B FCC |
|
Green Mode |
Noload Power Consumption Less Than 0.3W |
|
Others |
MTBF |
50000hrs min. MIL-HDBK-217F (25 ) |
Dimensions |
114*50*35.5mm (L*W*H) |
|
Weight(Net.) |
345g/pcs |
|
