Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > 48v1.25A AC DC Adaptor 60W Power Supply for LED Lighting/camera Cctv/LCD Monitor

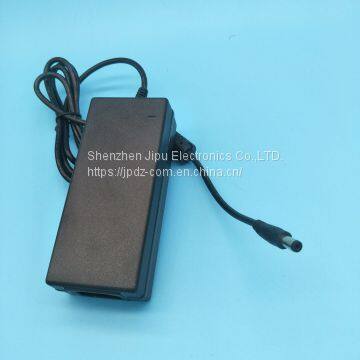

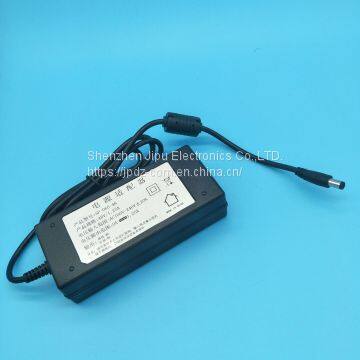

48v1.25A AC DC Adaptor 60W Power Supply for LED Lighting/camera Cctv/LCD Monitor

Shenzhen Jipu Electronics Co.,LTD.

US$ 5.7 - 5.9 MOQ: 500 Pieces

Key Specifications

Place of Origin:

China

Model Number:

JYH32-4801250

Usage:

Game Player

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Model Number JYH32-4801250

Usage Game Player

Connection Desktop

Output Type DC

Features:

Universal Input range: 90-264V/AC

Efficiency to 80%

Continuous short circuit protection

Over voltage/current protection

No load input power:<0.3W

Leakage current:<0.1mA

UL60950-1/EN60950-1 approved

AC inlet: IEC320/C8/C14

Meets CEC and Erp level VI

MODEL		JYH32-xxxyyyy	JYH32-xxxyyyy	JYH32-xxxyyyy	JYH32-xxxyyy
OUTPUT	VOLTAGE	5.0-8.9V	9.0-13.5V	13.6-17.9V	18.0-24.0V
	CURRENT	0 – 4.0A	0 – 3.0A	0 – 2.7A	0 – 2.0A
	POWER (max.)	60W	60W	60W	60W
	RIPPLE & NOISE (max.)	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	EFFICIENCY	80%	80%	80%	80%
	VOLTAGE TOLERANCE	±5.0%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±1.0%
	SETUP, RISE TIME	100ms / 115VAC at full load
	HOLD UP TIME	30ms/115VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC
	FREQUENCY RANGE	47 ~ 63Hz
	AC CURREN (max.)	1.5A/115VAC 1.2A/230VAC
	INRUSH CURRENT(max.)	COLD START 30A/115VAC 60A/230VAC
PROTECTION	OVER CURRENT	120% ~ 150% type; TYPE: cut output reset: automatic recovery
	OVER VOITAGE	120% ~ 150% type; TYPE: cut output reset: automatic recovery
	SHORT CIRCUIT	TYPE: cut output reset: automatic recovery
ENVIRONMENT	WORKING TEMP.	0℃ ~ 40℃
	WORKING HUMIDITY	20% ~ 80% R.H non-condensing
	STORAGE TEMP., HUMIDITY	-20℃ ~ 70℃ 20% ~ 90% R.H
SAFETY & EMC	DIELECTRIC STRENGTH Hi-Pot	Primary to secondary:3000Vac 10mA; Primary to shell:1500Vac 10mA; shell to secondary:1500Vac 10mA
	IUSULATION RESISTANCE	Primary to secondary, Primary to shell, shell to secondary; >100M Ohms / 500VDC
	LEAKAGE CURRENT	0.25mA / 240VAC
	SAFETY STANDARDS	UL GS SAA KCC BSI PSE CCC
	EMC STANDARDS	CE EN55022B FCC
	GREEN MODE	Noload Power Consumption Less Than 0.3W
OTHERS	MTBF	50000hrs min. MIL-HDBK-217F (25 )
	DIMENSION	1205232mm (LWH)
	WEIGHT	350g/pcs
