. Applications

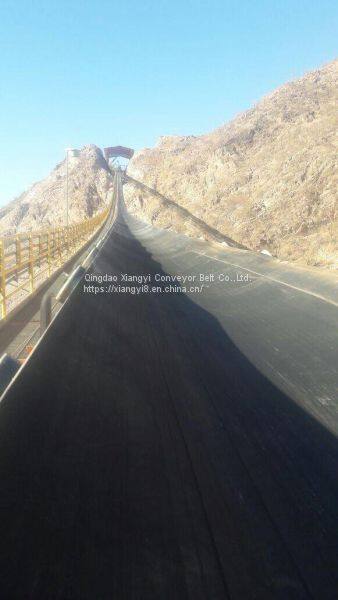

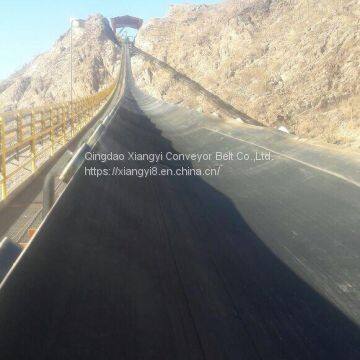

It is applicable to high-angle transportation with a maximum angle of 90.
2. Features
1)Space-saving
Carrying material at large angle, Max. Angle is 90
2)Good handling capacity
Larger transportation break section, stronger carrying capacity.
3)No sidewall
Partial tear is avoided without sidewall cleat
4)It is allowable to use small roller
Even if the use of roller in traditional size is OK
5)For the base belt is made of special core fabric, enhanced fabric, the anti-broken capacity of the conveyor belt is greatly strengthened
6)Hot vulcanize sidewalls and cleats with base belts, ensuring the large adhesive strength
Fabric |
EP-100 |
EP-150 |
EP-200 |
EP-250 |
EP-300 |
EP-400 |
|
Cloth thickness (mm) |
1.10 |
1.15 |
1.2 |
1.3 |
1.4 |
1.5 |
|
Longitudinal full thickness tensile strength (KN/m) |
3 plies |
300 |
450 |
600 |
750 |
900 |
1200 |
4 plies |
400 |
600 |
800 |
1000 |
1200 |
1600 |
|
5 plies |
500 |
750 |
1000 |
1250 |
1500 |
2000 |
|
6 plies |
600 |
900 |
1200 |
1500 |
1800 |
2400 |
|
7 plies |
700 |
1050 |
1400 |
1750 |
2100 |
2800 |
|
8plies |
800 |
1200 |
1600 |
2000 |
2400 |
3200 |
|
Fabric adhesion (N/mm) |
> =4.5 |
||||||
Longitudinal elongation |
|||||||
Width (mm) |
400~2600 |
||||||
Rubber thickness (mm) |
top |
1.5~8 |
|||||
bottom |
0~4.5 |
||||||
Length/Roll (m) |
|||||||
