0.5-12mm |
|
Width |
≤3000mm |
Material |
PVC/PU/PVK |
Color |
Green, white, petrol green, black, grey, dark grey, dark green, sky blue, orange, yellow, transparent, etc. |
Pattern |
Smooth, diamond, saw tooth, both way saw tooth, rough top, matt, squire rough top, stripe, dot, lozenge, checker, golf, wave rough top, herringbone, treadmill, mini-grip, crescent, tape, majiang, solid-woven, sort tooth, etc. |
No. of Plies |
1ply, 2plies, 3plies, 4plies, and so on |
Coating's Feature |
Antistatic, thicker, harder, deeper, softer, fire-resistant, oil-resitant, cold-resistant, etc. |
Fabric's Feature |
Flexible, kevlai, felt, low-noise, jogger, cotton |

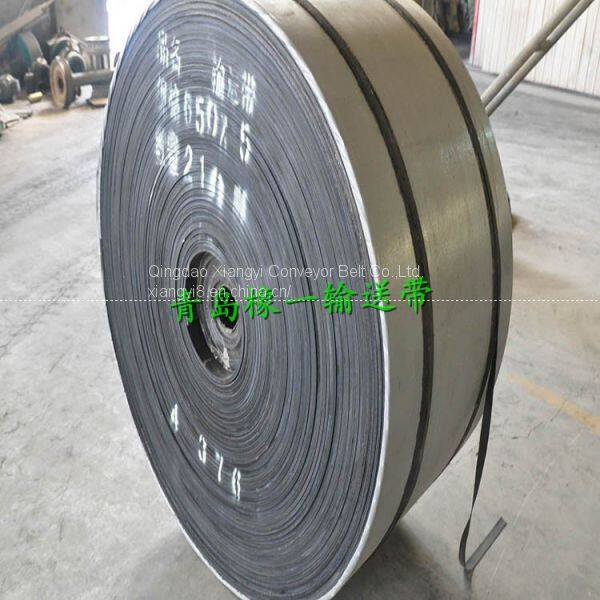

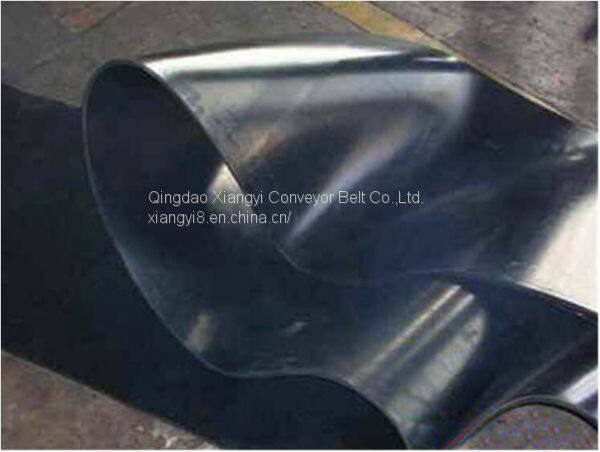

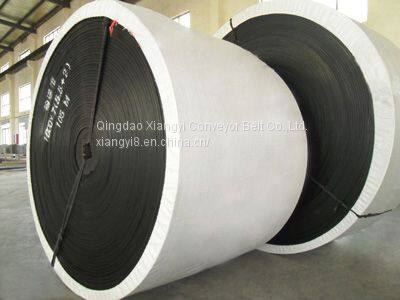

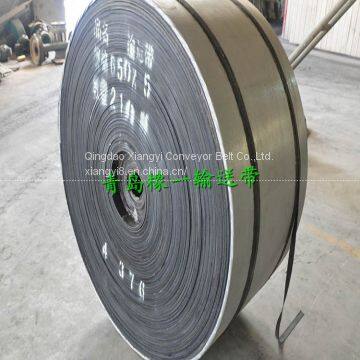

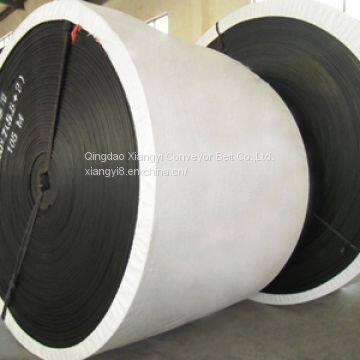

Details of Oil resistant conveyor belt manufacturer
Acid/ Alkali resistant conveyor belt is suitable for the acid and alkali contact condition, eg phosphoric fertilizer, abstracts salt from sea water The covering layer rubber is the mixture of rubber and plastic and filled with acid resistant and alkali resistant inert materials, which is much better than LDR acid and alkali resistant conveyer belt. The framework material is EP canvas, is more reliable and more alkali resistant and the cotton canvas core belt. Generally it is made into dng shaped.
The covering rubber layer of the oil resistant conveyor belt uses the NBR rubber with high content of acrylonitrile and uses cotton, nylon or EP as the stong layer, which is suitable for transferring oily materials or some kinds of oily condition(excluding fuel and solvent oil).
It has the advantage of Iow changing rate of volume, high intensity conservation rate, wide range of use.
Characteristics:
Oil resistant conveyor belt carries parts and components coated with machine oil, heavy-oil treated coal in cooking plants and electric power generating plants, soybean draff, fish meat and other oily materials. Materials containing nonpolar organic solvents and fuel. Oil resistant conveyor belt compounded of oil resistant synthetic rubber with good resistance to the damaging effects encountered when conveying oil contaminated or treated materials. Overlay glue is NBR which has good oil resistance According to consumer's ordering we choose strengthen material.
Type |
Break the intensity /Mpa |
Break extension rate /% |
Wearing and tearing /mm3 |
LO |
≥14.0 |
≥350 |
≤200 |
DO |
≥16.0 |
≥350 |
≤160 |
Notes: | |||
LO--Oily conveyer belt under the general condition; | |||
DO--Conveyer belt under the shock resistant and oily condition. | |||
|
Serial number |
Experimental condition in soaking the liquidm |
Rate of change of the volume /%≤ |
|||
|
Oil number in GB /T1690 |
Soaking temperature /°C |
Soaking time /h |
LO |
DO |
|
1 |
Oil No.2 |
70±2 |
70- |
20 |
-5 |
2 |
Oil No.3 |
70±2 |
70- |
50 |
5 |
3 |
Oil No.3 |
100±2 |
22±0.25 |
50 |
5 |
Notes:one of oil proof testing is ok. | |||||
Qingdao Xiangyi Conveyor Belt Co.,Ltd. is specialized in the production and sales of rubber conveyor belts, belt conveyor machines. The company focuses on equipments- investment and brand-building since its foundation . And it has become a modern conveyor belt plant in Qingdao,All kinds of rubber conveyor belts, conveyor machinery and accessories , which are independently developed, designed, manufactured by ourselves, are widely used in domestic metallurgy, power plants, ports, coal, cement, building materials and other large enterprises. We can also design and produce the conveyor belts and accessories with different specifications and usage as per the customer requirement .
The Series Xiangyi products produced by us including the belows :
wavy raised edge conveyer belt,steel cord conveyor belt, steel elevate conveyor belt, retardant conveyor belt (PVC, PVG); Common purpose fabric conveyor belt: cotton (CC-56) conveyor belt, nylon (NN)conveyor belt, polyester (EP) conveyor belt; Special purpose fabric conveyor belt: high temperature resistant conveyor belt, heat resistant conveyor belt, metal mesh core ignition-resistant conveyor belt, cold resistant conveyor belt, oil resistant conveyor belt, acid and alkali resistant conveyor belt, corrosion-resistant conveyor belt, wear-resistant conveyor belt; herringbone pattern conveyor belt, a character type pattern conveyor, electronic scales conveyor belt, pitting conveyor belt, Shot blasting machine track (Q326 series), rubber plate; light conveyor belt: PVC conveyor belt, PU conveyor belt, and other products.
