EP Conveyor Belt,rubber Belt,China Conveyor Belt,EP300

EP Conveyor Belt,rubber Belt,China Conveyor Belt,EP300 thumbnail-1
EP Conveyor Belt,rubber Belt,China Conveyor Belt,EP300 thumbnail-2
EP Conveyor Belt,rubber Belt,China Conveyor Belt,EP300 thumbnail-3
EP Conveyor Belt,rubber Belt,China Conveyor Belt,EP300 thumbnail-4
EP Conveyor Belt,rubber Belt,China Conveyor Belt,EP300 thumbnail-5
EP Conveyor Belt,rubber Belt,China Conveyor Belt,EP300 photo-1

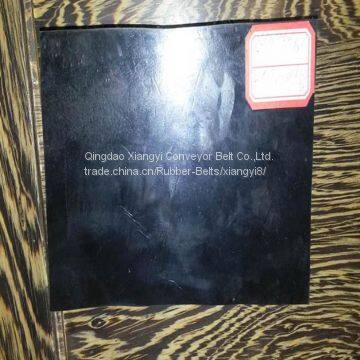

EP Conveyor Belt,rubber Belt,China Conveyor Belt,EP300 photo-2

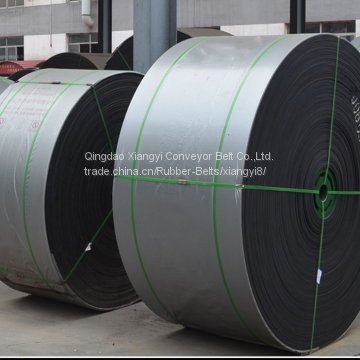

EP Conveyor Belt,rubber Belt,China Conveyor Belt,EP300 photo-3

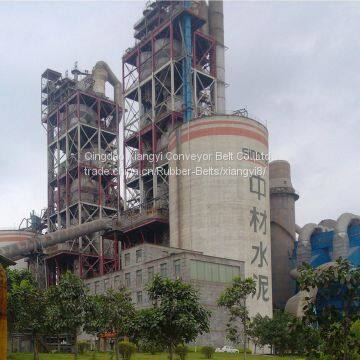

EP Conveyor Belt,rubber Belt,China Conveyor Belt,EP300 photo-4
EP Conveyor Belt,rubber Belt,China Conveyor Belt,EP300 photo-5
US$ 10 - 10000 MOQ: 10 Meters
Key Specifications
Get Latest Price
Brand Name:
XiangYi
Place of Origin:
China
Model Number:
EP belt
Contact Supplier Request Quote Chat Now
Qingdao Xiangyi Conveyor Belt Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XiangYi
Place of Origin China
Model Number EP belt

Fabric

EP-100

EP-150

EP-200

EP-250

EP-300

EP-400

Cloth thickness (mm)

1.10

1.15

1.2

1.3

1.4

1.5

Longitudinal full   thickness  tensile strength (KN/m)

3 plies

300

450

600

750

900

1200

4 plies

400

600

800

1000

1200

1600

5 plies

500

750

1000

1250

1500

2000

6 plies

600

900

1200

1500

1800

2400

7 plies

700

1050

1400

1750

2100

2800

8plies

800

1200

1600

2000

2400

3200

Fabric adhesion (N/mm)

> =4.5

Longitudinal elongation

Width (mm)

­ ­ ­ 400~2600

Rubber thickness (mm)

top

1.5~8

bottom

0~4.5

Length/Roll (m)





Product Description
    EP conveyor belt uses polyester canvas as carcass with certain top and cover rubber.
    The belt body is light and thin, with characteristics of high tensile strength, moisture resistant, fatigue resistant, impact reistant, excellent trough ability, low elongation, good thermal stability etc, becoming the developing trend of textile conveyor belt.

    Due to excellent performence, EP conveyor belt is widely used in harsh condition of long-distance, heavy-load, high-chemical corrosive etc, especially in humid conditions.

In addition to general use conveyor belt, we also have oil-resistant conveyor belt, acid/alkali conveyor belt, cold-resistant conveyor belt, anti-static electricity conveyor belt, etc.

Polyester conveyor belt
Brief introductions:
Polyester conveyor belts also called EP conveyor belts, whose tension resistant body is canvas woven  by polyester in warp and polyamine
 in weft. The belts have the characteristics of low elongation in warp and good trough ability in weft, good water resistance, good wet stre-
ngth. It is suitable for medium, long distance and heavy-load transportation of materials. Because of the high initial modulus of polyester,
the belts can choose a relative low safety factor.
Product features:
The features of  Polyester conveyor belt:
1. High strength, thin belt body, light weight
2. Framework material is EP rubber canvas
3. Soft body, good trough-ability, good elasticity
4. Good shock resistance, good wear resistance, good corrosion resistance
5. Adapt to the large capacity, fast speed and the medium-long distance transportation of materials
6. Smooth operation, never lock
Usage:
It is suitable for delivering material in medium-long distance, high capacity, high speed. Polyester conveyor belt (EP conveyor belt) is widely used in coal, mining, port, metallurgy, electric
power, chemical industry .
Standards:
GB/T7984-2001, DIN22102,BS490, AS1332, RMA,JISK6322, SABS1173 etc.


  Specification and technical data of muti-poly polyester conveyor belt


  Fabric type


  Fabric structure


  Fabric
   specs


  Ply
  thickness
  (mm/p)


  Strength series(N/mm)


  Cover Thickness(mm)


  Width
  mm


  Length
  m


  Warp


  Weft


  2ply


  3ply


  4ply


  5ply


  6ply


  Upper


  Lower


  Polyester
  (EP)


  Polyester


  Polyamine


  EP-80


  0.80


  160


  240


  320


  400


  480


  2.0-8.0


  0-4.5


  400-1600


  ≤300


  EP-100


  0.80


  200


  300


  400


  500


  600


  EP-125


  0.85


  250


  375


  500


  625


  750


  EP-150


  0.90


  300


  450


  600


  750


  900


  EP-160


  0.90


  320


  480


  640


  800


  960


  EP-200


  1.05


  400


  600


  800


  1000


  1200


  2.0-10.0


  0-6.0


  500-1600


  EP-250


  1.25


  500


  750


  1000


  1250


  1500


  EP-300


  1.35


  600


  900


  1200


  1500


  1800


  EP-350


  1.50


  -


  1050


  1400


  1750


  2100


  3.0-10.0


  0-6.0


  600-1600


  EP-400


  1.80


  -


  -


  1600


  2000


  2400


  EP-500


  2.00


  -


  -


  2000


  2500


  3000


  Adhesion and elongation of the belt


  Belt carcass


  Adhesive strength


  Elongation


  Between plies
  N/mm


  Between rubber and carcass(N/mm)


  Longitudinal
  elongation at break
  %≥


  Longitudinal
  elongation at reference load
  %≥


  Rubber
  thickness≤1.5mm


  Rubber
  thickness>1.5mm



  EP canvas


  ≥4.5


  ≥3.2


  ≥3.5


  10


  4


Product Tags: sidewall belt , rubber belt , china belt , EP100 , EP200 , EP300 , NN100 , NN150 , NN200
