70M range 4~20mA guided wave radar level transmitter sensor

FOB Price

US$ 570 - 900 / Piece

1 Piece(Min. Order)

Port China
Payment TermsT/T L/C Credit Card PayPal Other Cash Escrow
Delivery Detail10 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yunyi		Place of Origin	China
Model Number	YD322-C

Product Description

70M range 4~20mA radar level sensor made in china

Description 20G Radar level meter

Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).

Datum measurement: Screw thread bottom or the sealing surface of the flange.

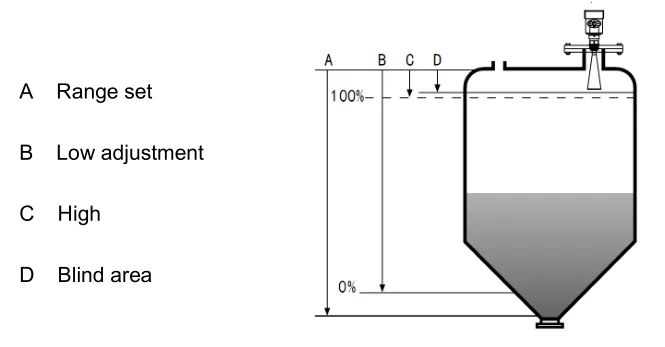

Note: Make sure the radar level meter the highest level cannot enter the measuring blind
area (Figure D shown below).

Features 26G radar level meter

Features

1. Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
2. Almost no corrosion, bubble effect; almost not affected by water vapor in theatmosphere, the temperature and pressure changes.
3.Serious dust environment on the high level meter work has little effect.
4. A shorter wavelength, the reflection of solid surface inclination is better.
5. Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
6. The measuring range is smaller, for a measurement will yield good results.
7. High signal-to-noise ratio, the level fluctuation state can obtain better performance.
8. High frequency, measurement of solid and low dielectric constant of the best choice.

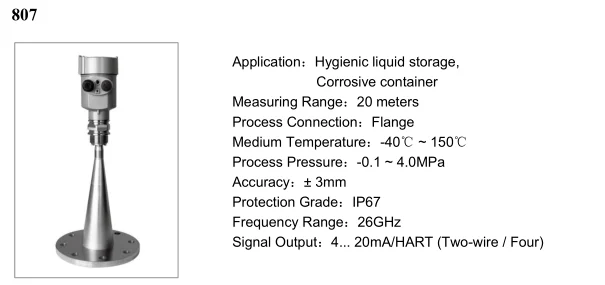

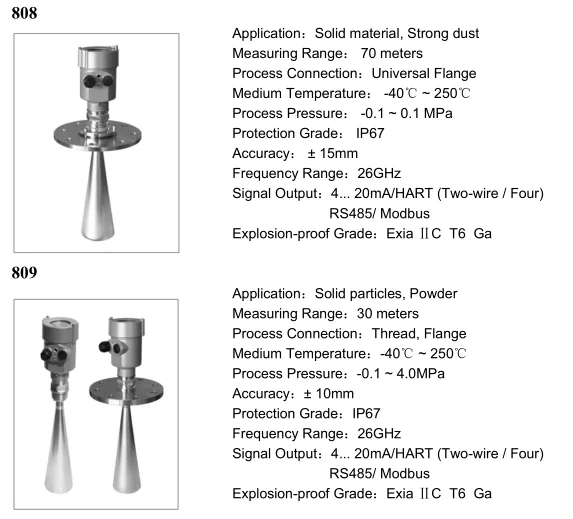

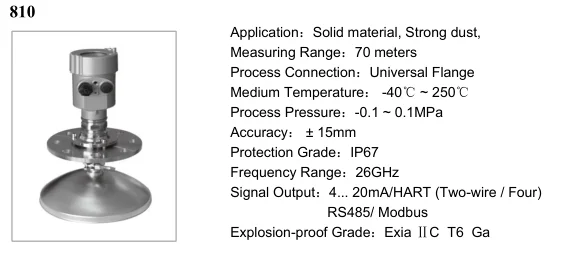

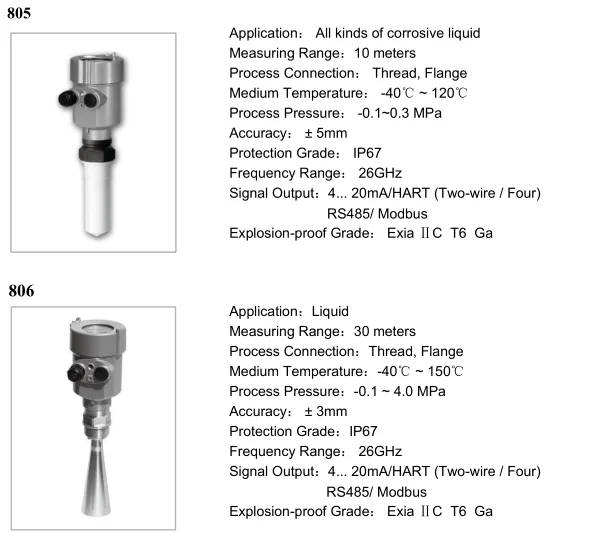

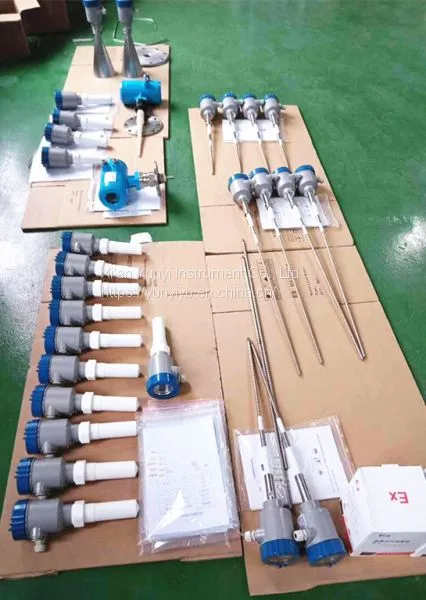

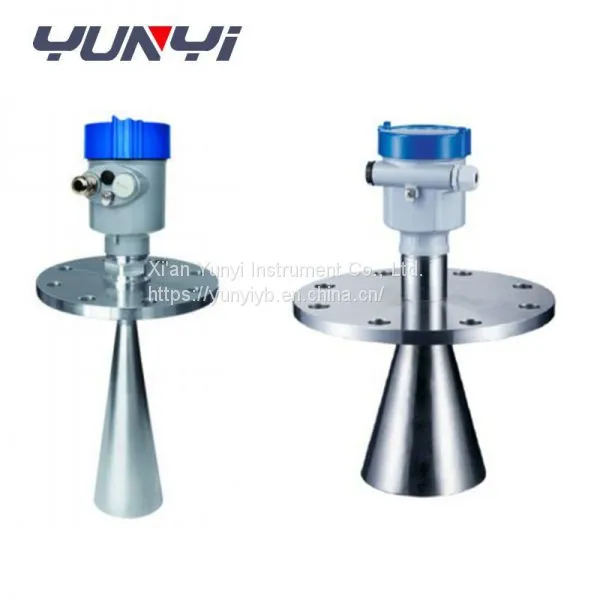

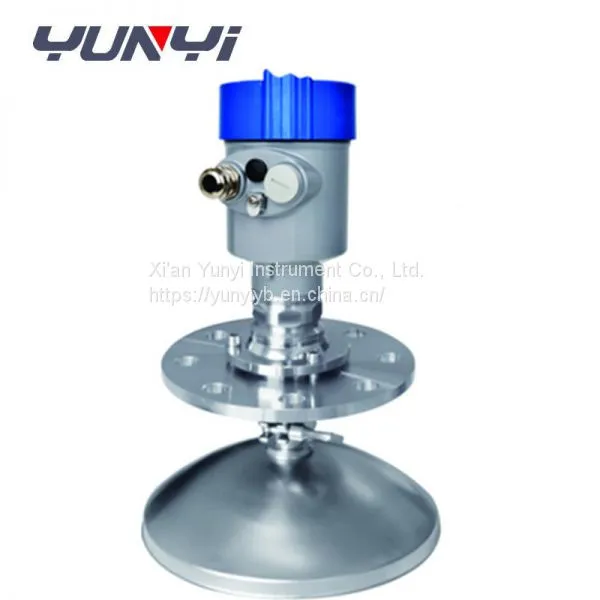

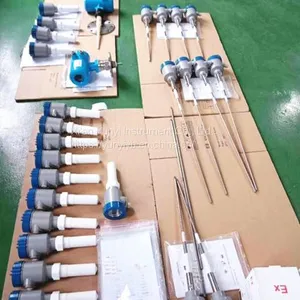

Detailed Images Radar level meter

Specification Radar level meter

Range: 70 meters

Accuracy:+/-15MM
Temperature: -40~80℃,-40~130℃,-60~250℃,-60~400℃
Pressure: -0.1--4MPA
Connection: thread flange,Universal joint
Output: 4~20mA /Hart/M0dbus
Power supply: 24VDC / 220VAC
