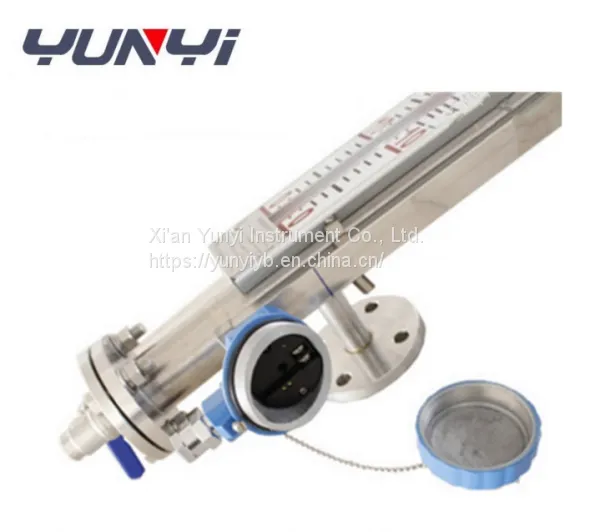

Help CenterMagnetic 4-20 mA Hydrostatic Flap Float Level Transmitter
Related Products
-
Submersible Level Transmitter Level Gauge Water Level Sensor 0 5vUS$ 40 - 75MOQ: 1 Piece -
0~5v Submersible Water Fluid Level Transmitter Sensor InstrumentsUS$ 40 - 75MOQ: 1 Piece
-
Non Contact Liquid Radar Level Sensor MeasurementUS$ 900 - 1400MOQ: 1 Piece
-
Non Contact Wireless Liquid Radar Level Switch SensorUS$ 900 - 1400MOQ: 1 Piece
-
Fluid Level Measurement Radar Level TransmitterUS$ 900 - 1400MOQ: 1 Piece
Magnetic flap float level gauge is a float-type metal tube-based on-site indication type level gauge, the series can be high Sealed, leak-proof, safe and reliable measurement of liquid level in high temperature, high pressure, high viscosity, strong corrosive conditions, all Process can be done without blind spots, eye-catching display, read intuitive and clear, coupled with the liquid level alarm switch, the upper and lower limits of liquid level or boundary bit alarm and automatic control, coupled with remote transmitter, the liquid level sector Bit field information into 4-20mA standard signal output, remote detection, indication, control, recording and other functions. The level gauge is widely used in the power, petroleum, chemical, metallurgy, environment, food, paper and other industries in the production of reserves and other processes in a variety of pressure, open storage liquid level measurement and control equipment.

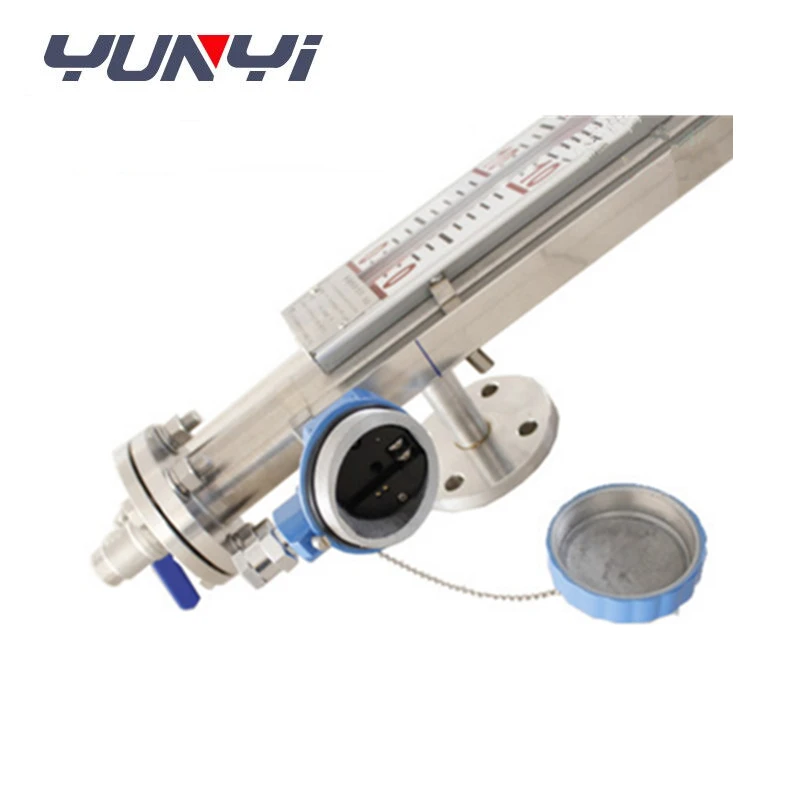

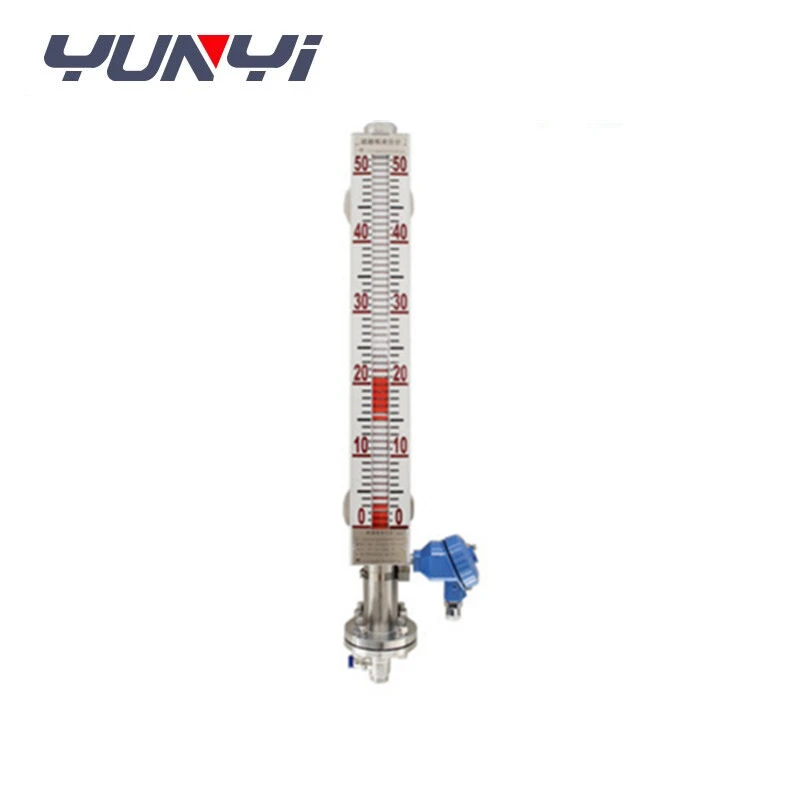

Detailed Images level gauge magnetic
Specification level gauge magnetic
Range |
300~8000mm Other sizes can be customized |
|
Pressure |
0~2.5MPa 0~4.0MPa |
0~6.0MPa Other pressure range can be customized |
Working Temperature |
-20~350℃ |
|
Medium Density |
≥0.5g/cm3 |
|
The proportion of bad sectors |
≥0.15g/cm3 |
|
Indicate error |
±10mm |
|
The main tube specifications |
Φ57*3mm High pressure can be customized |
|
Flange standard |
HGT20592-2009(Can be customized according to user) |
|
Features level gauge magnetic
Diaphragm materials optional different acid material
Super performance, use to measure pressure, differential pressure and level..
Accuracy: ±0.075%~±0.1%F.S/±0.2%F.S
Stability: ≤0.2%
Standard 4~20mA,RS-485 communication interface
Support upgrade of basic scene control technique
Little temperature effect
Little static effect
Overload can reach 2 times
Application
Compatible with 316LSS,noncorrosive liquids.
Shipping and aviation industry.
Hydraulic pressure and pneumatic control system
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
Select Guide level gauge magnetic
Turn column magnetic float level gauge | ||||||||||||
1 |
Side-mounted |
|||||||||||
2 |
Top-mounted |
|||||||||||
1 |
1Cr18Ni9Ti |
|||||||||||
2 |
ABS |
|||||||||||
3 |
PP-R |
|||||||||||
1 |
0.6Mpa |
|||||||||||
2 |
1.6Mpa |
|||||||||||
3 |
2.5Mpa |
|||||||||||
4 |
4.0Mpa |
|||||||||||
1 |
Basic type |
|||||||||||
2 |
With on-off switch output |
|||||||||||
3 |
Live by electricity(0-10mA ,220V,AC) |
|||||||||||
4 |
Live by electricity(4-20mA ,24V,DC) |
|||||||||||
5 |
With intrinsically safe explosion-proof(4-20mA,24v,DC) |
|||||||||||
6 |
With intrinsically safe explosion-proof and on-off switch output |
|||||||||||
L |
Measuring range |
|||||||||||
L1 |
Installation depth |
|||||||||||
Medium density |
||||||||||||
