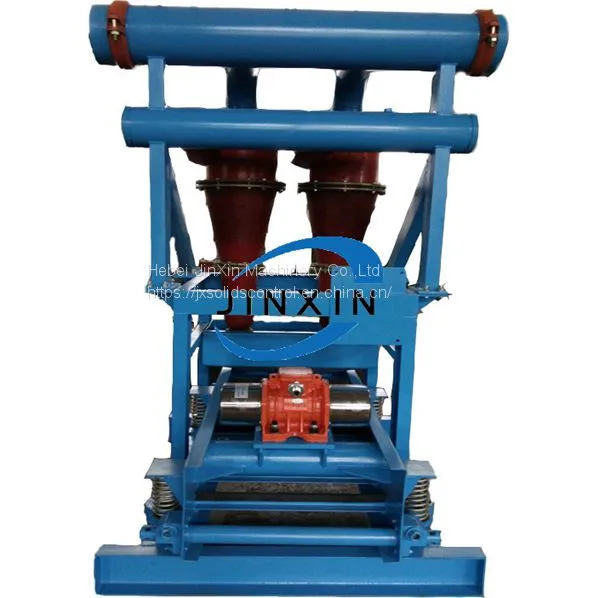

Hydrocyclone Desander
Descriptions of solids control de sander:
Hydro'cyclone Desander is the 2nd phase mud process equipment in solids control system. The cones size and number can be adjusted according to client's actual capacity requirements. Hydrocyclones also can be cast iron or other materials. The bottom shaker can be configured or not. We also can design desander with larger bottom shale shaker, such as linear motion shale shaker.
JinXin Hydrocyclone desander is widely used in oil and gas drilling, HDD, slurry separation, etc. Industry. For more information, welcome to contact with me alisa at jxsolidscontrol dot com.
Detailed Product Description
1.Sand size solids removal (47~76 microns)
2.Polymeric cones
3.Lightweight, compact
4.Lifting eye welded to frame
Features
1. Polymeric cones
2. Lightweight, compact
3. Customizable cones configuration as per clients' need
4. Lifting eye welded to frame
5. Mainly use 8”,10”, 12” desander cones. Desander is to separate particle sized 47~76μm.
Benefits
1. Provide better effect for subsequent process
2. Provides durable and low cost replacement
3. Save much space and provide easy handling
4. More flexible, user-friendly and proper cost
5. Better to protect equipment when handle and transport
Technique parameters
Model |
CSQ200 |
CSQ250 |
CSQ300 |
Treating capacity |
≤120m3/h |
≤180m3/h |
≤240m3/h |
Desander cones |
8" |
10" |
12" |
Cones quantity |
1~3EA |
1~3EA |
1~3EA |
Working pressure |
0.15~0.35Mpa |
||
Feed inlet |
125mm |
150mm |
150mm |
Discharge output |
150mm |
200mm |
200mm |
Separation size |
47~76μm |
||
Bottom shaker screen |
1.0m2(600×1600mm) Optional |
||
