Drilling Fluid Solids Control Mud Cleaner
- 5 Set / Sets per Month
- Xingang Port China
- T/T L/C Other
- 15 days
Product Details
Brand Name: | Tangshan AngXin Technology Co.,Ltd | Place of Origin: | China | Model Number: | JXMC703 |
After-sales Service Provided: | Overseas third-party support available | Warranty: | 1 year | Production Capacity: | 240m3/h |
Voltage: | 380V / 415V /460V | Certification: | ISO 9001:2008 | Application: | drilling fluid separation |
Condition: | New | Features: | long using life | Power(W): | 1.5 KW |
Product Description

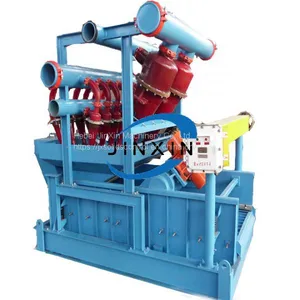

Descriptions of Mud Cleaner
Mud cleaner is combined with Desander/Desilter hydrocyclone and bottom linear motion shale shaker.
Mud cleaner configuration can be customized according to drilling mud capacity requirements.
1. Mud cleaner structure is compact, high efficient equipment. It is combined 2nd and 3rd phase solids control and its your ideal choice for drilling mud process.
2. Mud cleaner includes desander, desilter, pressure gauge, underflow discharge, shale shaker, support and pedestal.
3.There is butterfly valve between feeding inlet and discharge output.
Features
1. Two side screen tensioning-More reliable
2. Various screen type-Flexible
3. High G vibration motor-High efficiency
4. Linear motion-Rapid discharges
5. Mechanical deck angle adjustment-Easy and convenient
6. Polymeric material cones-Durable
7. Customizable configuration
Benefits
1. Compact footprint and light
2. User-friendly
3. Easy to installation
4. Low cost on operation and maintenance.
5. Low noise
6. Decrease drilling cost
7. Controlling well on drilling mud leakage
8. Flexibility on treating capacity
Technical parameters
Model | MC703 | MC603 | MC703B | MC603B | |
Treating capacity | 120~270m3/h | 120~240m3/h | 60~160m3/h | 60~160m3/h | |
Hydrocyclones | 4" (8~20EA) | 4" (10~16EA) | 4"(4~12EA) | 4"(4~10EA) | |
10"(1~3EA) | 10"(1~2EA) | 8"(1~2EA) | 8"(1~2EA) | ||
Feed inlet | 150mm | 150mm | 150mm | 150mm | |
Discharge output | 200mm | 200mm | 200mm | 200mm | |
Feeding pump power | 45~75KW | 45~55KW | 37~45KW | 37~45KW | |
Bottom shaker | AJS703L | AJS603L | AJS703L | AJS603L | |
Vibration mode | Linear motion | ||||
Vibration motor | 2×1.5KW | 2×1.5KW | 2×1.5KW | 2×1.5KW | |
Screen area | 2.2m2 | 2.05m2 | 2.2m2 | 2.05m2 | |
Screen panel | 3 | 3 | 3 | 3 |
