Smart 4~20mA Industrial Pressure Transmitter Sensor
Description Smart 4~20mA Industrial Pressure Transmitter Sensor
YD31 pressure transmitter is a series pressure transmitter of our standard transmitter.Imported chip assembly, reflecting a world-class pressure transmitter technology.Compact, rugged. Light weight, easy to install. Easy to use. Maintenance-free. Zero outside the range can be continuously adjusted, a wide range of migration. Suitable for a variety of occasions in harsh environments and corrosive media.

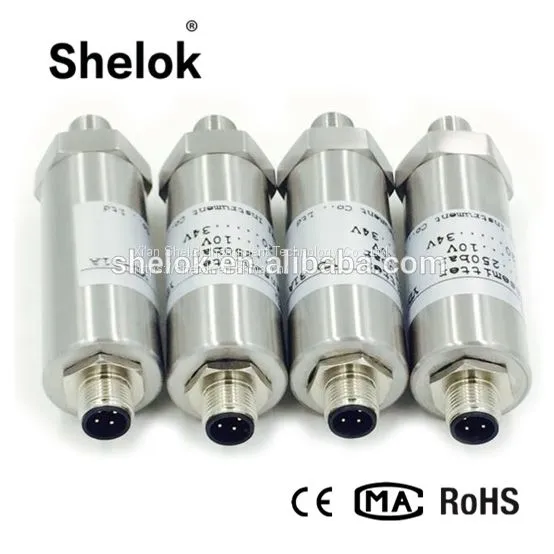

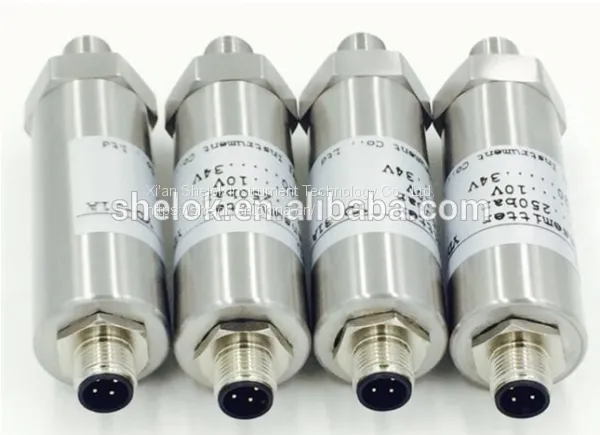

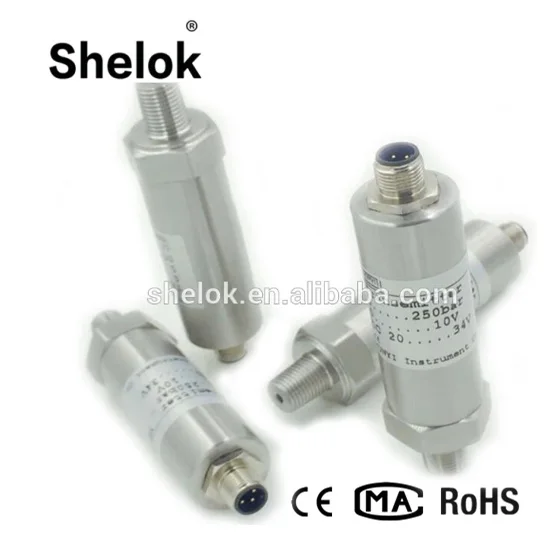

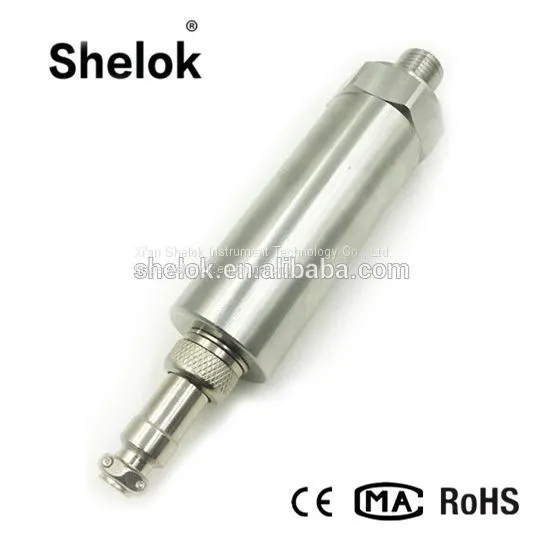

Detailed Images Smart 4~20mA Industrial Pressure Transmitter Sensor
Specification Smart 4~20mA Industrial Pressure Transmitter Sensor
Technical indicators | |
Media |
Oil, water, gas and compatible with 316L stainless steel |
Pressure |
Ceramic type:0.1-40Mpa |
Overload |
2 times (10MPa or less); 1.5 times (10MPa or more) |
Accuracy |
± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS |
Nonlinear |
|
Hysteresis and repeatability |
≤ ± 0.1% FS |
Long-term stability |
≤ ± 0.1% FS / year |
Zero drift |
≤ ± 0.02% FS / ℃ |
Response time |
≤500ms (standard) |
Electrical parameters | |
Output |
Current 2-wire: 4 ~ 20mA |
Supply voltage |
DC24V (12 ~ 32VDC, less may contact) |
Electrical connection |
Standard for Hersman, optional direct outlet or M20 PIN Aviation |
Wetted parts |
316L stainless steel |
Shell |
304 |
Seals |
Viton, optional: EPOM, NBR |
Diaphragm |
316L stainless steel |
Other specifications | |
Process connection |
1/2npt or custom |
Material |
316L stainless steel wetted materials; Shell: 304 |
Protection class |
IP 65 |
Medium temperature |
-30 ~ 80 ℃ |
Ambient temperature |
-40 ~ 80 ℃ |
Storage temperature |
-40 ~ 100 ℃ |
Current Limit |
The maximum current-24mA; voltage-largest 5mA |
Certification |
CE |
DigitalASIC, accuracy and stability
Drift affect small
Excellent long-term stability
Excellent anti-jamming capability
Overvoltage overcurrent protection, reverse polarity protection
Excellent selection of imported sensors core
Applications Smart 4~20mA Industrial Pressure Transmitter Sensor
Industrial field pressure control process, supporting the automotive, central air conditioning, refrigeration equipment, water treatment works, environmental
purification, hydraulic and pneumatic control, aerospace, petrochemical industry, food industry, medical equipment, marine and shipbuilding industry, water conservancy,hydropower , power plants and other industries. almost can be used in various industrial fields, suitable for all stainless steel, 316L compatible media, and by choosing different seals to be compatible with more media. Different pressure and electrical connections can be selected.
Selection Guide Smart 4~20mA Industrial Pressure Transmitter Sensor
Related products
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
