Protection IP65 or 67 Micro Pressures Sensors of Bottom Price
Description IP65 or 67 Micro Pressures Sensors
Ceramic pressure sensor without liquid transmission, the pressure directly on the front surface of the ceramic diaphragm, so that the diaphragm has a small deformation, thick film resistance printed on the back of the ceramic diaphragm, connected into a Wheatstone bridge (closed bridge), due to the piezoresistive effect of the varistor, the bridge is generated with a high linearity proportional to the pressure, and the voltage signal is proportional to the excitation voltage. The voltage signal is converted to a 4~20 mA current signal through the modulation amplifier circuit.

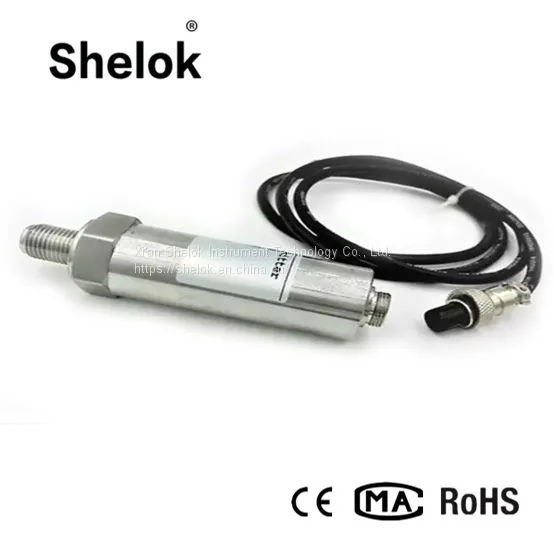

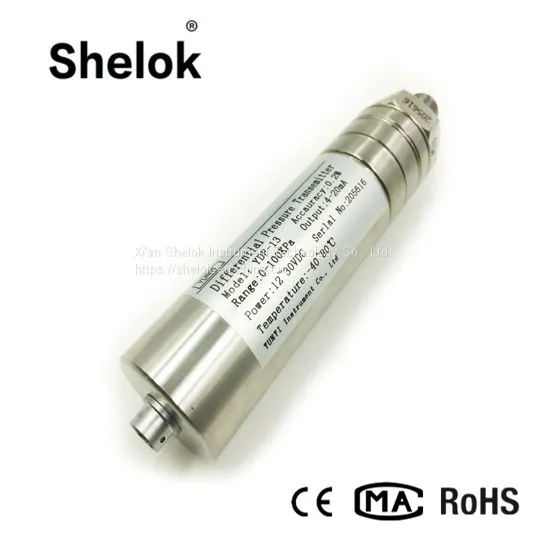

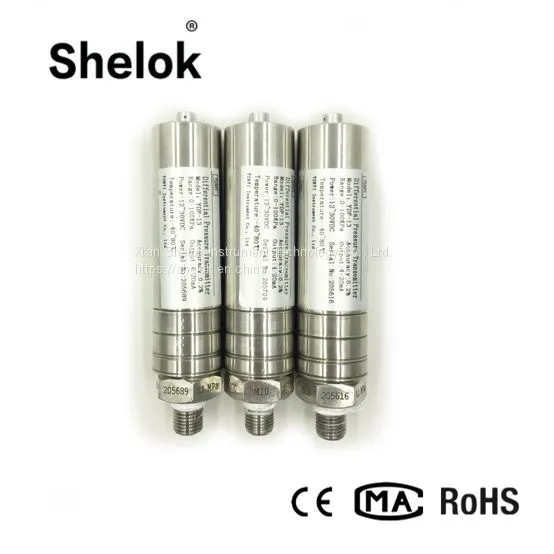

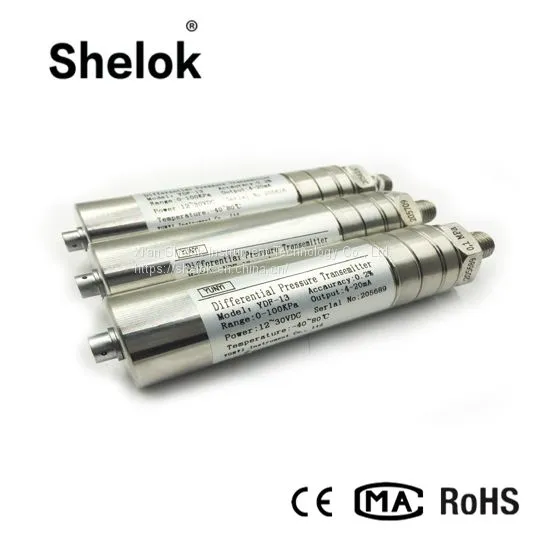

Detailed Images IP65 or 67 Micro Pressures Sensors
Specification
| Protection IP65 or 67 Micro Pressures Sensors of Bottom Price | |
| Measure Range | 100KPa~60MPa |
| Accuracy | 0.2, 0.5 (20°C) |
| Output | Current, Voltage, Digital signal optional |
| Material | Ceramic + stainless steel 316 |
| Overload pressure | 2 times the basic overload |
| Long stability | ≤±0.2%FS/Year |
| Seal | Fluorine rubber seal non-internal seal |
| Thread | Optional |
| Sound frequency | 200HZ |
| Housing material | Stainless steel structure |
| System pressure | 1000% FS |
| pensation Range | 0±70/℃ |
| Temperature | Medium temperature -30 ~ 100 °C Ambient temperature -30 ~ 80 °C |
| Protection | IP65 or IP67 High magnetic compatibility |
| Warming | ±0.08FS/°C (4~20mA output) |
| Pressure type | Absolute or Sealed gauge pressure |
Features
* all stainless steel shell, excellent corrosion performance
* Wide range of pressure measurement
* natural frequency up to 1MHz
* work stable
* anti-interference ability
* imported components, reliable performance. The following are the same as the "
* small size, light weight, type complete, cost-effective
* wide range of measuring media
