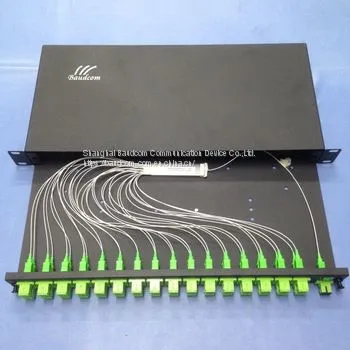

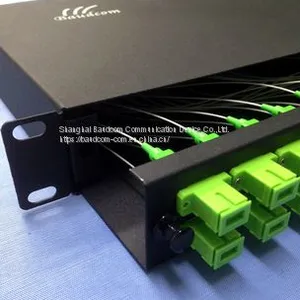

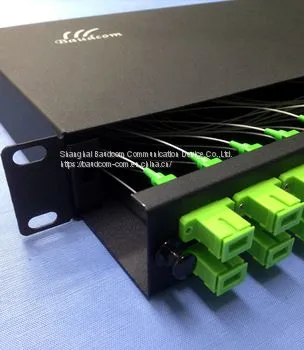

Help Center1:32 PLC Splitter Planar Lightwave Circuit Rack Mount
Related Products
-
FWDM 1310/1490/1550nm Filter Wavelength Division MultiplexerUS$ 12 - 22MOQ: 1 Piece -
Optical Splice Closure 12 Fiber Cores Cap Sealed Dome TypeUS$ 8 - 14MOQ: 1 Piece
-
1x8 PLC Splitter Planar Lightwave Circuit Cassette Module TypeUS$ 5 - 11MOQ: 1 Piece
-
G.657A SM OTDR Launch Fiber Cable With Yellow Carry BoxUS$ 150 - 190MOQ: 1 Unit
-
1 : 2 PLC Splitter Planar Lightwave Circuit Steel Tube TypeUS$ 1 - 5MOQ: 1 Piece
Features:Features:
◆ Uniform power splitting
◆ Compact package dimension
◆ Low polarization dependent loss
◆ Good channel-to-channel uniformity
◆ Environmentally and mechanically stable
◆ Low Insertion Loss and high Return Loss
◆ Wide operating wavelength range from1260nm to 1650nm
Standard:
◆ Telcordia GR-1209 and GR-1221
Application:
◆ Telecommunication networks
◆ FTTX, FTTH (Fiber to the Home)
◆ PON (Passive Optical Network)
◆ LAN & WAN
◆ CATV
Specifications:
Table 1: Performance for 1×N PLC Splitter
Note: All measurements are done at room temperature without connectors.
Port Configuration |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1260~1650 |
||||||
Insertion Loss (dB) |
Typ. |
3.6 |
6.8 |
10.0 |
13.0 |
16.0 |
19.5 |
Max. |
4.0 |
7.3 |
10.5 |
13.7 |
16.9 |
21.0 |
|
Loss Uniformity (dB) |
Typ. |
0.4 |
0.5 |
0.5 |
1.0 |
1.0 |
1.5 |
Max. |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
Return Loss (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
PDL (dB) |
Typ. |
0.1 |
0.1 |
0.1 |
0.1 |
0.2 |
0.2 |
Max. |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Fiber Length (m) |
1.0 or customized |
||||||
Fiber Type |
Corning SMF-28e or customized |
||||||
Wavelength Dependent Loss (dB) |
Typ. |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
Max. |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability (-40~+85°C) (dB) |
Typ. |
0.3 |
0.3 |
0.3 |
0.4 |
0.4 |
0.4 |
Max. |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (°C) |
-40~+85°C |
||||||
Storage Temperature (°C) |
-40~+85°C |
||||||
Table 2: Performance for 1×N PLC Splitter
Note: All measurements are done at room temperature with connectors.
Port Configuration |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1260~1650 |
||||||
Insertion Loss (dB) |
Typ. |
4.0 |
7.0 |
10.3 |
13.5 |
16.5 |
20.0 |
Max. |
4.5 |
7.7 |
11.0 |
14.2 |
17.5 |
21.5 |
|
Loss Uniformity (dB) |
Typ. |
0.4 |
0.5 |
0.5 |
1.0 |
1.0 |
1.5 |
Max. |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
Return Loss (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
PDL (dB) |
Typ. |
0.1 |
0.1 |
0.1 |
0.1 |
0.2 |
0.2 |
Max. |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Fiber Length (m) |
1.0 or customized |
||||||
Fiber Type |
Corning SMF-28e or customized |
||||||
Wavelength Dependent Loss (dB) |
Typ. |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
Max. |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability (-40~+85°C) (dB) |
Typ. |
0.3 |
0.3 |
0.3 |
0.4 |
0.4 |
0.4 |
Max. |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (°C) |
-40~+85°C |
||||||
Storage Temperature (°C) |
-40~+85°C |
||||||
Table 3: Performance for 2×N PLC Splitter
Note: All measurements are done at room temperature without connectors.
Port Configuration |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
Operating Wavelength (nm) |
1260~1650 |
|||||
Insertion Loss (dB) |
4.0 |
7.6 |
11.0 |
14.5 |
17.5 |
21.0 |
Loss Uniformity (dB) |
0.8 |
1.5 |
1.5 |
2.0 |
2.5 |
2.5 |
Return Loss (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
PDL (dB) |
0.2 |
0.2 |
0.4 |
0.4 |
0.4 |
0.4 |
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
Fiber Length (m) |
1.0 or customized |
|||||
Fiber Type |
Corning SMF-28e or customized |
|||||
Wavelength Dependent Loss (dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Temperature Stability (-40~+85°C) (dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Operating Temperature (°C) |
-40~+85°C |
|||||
Storage Temperature (°C) |
-40~+85°C |
|||||
Table 4: Performance for 2×N PLC Splitter
Note: All measurements are done at room temperature with connectors.
Port Configuration |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
Operating Wavelength (nm) |
1260~1650 |
|||||
Insertion Loss (dB) |
4.5 |
8.1 |
11.6 |
15.0 |
18.0 |
21.5 |
Loss Uniformity (dB) |
0.8 |
1.5 |
1.5 |
2.0 |
2.5 |
2.5 |
Return Loss (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
PDL (dB) |
0.2 |
0.2 |
0.4 |
0.4 |
0.4 |
0.4 |
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
Fiber Length (m) |
1.0 or customized |
|||||
Fiber Type |
Corning SMF-28e or customized |
|||||
Wavelength Dependent Loss (dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Temperature Stability (-40~+85°C) (dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Operating Temperature (°C) |
-40~+85°C |
|||||
Storage Temperature (°C) |
-40~+85°C |
|||||
Ordering Information:
Name |
PLC=PLC Splitter |
Port |
12=1×2; 14=1×4; 18=1×8; 116=1×16; 132=1×32; 164=1×64; 1128=1×128; 22=2×2; 24=2×4; 28=2×8; 216=2×16; 232=2×32; 264=2×64; 2128=2×128 |
Number of PLC Splitter |
None=1pc; 2=2pcs; 3=3pcs; 4=4pcs; etc |
Package |
R=Rack Mount |
Dimension |
1=1U; 2=2U; 3=3U; 4=4U; 5=5U |
Access |
F=Front Access; B=Back Access |
Fiber Mode |
2A=SM G.652.A; 2B=SM G.652.B; 2C=SM G.652.C; 2D=SM G.652.D; 5A=SM G.655.A; 5B=SM G.655.B; 5C=SM G.655.C; 7A1=SM G.657.A1; 7A2=SM G.657.A2; 7B2=SM G.657.B2; 7B3=SM G.657.B3 |
Connector & Adaptor |
SU=SC/UPC; SA=SC/APC; FU=FC/UPC; FA=FC/APC; TU=ST/UPC; TA=ST/APC; LU=LC/UPC; LA=LC/APC; etc None=without connectors |
Ordering information
| BD-SPLITTER-32 | 1:32 fiber splitter, 1.5 meter pigtail fiber, SC onnector, 19inch rack mount |
| BD-SPLITTER-16 | 1:16 fiber splitter, 1.5 meter pigtail fiber, SC onnector, 19inch rack mount |
| BD-SPLITTER-08 | 1:8 fiber splitter, 1.5 meter pigtail fiber, SC onnector, 19inch rack mount |
