General Description:

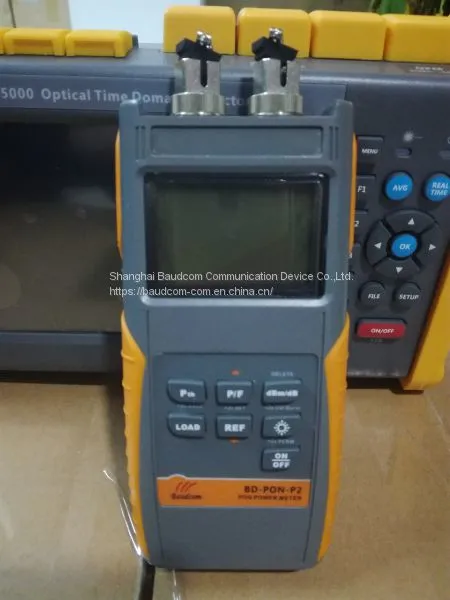

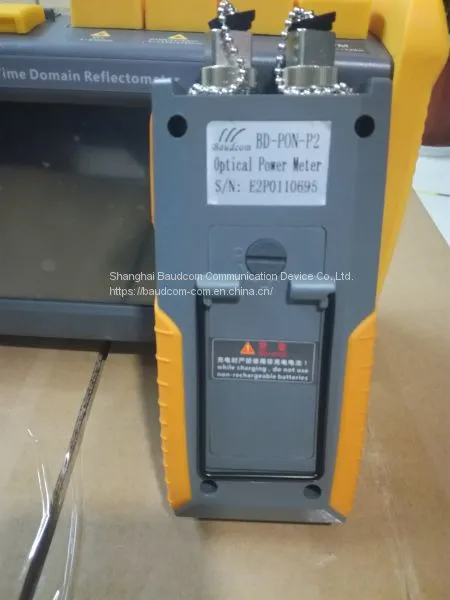

BAUDCOM PON power meter is a small size, low loss and good quality handed-held optical power meter. It is designed for the testing , installation and maintenance of FTTX PON network , which can be used for APON, BPON, EPON and GPON network. The PON power meter has two output ports for ONU and OLT/Video, which supports CW/burst upstream detection at 1310nm and downstream signal at 1490/ 1550nm. It can directly show the status of pass , warning or failure by threshold testing . The PON power meter is the ideal tool for PON setting and maintenance.
Features:
•Handed-held, Easy-to-carry and use
•P/F testing and normal testing mode
•Two testing ports with " ONU " & " OLT/Video "
•Huge data storage
•USB connection
•AC power supply
Specification:
Wavelength |
1310nm (Burst) |
1310nm (CW) |
1490 nm |
1550 nm |
||
Linearity |
± 0.2@1550 ≥ -40dBm |
|||||
Isolation Rate |
>40@1490nm |
>40@1310nm |
>40@1310nm |
|||
>40@1550nm |
>30@1550nm |
>30@1490nm |
||||
Measuring Range (dBm) |
-30~+16 |
-40~+16 |
-50~+16 |
|||
Insertion Loss(dB) |
1.5 |
|||||
Spectral Width |
1260~1360 |
1480~1500 |
1539~1565 |
|||
Accuracy |
0.5db ± 1nW @ 1550 nm |
|||||
Threshold |
10sets(configure via PC-software) |
|||||
Data storage |
900 |
|||||
Accessories adaptors |
SC/PC(standard) |
|||||
ST/PC ,FC/PC (Optional) |
||||||
Standard Configuration :
1pcs Fast User Manual ; 1pcs USB Line ; 2pcs 5# 1.5V batteries ; 1pcs Software CD ; 1pcs Testing Report ;1pcs Screw driver .
Optional Accessories : 1pcs 6v φ2.1 Adaptor ; 1pcs Soft Bag ; 2pcs ST/PC , FC/PC , G3 Adaptor
Question: PON Power Meter,if this works for Epon as well for Gpon? Answer: Yes,BAUDCOM PON optical power meter can support EPON and GPON system.
