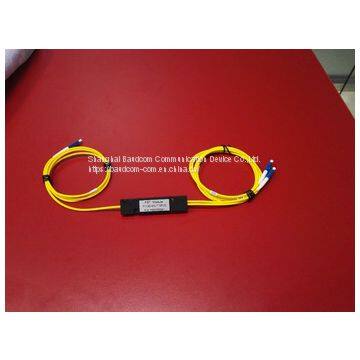

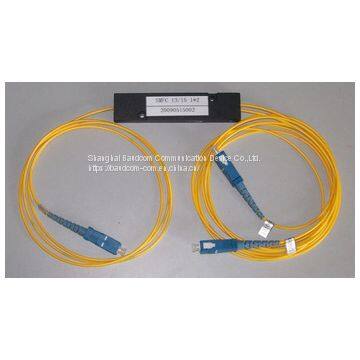

Help Center1:2 PLC Splitter Planar Lightwave Circuit Cassette Type
Related Products
-
1:16 PLC Splitter Planar Lightwave Circuit Outdoor TypeUS$ 40 - 50MOQ: 1 Piece -
1:32 PLC Splitter Planar Lightwave Circuit Rack MountUS$ 45 - 55MOQ: 1 Piece
-
FWDM 1310/1490/1550nm Filter Wavelength Division MultiplexerUS$ 12 - 22MOQ: 1 Piece
-
Optical Splice Closure 12 Fiber Cores Cap Sealed Dome TypeUS$ 8 - 14MOQ: 1 Piece
-
1x8 PLC Splitter Planar Lightwave Circuit Cassette Module TypeUS$ 5 - 11MOQ: 1 Piece
Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Baudcom provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1650nm
Wide Operating Temperature:
From -40℃ to 85℃
High Reliability and Stability
Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
Specifications
Table 1 – 1×N PLC Splitter
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
1×128 |
Operating Wavelength (nm) |
1260～1650 |
||||||
Fiber Type |
G657A or customer specified |
||||||
Insertion Loss (dB)（P/S Grade） |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
24.2/24.5 |
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
2.5 |
Return Loss (dB) （P/S Grade） |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
0.35 |
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
Temperature Stability(-40～85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
Operating Temperature (℃) |
-40～85 |
||||||
Storage Temperature (℃) |
-40～85 |
||||||
Device Dimension (mm) (L×W×H) |
40×4×4 |
40×4×4 |
40×4×4 |
50×4×4 |
50×7×4 |
60×12×4 |
NA |
Module Dimension (mm) (L×W×H) |
100×80×10 |
100×80×10 |
100×80×10 |
120×80×18 |
140×115×18 |
140×115×18 |
140×115×18 |
Mini-Module Dimension (mm) (L×W×H) |
50×7×4 |
50×7×4 |
50×7×4 |
60×12×4 |
80×20×6 |
100X40X6 |
NA |
Notes:
1. Specified without connectors.
2. Add an additional 0.15dB loss per connector.
Table 2 – 2×N PLC Splitter
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
2×128 |
Operating Wavelength (nm) |
1260～1650 |
||||||
Fiber Type |
G657A or customer specified |
||||||
Insertion Loss (dB) |
4 |
7.6 |
11 |
14.4 |
17.5 |
21 |
24.5 |
Loss Uniformity (dB) |
0.6 |
1 |
1.2 |
1.5 |
1.8 |
2.2 |
2.5 |
Return Loss (dB) （P/S Grade） |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.4 |
0.4 |
0.4 |
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
Wavelength Dependent Loss(dB) |
0.3 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Temperature Stability(-40～85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
Operating Temperature (℃) |
-40～85 |
||||||
Storage Temperature (℃) |
-40～85 |
||||||
Device Dimension (mm) (L×W×H) |
40×4×4 |
50×4×4 |
50×4×4 |
50×7×4 |
60×7×4 |
60×12×4 |
NA |
Module Dimension (mm) (L×W×H) |
100×80×10 |
100×80×10 |
100×80×10 |
120×80×18 |
140×115×18 |
140×115×18 |
140×115×18 |
Mini-Module Dimension (mm) (L×W×H) |
60×7×4 |
60×7×4 |
60×7×4 |
60×12×4 |
80×20×6 |
100X40X6 |
NA |
Notes:
1、 Specified without connectors.
2、 Add an additional 0.15dB loss per connector.
Ordering information
| BD-SPLITTER-02 | 1:2 fiber splitter, cassette, 1 meter pigtail fiber,SM,3.0mm,SC connector |
| BD-SPLITTER-04 | 1:4 fiber splitter,cassette,1 meter pigtail fiber,SM,3.0mm,SC connector |
| BD-SPLITTER-08 | 1:8 fiber splitter,cassette, 1 meter pigtail fiber,SM,3.0mm,SC connector |
