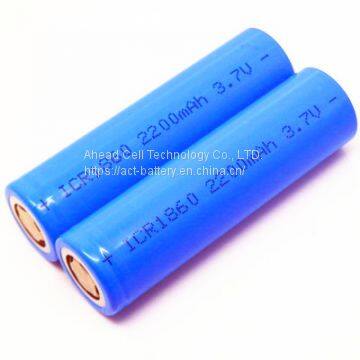

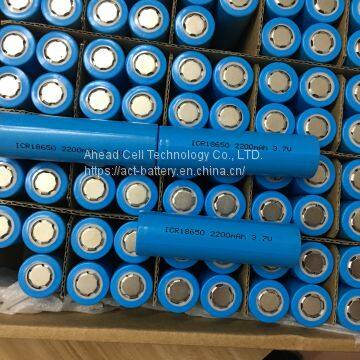

Help CenterICR18650 2200mah 3.7V Recharge li Ion Battery
Related Products
-
1Pcs 18650 3.7v 4400mAh 1S2P Li Ion Rechargeable Battery Pack With JST-XH/2p 2.54mm Connector 16.28Wh/4.4A, Blue, 6.75 x 3.68 x 1.85 cm (16.28Wh/4.4A)US$ 5.99 - 11.99MOQ: 1 Unit -
18650 3.7v 6.6Ah 1S3P Li Ion Rechargeable Battery Pack With JST-PH2.0 Plug(24.42Wh/6.6A),for Simplehuman Sensor Makeup Mirror ST3026 BT1080US$ 8.99 - 10.99MOQ: 2 Units
-
7.4v Rechargeable Li-ion Battery 2600mAh, 18650 2S1P Battery Pack Support 3C Continuous Discharge With 2.54 JST-XH Plug,BlueUS$ 6.99 - 10.99MOQ: 2 Units
-
3.7V 2600MAh ICR18650 Rechargeable Lithium Ion Battery With JST XH 2.54 Plug (1x 18650 Jst-XH, 3.7v 9.62Wh/2.6Ah, 1S1P), BlueUS$ 3.99 - 14.99MOQ: 2 Units
-
Wholesale Price LS20/ER34615 Li-SOCl2 3.6V 19Ah 46.2w Lithium BatteryUS$ 2.83 - 4.12MOQ: 10 Pieces

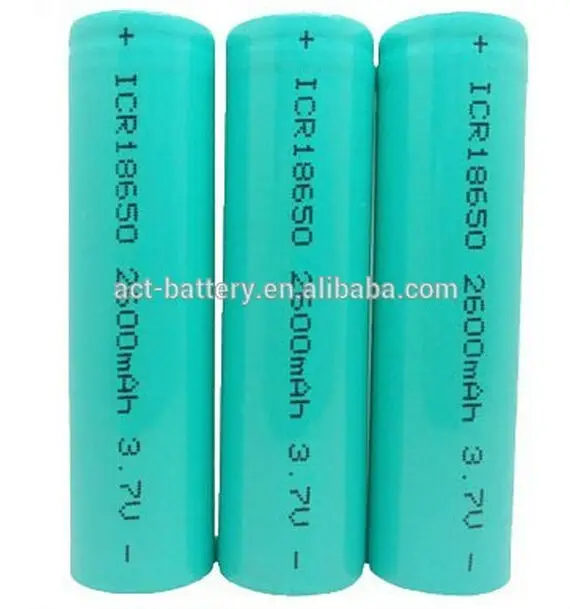

18650 3.7V Li-ion battery 2600mah rechargeable cells for led light
Specifications:
| Item | Specification | Remarks | |
| Typical capacity | 2600mAh | 0.2 C5A discharge | |
| Minimum Capacity | 2550mAh | ||
| Nominal Voltage | 3.7V | ||
| Discharging Voltage (Min) | 2.75V | ||
| Charging Voltage (Max.) | 4.2±0.03V | ||
| Charging Current(Std.) | 0.5 C5A | ||
| Discharging Current(Std.) | 0.2 C5A | ||
| Charging Current (Fast) | 1 C5A | 0 ~ 40°C, | |
| Discharging Current(Fast) | 1 C5A | ||
| Discharging Current(Max.) | 2C5A | ||
| Internal Impedance | ≤45mΩ |
AC impedance 1kHz Difference among cells should be less than 10mΩ in a shipment. |
|
| Weight | 45.0±2.0g | ||
| Outline dimension | Diameter | φ18.0±0.2mm | |
| Length | 64.8±0.5mm | ||
|
Battery cell storage and transportation environment and temperature ranges |
Min 1 Month | -20 ~ +60°C, |
Initial status of cell 3.80V and 50% of charge, the capacity lost during shipment Capacity recover rate > 80%. |
| Min 3 Months | -20 ~ +45°C, | ||
| Min 12 Months | -20 ~ +25°C, | ||
Features
1. Lithium Ion 18650 cylindrical rechargeable battery ;-3.7V 2600mAh high capacity-Higher energy density and lower weight than other types rechargeable batteries.
2. Manufactured under ISO9001-2008 to assure quality.
3. Internal PCB protects against under and over charging- low voltage 2.8, high voltage 4.2.
4. Battery tested based on International Electrotechnical Commission (IEC) standard to ensure capacity, quality and life time
5. Applications-Building Laptop Battery-Building portable power device needing high energy density and low weight.
Cautions
-Use special caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
-Make sure user has enough knowledge on Li-Ion rechargeable batteries in charging, discharging and assembly before use.
-We are not responsible for any damage caused by misuse or mishandling of theses Li-Ion batteries
Main Applications
Widely applied in digital products, portable computers, Bluetooth products, electric tools, lighting devices, toy, household appliances and emergent device area. cordless phone, power tools, instrument and apparatus, electric bikes, motorcycles
Why choose ACT?
1. 10+ Years of experience in battery industry with extensive knowledge.
2. An own property industrail zone of 33,325 square meters.
3. More than 200 workers of production, make sure large order process.
4. Quick analyze, design and prototypes.
5. Professional battery manufacturer of nicd battery, nimh battery, lithium ion battery, li-polymer battery, LiFePO4 Batteries, Li-SOCl2 and Li-MnO2 battery etc.
6. Established quality control systems under ISO9001 & ISO14001
7. OEM/ODM battery packs are available
8. We treat clients as friends with quick action & respond
9. Most batteries are RoHS, CE, UL, UN38.3, MSDS approved.
10. Battery quality: 100% NEW A LEVEL
Certificate

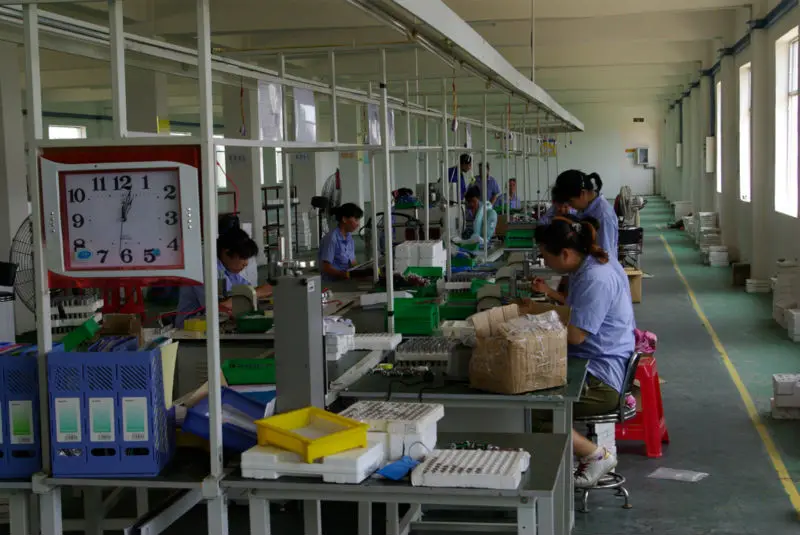

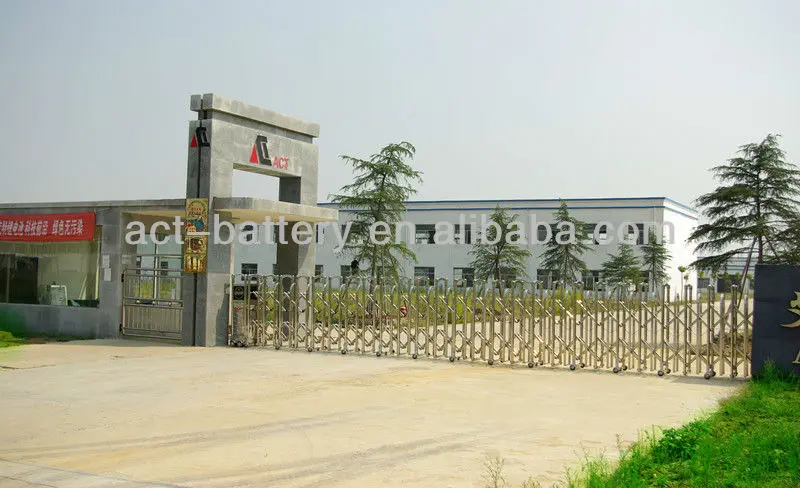

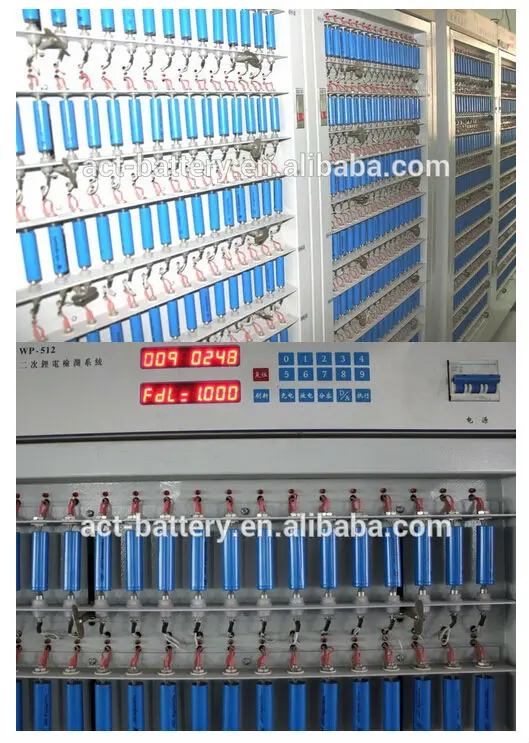

Factury Overview
Contact information:
contact me:Kevinliu
Skype: l961405011@126.com
Email: sales07(at)act-battery.com
Mobile: 0086-13517260847
