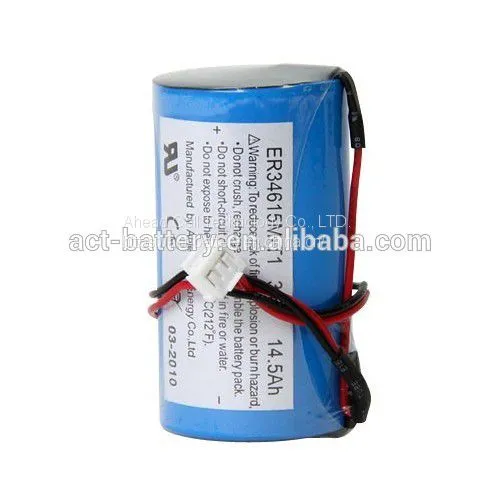

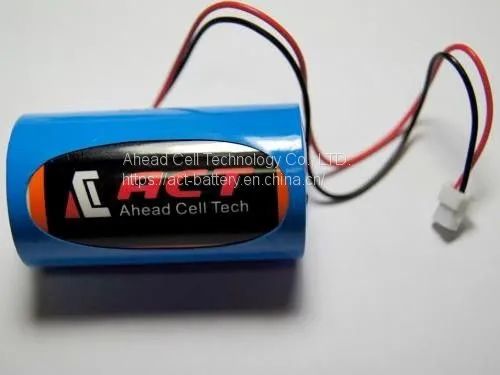

Primary Li-SOCl2 3.6V Lithium ER34615m Battery

Primary Li-SOCl2 3.6V Lithium ER34615m Battery thumbnail-1
Primary Li-SOCl2 3.6V Lithium ER34615m Battery thumbnail-2
Primary Li-SOCl2 3.6V Lithium ER34615m Battery thumbnail-3
Primary Li-SOCl2 3.6V Lithium ER34615m Battery thumbnail-4
Primary Li-SOCl2 3.6V Lithium ER34615m Battery photo-1
Primary Li-SOCl2 3.6V Lithium ER34615m Battery photo-2
Primary Li-SOCl2 3.6V Lithium ER34615m Battery photo-3
Primary Li-SOCl2 3.6V Lithium ER34615m Battery photo-4
US$ 3.0 - 4.2 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
ACT
Place of Origin:
China
Model Number:
ER34615m
Contact Supplier Request Quote Chat Now
Xiangyang Battery Electronic Technology Co., LTD.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen zhen
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ACT
Place of Origin China
Model Number ER34615m
Size D
Battery Type LiSOCl2
Nominal Capacity 14.5Ah
Nominal Voltage Other, 3.6V
Product Description




 Item Spec.
1 Model ER34615m
2 Typical Weight

100g
3 Nominal Voltage 3.0V
4 Nominal Capacity 14500mAh
5 Max Continuous Current 2000mA
6 Max Pulse Current 30000mA
7 Operating Temperature Range -55°C ~+85°C
8 Outside Diameter Max 34.0mm
9 Height Max 61.5mm
10 Certificate RoHs, CE, UN38.3, MSDS, UL

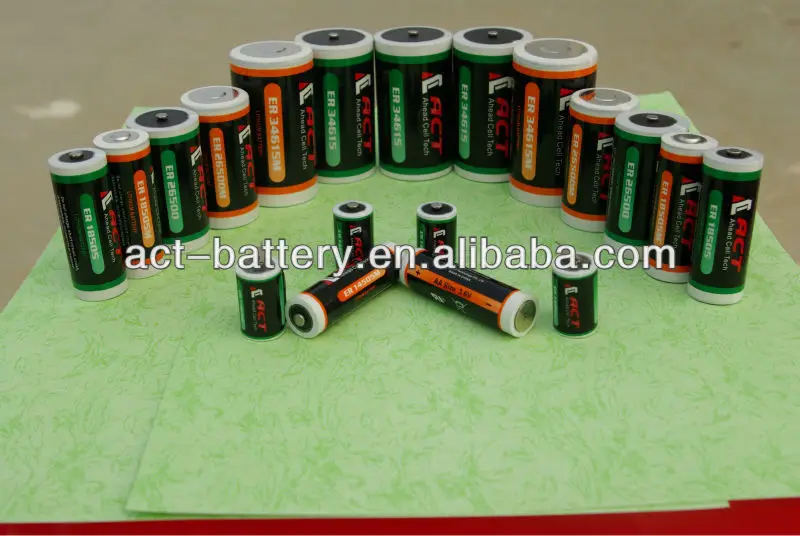

Model for your reference:



Model alias Typical voltage Typical capacity working current(mA) Max size(mm) weight(g)
(V) (mAh) standard current continuous current Pulse current Diameter*Height
energy type
ER10280
3.6V 450mAh 1mA 10mA 30mA 10.5mm*28mm 4g
ER13150
3.6V 450mAh 1mA 10mA 30mA 13.5mm*15.5mm 6g
ER10450 AAA 3.6V 750mAh 1mA 25mA 60mA 10.4mm*45.3mm 9g
ER14250 1/2AA 3.6V 1200mAh 1mA 20mA 45mA 14.5mm*25.2mm 10g
ER14335 2/3AA 3.6V 1600mAh 1mA 75mA 150mA 14.5mm*33.5mm 12g
ER14505 AA 3.6V 2400mAh 2mA 100mA 200mA 14.5mm*50.5mm 19g
ER17335 2/3A 3.6V 2000mAh 1mA 100mA 200mA 17.0mm*33.5mm 18g
ER17505 A 3.6V 3500mAh 2mA 120mA 200mA 17.0mm*50.5mm 24g
ER18505 A 3.6V 3800mAh 3mA 120mA 200mA 18.5mm*50.5mm 28g
ER26500 C 3.6V 8500mAh 4mA 130mA 300mA 26.2mm*50mm 52g
ER34615 D 3.6V 19000mAh 5mA 200mA 400mA 32.9mm*61.5mm 100g
ER341245 DD 3.6V 35000mAh 10mA 400mA 500mA 32.9mm*124.5mm 195g
ER9V
9.0V 1200mAh 1.5mA 40mA 100mA 17.0*26.0*50 31g
power type
ER14250M 1/2AA 3.6V 800mAh 2mA 120mA 250mA 14.5mm*25.2mm 10g
ER14335M 2/3AA 3.6V 1350mAh 3mA 300mA 500mA 14.5mm*33.5mm 13g
ER14505M AA 3.6V 2200mAh 4mA 500mA 1000mA 14.5mm*50.5mm 19g
ER17335M 2/3A 3.6V 1800mAh 3mA 500mA 1000mA 17.0mm*33.5mm 20g
ER17505M A 3.6V 2800mAh 5mA 800mA 1500mA 17.0mm*50.5mm 26g
ER18505M A 3.6V 3200mAh 5mA 600mA 1500mA 18.5mm*50.5mm 28g
ER26500M C 3.6V 6500mAh 10mA 1000mA 2000mA 26.2mm*50.0mm 52g
ER34615M D 3.6V 145000mAh 15mA 2000mA 4000mA 32.9mm*61.5mm 100g



Main application:

--Radiocommunication and other military applications

--TPMS

--RFID

--Alarms and security systems

--Beacons and emergency location transmitters

--GPS equipment

--Led lighting applications

--Data holding system and reserving power sources

--Others





Company Information

  Established in 27th May,2010, Ahead Cell Technology Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of lithium thionyl chloride battery and lithium manganese dioxide batteries. We are located in Hubei Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.



Why choose us:







Our Services



1, Higher energy density and lower weight.

2, Superior drain capacity.

3, Low self-dischage rate (less than 1% after 1 year of storage at 20 °C.

4, Stainless steel container.

5, Hermetic glass-to-metal sealing.

6, Non-flammable electrolyte.

7, Laser weilding.

8, Injection at bottom,avoiding the leakage of galss-to-metal.

9, Long service life-10 years

10, Short delivery,reasonable price and perfect service.

11, Cetificate:ISO9001,UN,UL,meet the RoHs requiretment.

12, a ISO:9001 and IS0:2004 standard factory, production line is very strong.

13, powerful equipments,making sure high quality.





Quality Warranty:

1. Most of the battery components are self-develop in ACT, who own strong machining ability & quickly deceloping a variety of new type's batteries.

2. On time delivery.

3. Return goods without reason before 7 days.

4. Warranty 1 year.
