Available for 2~4 cameras OR 2~6 cameras

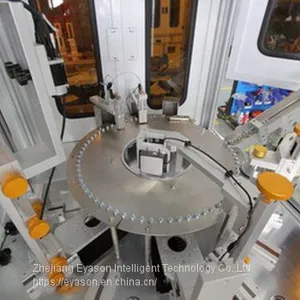

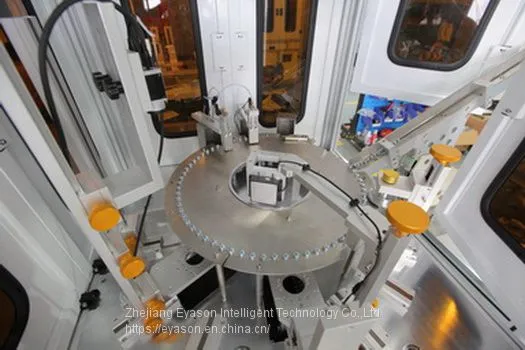

High transparent glass dial. Fit for grease-free parts which can be placed on the glass plate steadily
Feature
High transparent glass dial. Fit for grease-free parts which can be placed on the glass plate steadily
Able to place camera under glass to inspect dimensions, features and defects
Optional: Eddy current system for material mix-up or with/without heat-treatment
Optional: Prism system to inspect thread damage of bolts
Optional: External / internal 360° lens to inspect thread damage, features or surface defects

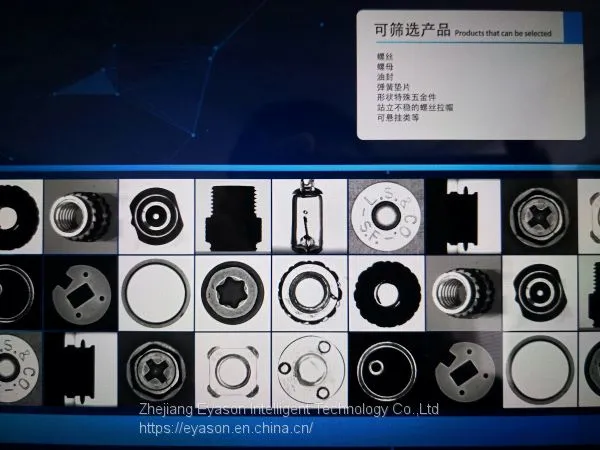

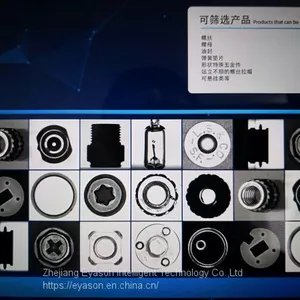

Sorting Items
Screw-head height, width Recess depth Pinhole Excess Material
Ineffective thread length Minor Thread Diameter Feature Angle
Major Thread Diamete Pitch Distance Feature No.
Bevel Thread Screw Length Feature Similarity
Cone Point Zinc:Yes or No（Head Top View） Feature Length
Pinhole Alignment Head Crack AF/AC
Head Mark Roundness Material Mix-up
Inner Roundness Inner Concentricity Broken pin
Inner Excess Material Shorten AF Deformed Thread
Feature-Center Distance Flange NutThread:Yes or No Kunrl Distance
Kunrl Height
Specifications
Wire Diameter: φ1.2~3mm Head Width: φ2.5~8mm
Head Height: 0.5~7mm Length Under Head: 1.5~12mm
Sorting Precision: ±1pixel Sorting Speed: 100~900/PPM
