ODM(original Design Manufacturer) Auto Optical Inspection Machines

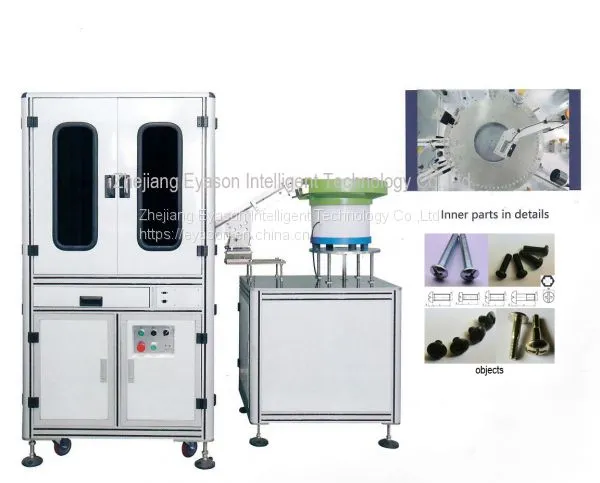

ODM(original Design Manufacturer) Auto Optical Inspection Machines photo-1
ODM(original Design Manufacturer) Auto Optical Inspection Machines photo-2
ODM(original Design Manufacturer) Auto Optical Inspection Machines photo-3
ODM(original Design Manufacturer) Auto Optical Inspection Machines photo-4
ODM(original Design Manufacturer) Auto Optical Inspection Machines photo-5
US$ 50000 - 100000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Eyason
Place of Origin:
China
Model Number:
EY-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
30 days
Brand Name Eyason
Place of Origin China
Model Number EY-01

PRODUCT FEATURE
fastener inspection machine is an ODM design model which can fit with 2~8 CCD at customers demand for sorting special Fastener and other products
Inspection items: for special ODM application
Sorting range/ criteria: At customers demand, ODM design

Inspection criteria
fastener parts head width / height / pinhole depth / recess shape / burr in recess/ spiral thread / thread I.D. / thread E.D./ neck length / shank vertical / screw length / first thread / drunk thread / head crack / plating / insert nut thread / burr / dimension / etc.
Specification

Applying component: Special ODM application
Diameter of component: ODM customer made
Length of component: At customer demand
Head Width: At customer demand
No. of CCD: 2~8 CCD
Vision system: Highly magnified CCD camera / light source sets
Software: Eyason II version 2.5
Supply and output: Feeding bowl / linear track / sorting bins (Good/NG)
Speed: Depend on the feeding system and ODM components
Power: AC 220 - 240V / 50Hz
Mainframe: Industrial computer, MITSUBISHI servo motor, Industrial CCD, Telecentric lens
Machine spec.: 1065mmL× 860mmW× 1,855mmH

fastener parts head width / height / pinhole depth / recess shape / burr in recess / spiral thread / thread I.D. / thread E.D./ neck/length / shank vertical / screw length / first thread / drunk thread / head crack / plating / insert nut thread / burr / dimension / etc.



Product Tags: Auto Optical Fastener and Nuts Sorting Machines , Electronic parts visual inspection machine , Fastener optical sorting machine
