Tensile Strength Tester
Uses:

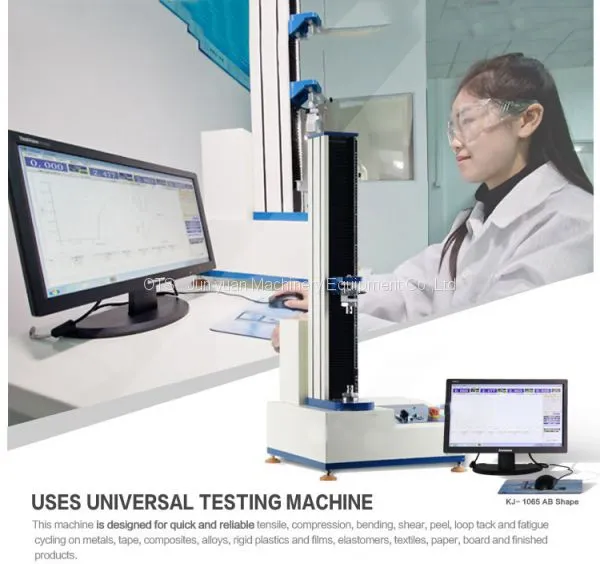

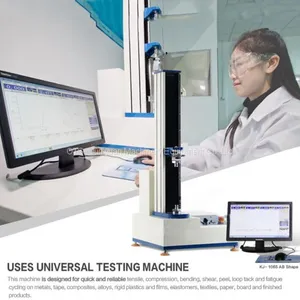

Universal Material Tensile Strength Tester is designed for quick and reliable tensile, compression, bending,
shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Character
1.Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2.Have steady performace, high accuracy, powerful software function and easy operation.
3.Use the USA high-precision load cell.Machine accuracy is ±0.5%.
Specification
Design Standards |
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7，GB/T 453,ASTM E4,ASTM D1876，ASTM F2256，EN1719，EN 1939，ISO 11339，ISO 36，EN 1465，ISO 13007，ISO 4587，ASTM C663，ASTM D1335，ASTM F2458，EN 1465，ISO 2411,ISO 4587，ISO/TS 11405，
|
|
Model |
JY-1007 A |
JY-1007 B |
Range of speed |
0.5-1000mm/min |
50-500mm/min |
Motor |
Japan Panasonic Servo Motor |
AC Motor |
Capacity choice |
1、2、5、10、20、50、100、200、500kg optional |
|
Resolution |
1/250，000 |
1/150，000 |
Effective testing spac |
120mmMAX
|
|
Accuracy |
±0.5% |
|
Operation method |
Windows operation |
|
Accessories |
computer, printer, system operation manual |
|
Optional accessories |
stretcher, air clamp
|
|
Weight |
80KG |
|
Dimention |
(W×D×H)58×58×125cm |
|
Power |
1PH, AC220V, 50/60Hz |
|
Stroke protection |
Upper and lower protection, prevent over preset |
|
Force protection |
system setting |
|
Emergency stop device |
Handling emergencies |
|
Safety Device:
Stroke protection |
Upper and lower protection, prevent over preset |
Force protection |
system setting |
Emergency stop device |
Handling emergencies |
Universal Material Tensile Strength Tester
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
