Help CenterHydropower Water Resistance -50℃-80℃ Rov Tether Cable
Related Products
-
Monolayer Total Shielding Anti-jamming Rov Tether Cable Electrical ConnectionNegotiableMOQ: 0 -
Nuclear Power Rov Tether Cable Anti-uv 450 / 750vNegotiableMOQ: 0
-
Long Life Marine Science Research Tin Plating Rov Tether CableNegotiableMOQ: 0
-
Anti-uv Maritime Affairs Od 3mm Rov Tether CableNegotiableMOQ: 0
-
Bending Resistance Purple Rov Tether Cable Remotely-operated VehicleNegotiableMOQ: 0
Company Advantages：
Shanghai Dingbai cable manufacturers imported PUR as a new type of underwater robot cable materials, easy to use, environmental protection. Flexible, wear resistant, oil resistant, acid and alkali resistant, tensile and anti-aging. As the connection line of various submersible motor, it is widely used to connect the submersible pump and all kinds of underwater electric appliances from underwater to water.
Features:
1) high flexibility-----multi strand fine twisted oxygen-free copper wire is used as conductor to ensure the softness of the wire.
2) bending resistance-----optimized cable spacing, special structure design and careful material selection, which is suitable for continuous core of high frequency bending.
3) easy to use-----core line insulation color, sheath color and cable length can be customized according to customer requirements.
4) anti electronic jamming-----The overall tin plated copper wire braided shielding density is more than 85%, which effectively resists the external high-frequency electromagnetic interference.
5) Highly tensile-----flexible package material, the non-woven fabric wrapped body and the anti wire filling, can effectively buffer the cable when it moves back and forth.
6) wear resistant, oil resistant and anti aging-----special flexible sheathing material (color can be selected by customers), bending life is more than 6 million times.
7) water proof, acid and alkali resistance, radiation protection and corrosion resistance-----Newly imported environment-friendly PUR material sheathed.
Cable Hydraulic Rating:
Water pressure classification |
The following are the same as the Resistant to vertical hydraulic capacity |
The following are the same as the Resistant to horizontal hydraulic capacity |
|||
Water pressure rating |
4.5MPa |
6.0MPa |
10.0MPa |
10.0MPa |
70.0MPa |
Single core |
Multi-strand tinned copper wire stranded conductor, conductor cross-sectional area of 0.12mm² -16mm² . Conductor stranded with water blocking glue. |
Multi-strand tinned copper wire or silver-plated copper wire stranded conductor, conductor cross-sectional area of 0.035mm² -16mm² . |
|||
Multiple core lines |
Multi-strand tinned copper wire stranded conductor, conductor cross-sectional area of 0.12mm² -16mm² , twisted pair: 2 pairs of -91 pairs.
|
Multi-strand tinned copper wire or silver plated copper wire stranded conductor, conductor cross-sectional area of 0.035mm² -16mm² , core number: 2 core -91 core. Why choose us? Our factory add for you check: ensure lowest price and good quality and best service for you, we service 7*24 hours online, happy meet in our factory. Good factory supplier save you time and money and help you win the market, contact us : dbaimr_chen@163.com |
|||
Many pairs of core |
Multi-strand tinned copper wire stranded conductor, conductor cross-sectional area of 0.12mm² -16mm² , twisted pair: 2 pairs of -91 pairs. |
Multi-strand tinned copper wire or silver-plated copper wire stranded conductor, conductor cross-sectional area of 0.035mm² -16mm² , the number of cores: 2 pairs of -91 pairs, shielding form: |
|||
Operating temperature |
-50℃-80℃ |
||||
Short temperature |
Resistant to 130 ℃, 2h low temperature vulcanization of 3m vulcanized rubber |
||||
Sheath material |
Polyurethane, rubber |
||||
Resistant to seawater |
Be applicable |
||||
Underwater robot cable test standard |
GJB1916-94，GJB774-1989，MIL-DTL-24643 |
||||

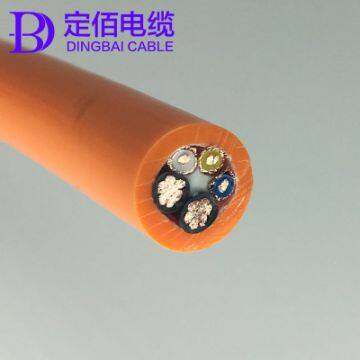

Cable Structure
Conductor: multi strand fine twisted superfine oxygen-free copper wire insulation: special mixed PVC insulation
Color: less than 0.5mm2 color logo, brown, black, blue, purple, pink, orange > 0.5mm2 black digital white number number, 3 core with yellow green line inner sheath: optional
Shielding: tin plated copper net woven shielding, density more than 85%
Sheath: Imported PUR material, the color can be chosen.
Parameter：
Rated voltage: U0 / U<0.5mm²
≥ 0.5mm²
Test voltage: U 3000V according to DIN VDE 0281
Temperature range: ℃ Mobile installation: -45 ℃ ~ +105 ℃
Fixed installation: -45 ℃ ~ +105 ℃
Description:
Horizontal underwater cable: non-wear underwater use of the environment. Requirements cable jacket (radial) to water pressure, in the eng_provisions of the test pressure and time, the cable insulation resistance does not decline, the cable is not deformed.
