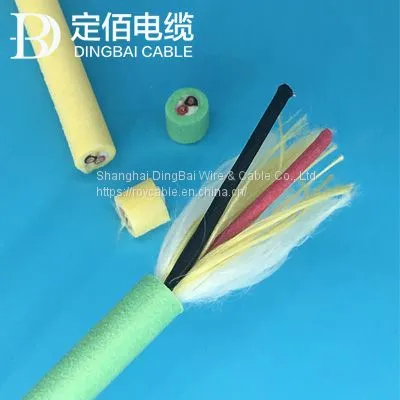

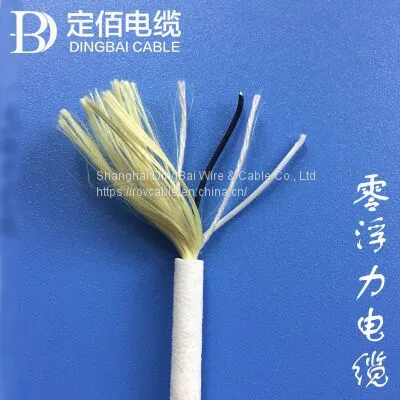

Remotely-Operated Vehicle ROV Tether Cable Multi-core For Maritime Affairs

Water pressure rating

4.5MPa

6.0MPa

10.0MPa

10.0MPa

70.0MPa

Single core

Multi-strand tinned copper wire stranded conductor, conductor cross-sectional area of 0.12mm² -16mm² . Conductor stranded with water blocking glue.

Multi-strand tinned copper wire or silver-plated copper wire stranded conductor, conductor cross-sectional area of 0.035mm² -16mm² .

Multiple core lines

Multi-strand tinned copper wire stranded conductor, conductor cross-sectional area of 0.12mm² -16mm² , twisted pair: 2 pairs of -91 pairs.
Each pair: tinned wire weaving (when shielding);
Total shielding: Tinned wire weaving (when shielding is required).
Conductor stranded, woven, into the cable are filled with water blocking plastic.

Multi-strand tinned copper wire or silver plated copper wire stranded conductor, conductor cross-sectional area of 0.035mm² -16mm² , core number: 2 core -91 core.
Each shield: tinned wire weaving (when shielding);
Total shielding: tinned wire weaving, or aluminum foil wrap + tinned wire weaving (when shielding).
Filled with sealant.

Many pairs of core

Multi-strand tinned copper wire stranded conductor, conductor cross-sectional area of 0.12mm² -16mm² , twisted pair: 2 pairs of -91 pairs.
Each pair: tinned wire weaving (when shielding);
Total shielding: Tinned wire weaving (when shielding is required).
Conductor stranded, woven, into the cable are filled with water blocking plastic.

Multi-strand tinned copper wire or silver-plated copper wire stranded conductor, conductor cross-sectional area of 0.035mm² -16mm² , the number of cores: 2 pairs of -91 pairs, shielding form:
Each pair: tinned wire weaving, or aluminum foil + tinned wire (when required shield) weave, or aluminum foil + drainage line
Total shielding: tinned wire weaving, or aluminum foil wrap + tinned wire weaving (when shielding).
Filled with sealant.

Operating temperature

-50℃-80℃

Short temperature

Resistant to 130 ℃, 2h low temperature vulcanization of 3m vulcanized rubber

Sheath material

Polyurethane, rubber

Resistant to seawater

Be applicable

Underwater robot cable test standard

GJB1916-94，GJB774-1989，MIL-DTL-24643
