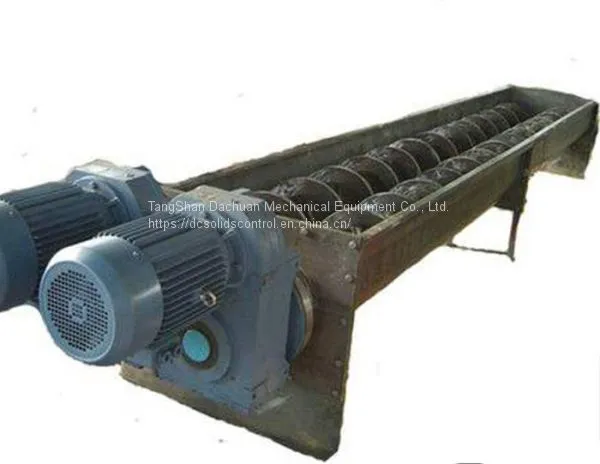

Screw Conveyor
Waste Management
Screw Conveyor is commonly known as Auger,it is a widely used conveyor equipment.Compared with other conveyor equipments,it has the advantages of small size,good sealing, stable and reliable operation,many discharge loads and unloads,safe operation and easy maintenance.
DCLS Screw Conveyor is designed for transporting mud cuttings,providing an effective and low-cost drilling cuttings transport system for offshore and onshore drilling rigs.
The flights of screw conveyor adopt wear-resistant material ,screw diameter from 250mm to 500mm, the length from 4 meters to tens of meters, 0.5 meters every gear, according to transport the material characteristics to choose a shaft or a shaftless screw conveyor.
Screw Conveyor Parameters
Model |
ScrewDiameter（mm） |
ScrewLength（m） |
Capacity（t/h） |
Speed（rpm） |
Motor（kW） |
Dimension（m） |
Weight（kg） |
DCLS250-8 |
250 |
8 |
15 |
60 |
3.0 |
9850×400×550 |
950 |
DCLS300-8 |
300 |
20 |
4.0 |
9850×450×600 |
1370 |
||
DCLS350-8 |
350 |
30 |
7.5 |
9900×500×650 |
1450 |
||
DCLS400-8 |
400 |
50 |
11 |
9900×550×680 |
1900 |
||
DCLS500-8 |
500 |
85 |
15 |
9900×650×750 |
2400 |
||
Remarks |
Conveying capacity and the motor power is the proportion of materials 1:1, conveying angle 0°，the data under the condition of 60rpm. |
||||||
