Auxiliary Plastic Crusher Series Strong Granulator Soundproof Granulator

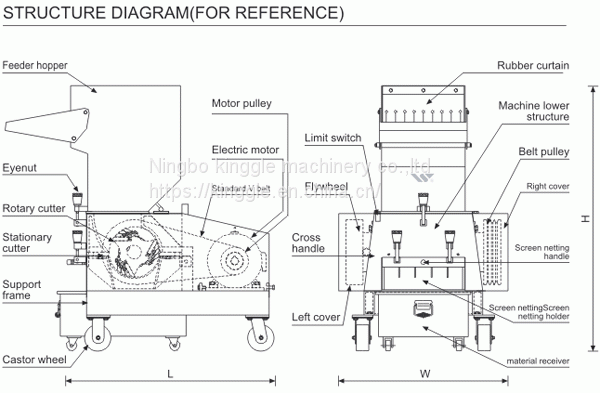

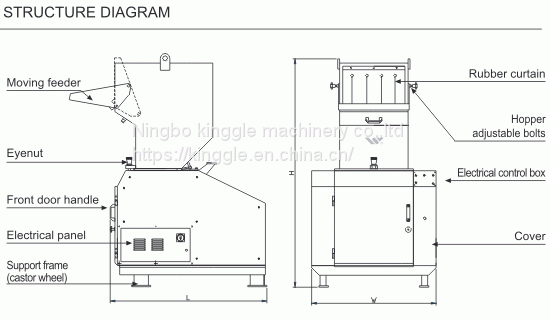

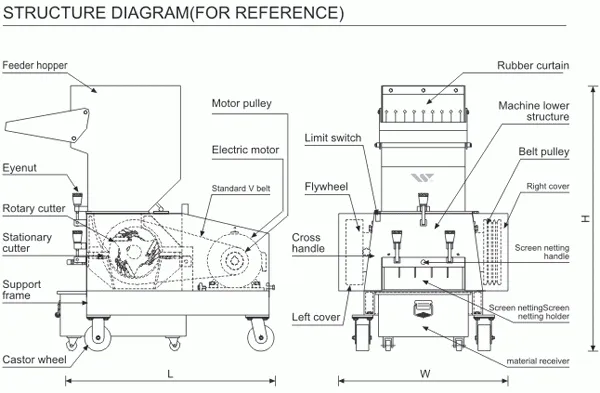

Structure Diagram
Heavy-duty bearings, large inertial wheel and strong crushing ability.
Easy-disassembly design, simple and easy to clean and maintain.
Two-layer sound-insulated hopper to insulate noise.

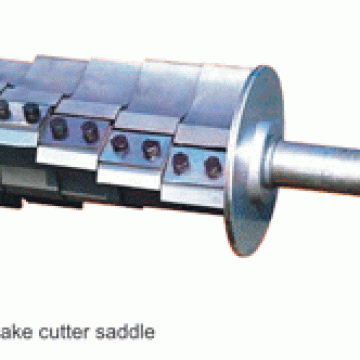

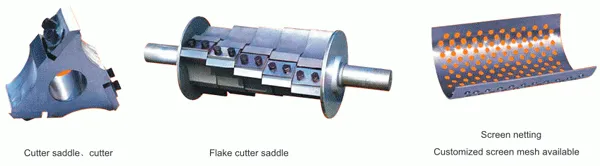

High-speed quality cutter, sharp edge, durable in operation.
Interlock power protection to ensure operational safety.
Good design soundproof for option
| Model |
Power (kw) |
Diameter of rotor (mm) |
Granulalion Size (mm) |
Rotating Blades |
Fixed Blades |
Cutting Ability (kg/h) |
Screen size (mm) |
Mechanical size LxBxW (mm) |
Weight (kg) |
| ZD-180 |
1.1-1.5 | 150 | 180x200 | 3x3 | 2 | 50-80 | 6 | 620x560x850 | 130 |
| ZD-230 | 2.2-3 | 215 | 230x215 | 3x3 | 2 | 130-200 | 8 | 1000x700x1050 | 250 |
| ZD-300 | 5.5 | 235 | 315x270 | 3x3 | 2 | 150-200 | 10 | 1200x810x1200 | 400 |
| ZD-400 | 7.5 | 265 | 415x275 | 3x4 | 2 | 200-250 | 10 | 1400x890x1400 | 500 |
| ZD-500 | 11 | 290 | 515x325 | 3x5 | 2 | 300-350 | 10 | 1200x1050x1650 | 900 |
| ZD-600 | 15 | 310 | 610x320 | 3x6 | 2 | 350-450 | 10 | 1550x1450x1800 | 1100 |
| ZD-800 | 22-30 | 400 | 830x480 | 3x8 | 4 | 450-600 | 12 | 2100x1450x1800 | 2000 |
| ZD-1000 | 45-45 | 500 | 1010x660 | 3x10 | 4 | 700-1000 | 12 | 2650x1680x2700 | 4800 |
