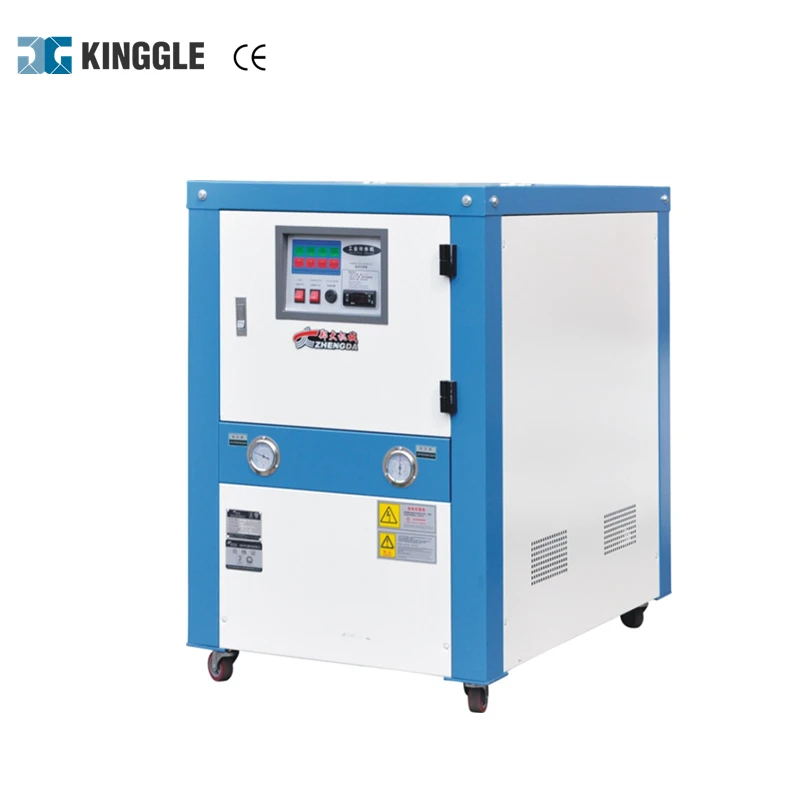

CE Air Cooled Scroll Water Chiller For Factory
Features

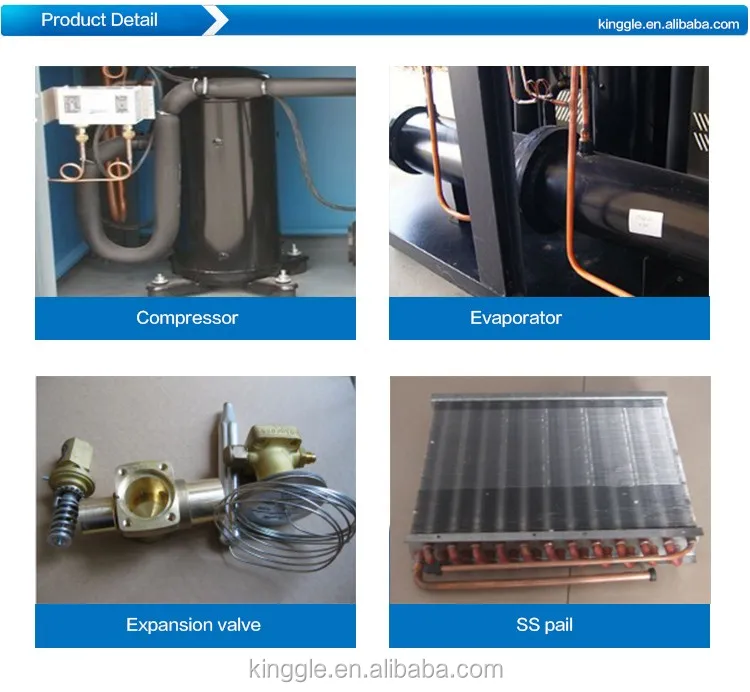

1.High quality compressor
As a heart of water-cooling machine,Kinggle choose the original compressor from European and USA with safety production inside,low noise,energy saving and long life.
2.Evaporator as water tank style
Thick stainless steel Evaporator with automatic water supplying device,the swell water tank during the installation will be saved,easy to install and maintain,and also suitable for the case of big temperature deviations,small flow.
3.Water-cooling condenser
Made from UKB latest outside threaded copper tube,good heat dissipation and small occupation.Use the latest CAD,CAM R&D technic,made form CNC which has a feature of compact structure,energy saving ,good shape and reliable performance.
4.Machine configuration
Equiped with exact electric temperature controller which control the water temperature between 5-20℃.inside which there is a overload protector,high pressure abnormal protector,imported dry filter and swell valve for stable running and easy repairing and maintaince.
5.Pump configuration for option
Imported high efficiency pump is available according to customer's requirement.
6.Multi function operation panel
There are current monitor,compressor on-off switch,pump on-off switch,electric temperature controller,safety running alert light on the panel.
| Model | UNIT | ZD-04IW | ZD-05IW | ZD-08IW | ZD-10IW | ZD-12IW | ZD-15IW | ZD-20IW | ZD-25IW | ZD-30IW | ZD-40IW | |
| Refrigeration capacity | kw | 11.9 | 15 | 23.8 | 30.5 | 34.3 | 45 | 61 | 69 | 92 | 122 | |
| kcal/h | 10234 | 12900 | 20468 | 26230 | 29498 | 38700 | 52460 | 59340 | 79120 | 104920 | ||
| Compressor | Input power | kw | 3 | 4.5 | 3x2 | 4.5x2 | 10 | 4.5x3 | 9x2 | 10x2 | 9x3 | 9x4 |
| Rated power | hp | 4 | 5 | 4x2 | 5x2 | 12 | 5x3 | 10x2 | 12x2 | 10x3 | 20x2 | |
| Evaporator | Type | Pipe coil evaporator | Shell evaporator | |||||||||
| Pipe diameter | Inch | 1 | 1 | 2 | 2 | 2 | 2 | 2002/1/2 | 2002/1/2 | 2002/1/2 | 3 | |
| Refrigerant | Type | R22 | ||||||||||
| Quantity | kg | 2 | 2.5 | 4 | 5 | 5 | 7.5 | 10 | 11 | 12 | 18 | |
|
Water cooled condenser |
Type | Shell condenser | ||||||||||
| Pipe diameter | Inch | 1 | 1 | 2001/1/2 | 2001/1/2 | 2 | 2 | 2002/1/2 | 2002/1/2 | 2002/1/2 | 3 | |
|
Chill water flow rate |
L/min | 65 | 70 | 100 | 110 | 150 | 170 | 230 | 270 | 330 | 480 | |
|
Water tank capacity |
liter | 50 | 50 | 70 | 70 | 125 | 125 | 140 | 140 | 150 | 180 | |
| Pump | Power | kw | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 4 | 4 | 4 |
| hp | 1 | 1 | 2 | 2 | 3 | 3 | 5 | 5 | 5 | 5 | ||
| Flow rate | I/min | 60 | 60 | 100 | 100 | 200 | 200 | 400 | 400 | 400 | 400 | |
|
Pipe connec -tion size |
Cooling water routlet |
Inch | 1/2x4 | 1/2x4 | 2 | 2 | 2 | 2 | 2002/1/2 | 2002/1/2 | 2002/1/2 | 3 |
|
Cooling water inlet |
Inch | 1/2x4 | 1/2x4 | 2 | 2 | 2 | 2 | 2002/1/2 | 2002/1/2 | 2002/1/2 | 3 | |
| Dimensions | Water cooled | cm | 103x55x94 | 132x72x127 |
154x85 x130 |
210x85 x151 |
210x85 x151 |
224x88 x151 |
250x85 x150 |
|||
| (L*W*H) | ||||||||||||
1. Engineers are available to provide technically machinery services overseas.
2. All the machines enjoy one-year warranty service.
3. 24 hours service both online and on telephone. 4,Prompt production & Delivery
5,Customized Specification Accepted
6,Quick Response to Your Enquiry by email, oline or Telephone.
7. Our factory provide machine testing when customer come to our factory to see this machine.
8.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings
[1] Q: Are you a factory or trading company?
A: We are a factory.
[2] Q: Where is your factory located?
A: Our factory,near Shanghai & Ningbo port, Ningbo ,zhejiang .
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need”
Kinggle machinery factory focuses on quality,quality control from beginning to the end.
Every piece of goods is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee.
