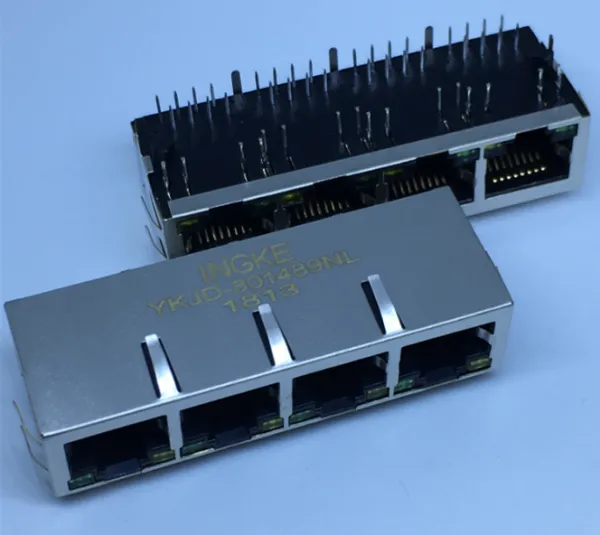

Ingke YKJD-801489NL 100% cross J8064D648A 4 Port Through Hole RJ45 Pcb Mount
Part Number:J8064D648A
Made in China:YKJD-801489NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging:Tray
Connector Type:RJ45
Number of Ports:4
Number of Rows :1
Applications :10/100 Base-TX, AutoMDIX
Mounting Type:Through Hole
Orientation: 90° Angle (Right)
Termination:Solder
LED Color:Green - Yellow
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features: Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40℃~85℃
Contact Finish Thickness : 30µin (0.76µm)
Flammability Rating: UL 94 V-0
Shield Material : Copper Ally
Housing Material :Thermoplastic
Manufacturer: Ingke Technology Co.,Ltd
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
(1).OEM factory for Connector more than 10 years.
(2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)
Ingke Technology Mass production of the following models;J0026D21G J0033D21 J0035D21B J0048D21M J0073D01B J0C-0004 J0C-0006 J1006F01P J1006F21 J1012F21K J1012F21L J1012F21R J1026F01P J20-0017 J20-0019 J2039H3B J2039H3C J2042H3C J3006G21D J3018G21K J3026G21D J8064D649P J8064E62 J8064E64 J8064E66 J8064E68 JK0-0026 JP006821U JP011821U JP026821U JV006I21 JV026I21 J0C-0003NL JK0-0018NL JK0-0026NL JK0-0014NL JK0-0016NL JK0-0229NL JXD0-0025NL JXD2-0011NL JXD0-0002NL JXD3-0001NL JXD3-0002NL JXR0-0005NL JXC0-0351NL J1012F01C
