Help CenterWE 7499011222A YKJD-8689B 1 Port Tab Down 100 Base-T Through Hole RJ45 Magjack Connectors
Related Products
-
WE 7499010441 YKJD-8365BG 100 Base-T Single Port Tab Down Through Hole RJ45 Magnetic JackUS$ 0.1 - 1MOQ: 1 Piece -
YKU-8669NL 406549-5 Through Hole Tab Up RJ45 Modular Connector 8p8cUS$ 0.1 - 1MOQ: 1 Piece
-
RJSAE-5381-021 YK-812129 2 Port Through Hole RJ45 Modular Connectors 8P8CUS$ 0.1 - 1MOQ: 1 Piece
-
HFJ11-LGHRPE-L21RL YKGD-1119NL 1 Port Gigabit Tab-Down POE+ Magnetic Modular RJ45 JacksUS$ 0.1 - 1MOQ: 1 Piece
-
JXD6-0002NL YKJU-2267NL 1 Port 100 Base-T Tab Up SMT Magnetics Rj45 JacksUS$ 0.1 - 1MOQ: 1 Piece

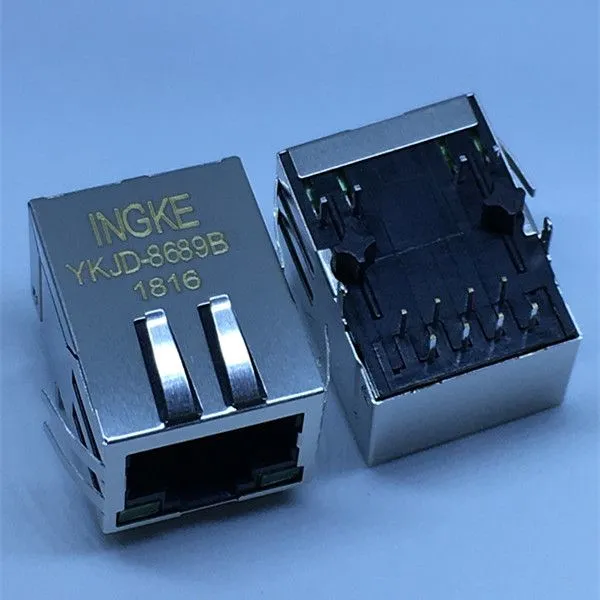

Ingke YKJD-8689B 100% cross 7499011222A 1 Port Tab Down 100 Base-T Through Hole RJ45 Magjack Connectors
Part Number:7499011222A
Made in China:YKJD-8689B
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category:Modular Connectors - Jacks With Magnetics
Packaging:Tray
Connector Type:RJ45
Number of Ports:1
Number of Rows:1
Applications:10/100 Base-T, AutoMDIX
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
LED Color:Green - Green
Number of Cores per Jack:4
Shielding:Shielded, EMI Finger
Features:Board Guide
Tab Direction:Down
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40℃~85℃
Contact Finish Thickness:30µin (0.76µm)
Flammability Rating:UL 94 V-0
Shield Material:Copper Ally
Housing Material:Thermoplastic
Ingke Technology Mass production of the following models;7499010004A 7498011008 7499051002 7499410420 7497111611A 7499511610 7498011001A 7499010004A 7498011008 7499211002A 74990101241 7499010126A 7499410221 7499021002A 7499010211A 74990111217 7499010441 74990112116A 7499410213 7499210124A 7499111000A 7499051002 7499410420 7497111611A 7499211002A 74990101241 7499010126A 7499410221 7499021002A 7498210003 7499210123A 7499511611 74990110010 7498210220A 7497011611A 7498210002 7498210002 7498210002 7499211122A 7499121211 7499210124A 7499111000A 7499511610 7498011001A
