Factory Price Humidity Control Nitrogen Storage Cabinet
Functions and applications
Factory Price Humidity Control Nitrogen Storage Cabinet
1)Anti-fading,anti-miler and anti-corrosion for your favorites such as antique,jewelry,rare metals,photographs,VCD,drawings,photographic equipment etc.
2)Anti-aging,antioxidant and anti ESD for electronic components such as SMT,IC,CSP,BGA,TQFP,TSOP,LSI,LCD,CCD, PCB etc.
3)Dehumidify for seeds,chemicals,powder and medicines.
Features:
1. Suiable for depositing materials sensitive to oxygen and moisture.
2. Using intelligent microcomputer induction system digital control, it is adjustable, the system can stop suppluing with nitrogen automatically when humidtiy reaches set value, the system can start supplying with nitrogen automatically when humidity is over the set value, it can promote the security of preservative goods.
3. The assembling way of glass door according to car windshield assembling , not traditional way-screw keeps in place iron bar; it's water proof and dust tight are perfact, exterior condition is tactile impressive. The securiy is also better.
4. Humidity setting has memory function, no need to set up after power failure

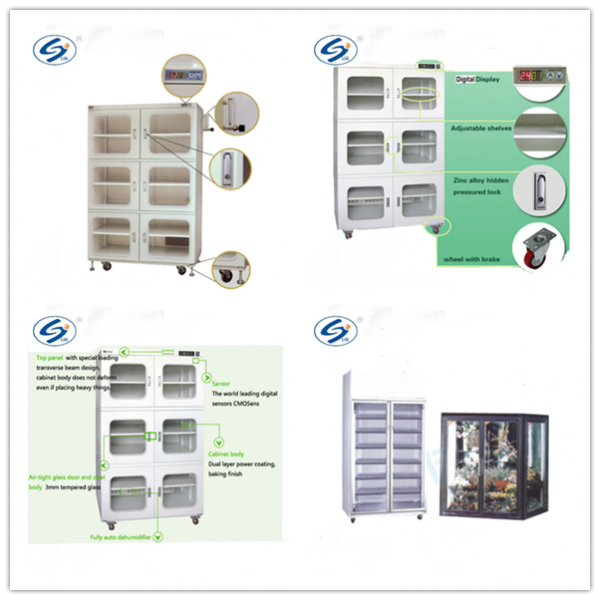

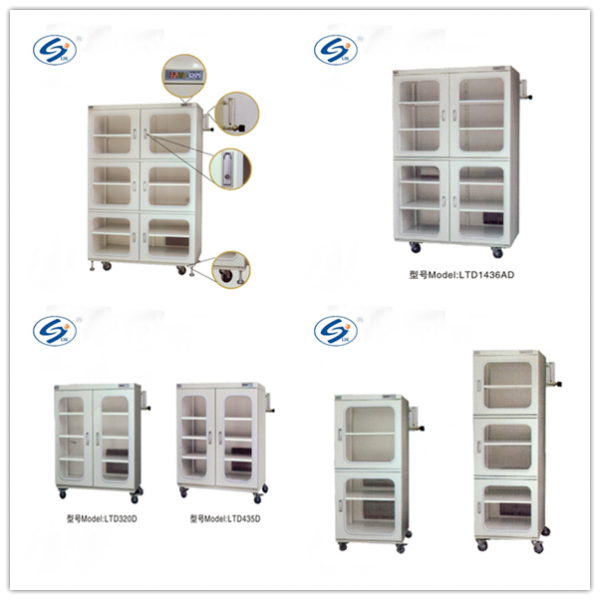

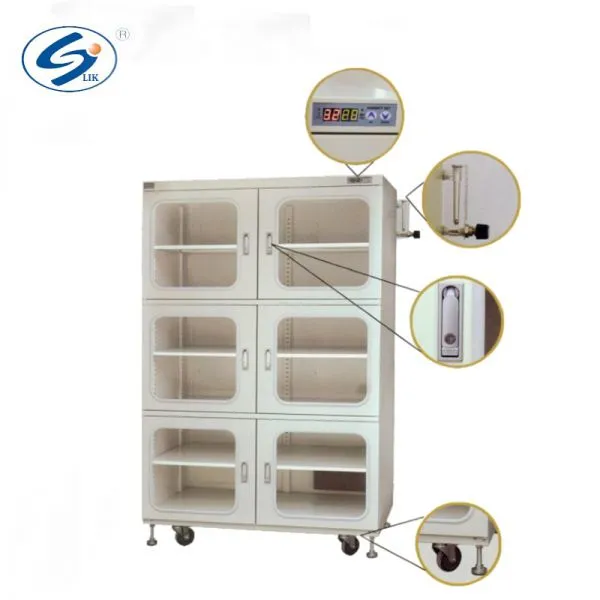

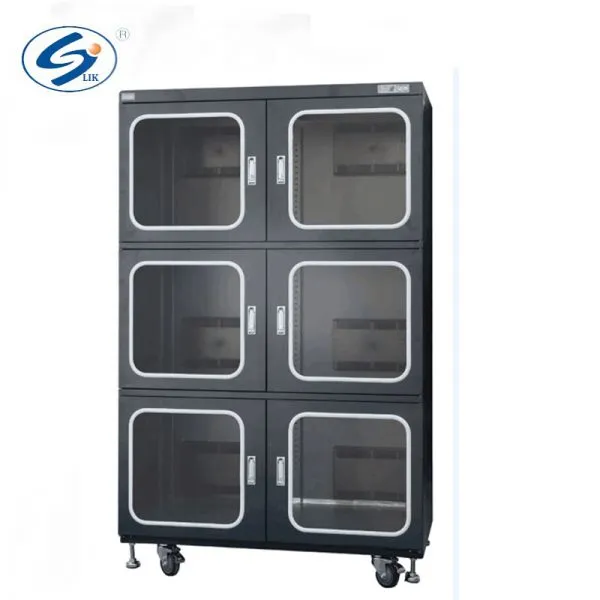

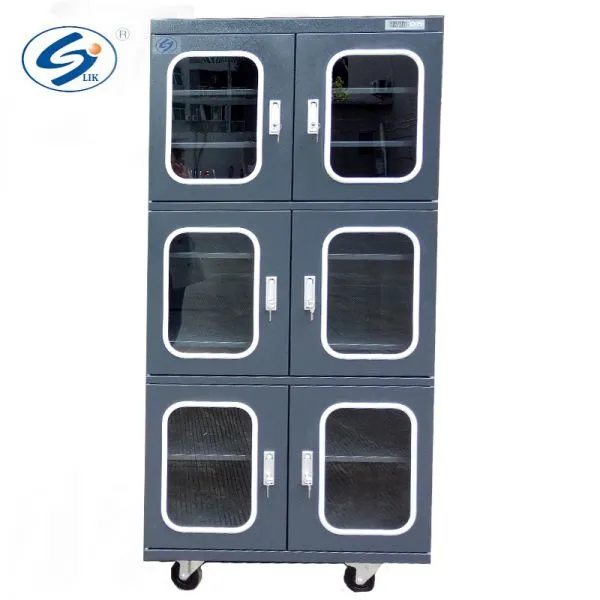

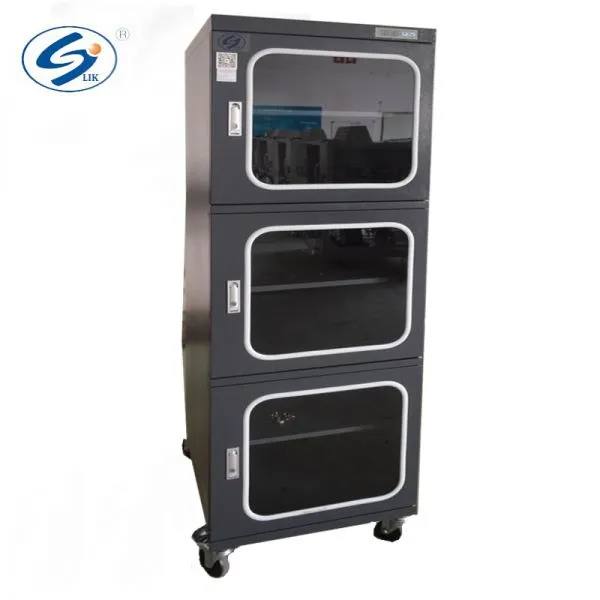

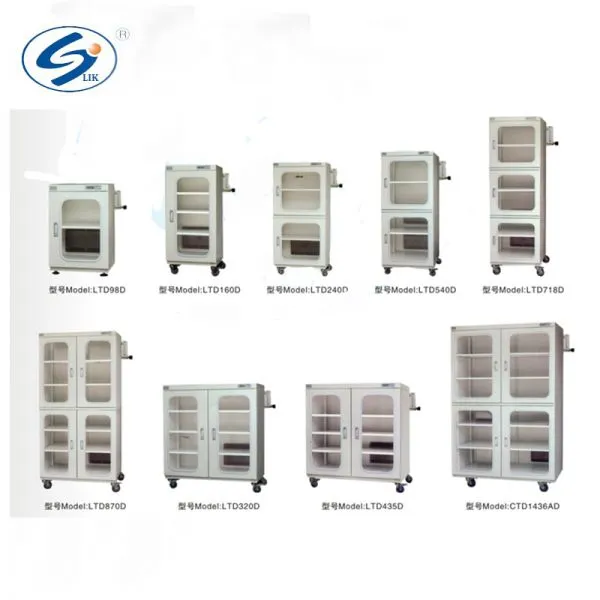

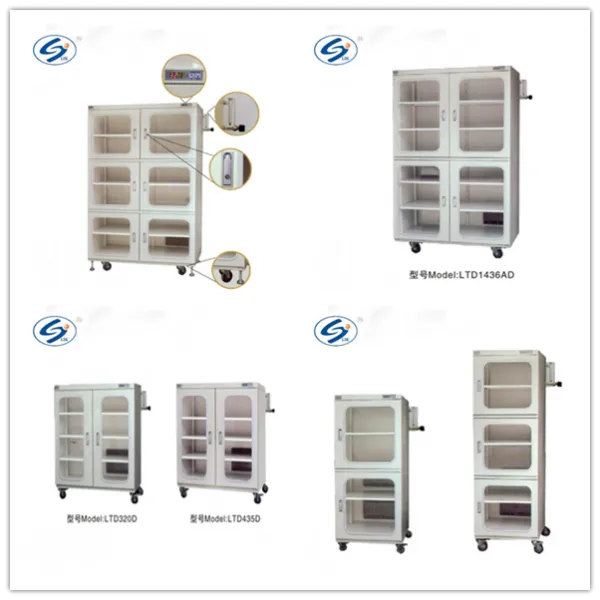

Products image(Factory Price Humidity Control Nitrogen Storage Cabinet )
Specifications and technical parameters
(Factory Price Humidity Control Nitrogen Storage Cabinet )
| Model number | LTD160D | LTD240D | LTD320D | LTD435D | LTD540D | LTD718D | LTD870D | LTD1436AD/BD |
| Inner size (W*D*H)mm | 446*422 *848 | 596*372 *1148 | 898*422 *848 | 898*572 *848 | 596*682 *1248 | 596*682 *1723 | 898*572 *1698 | 1198*682 *1723 |
| Outer size (W*D*H) mm | 448*450 *1010 | 598*400 *1310 | 900*450 *1010 | 900*600 *1010 | 598*710 *1465 | 598*710 *1910 | 900*600 *1890 | 1200*710 *1910 |
| Capacity | 160L | 240L | 320L | 435L | 540L | 718L | 870L | 1436L |
| RH range | 1%RH-60%RH(adjustable and can be custom made) | |||||||
| Temperature | RT uncontrollable | |||||||
| Voltage | 110V/220V 50HZ (can be custom made) | |||||||
| Display & Precision | Digital Display;Humidity ±3%RH & Temperature ±1ºC | |||||||
| Sructure | 1.2mm cold rolled steel/SUS304/SUS201 for dody(can be made by yourself) | |||||||
| Shelves | 3 | 3 | 3 | 3 | 3 | 5 | 5 | 5 |
| Doors | 1 | 2 | 2 | 2 | 2 | 3 | 4 | 4/6 |
| Wheel | 4 movable wheels 2 front with brakes,4 suppoters for fixing | |||||||
| Color | Two colors for options home using in Ivory/anti-static balck(the color can be chosen as your request) | |||||||
| Nitrogen Interface | Ø 6mm(can be custom made) | |||||||
| Selective Accessories | RS485 interface PC connectable all the dates can be record; Inner LED head light; Sound-light alarm system;SUS304/SUS201 for body cabinet&shelves;Double N2 flow meters; Nitrogen purity tester;Nitrogen generator | |||||||
| Condition(RH%) | Store items |
| 60%~45% | Paintings, antiques, paper money, old books, Fax paper, |
| 45%~35% | Camera, lenses, microscopes, endoscopes, binoculars, magnetic tape, disks , records, film, negatives, positive film, musical instrument, stamps, furs, medicinal materials, tea , coffee, cigarette etc. |
| 35%~20% | measurement instruments, all electronic parts, pc boards, PCB, metallic powders, semiconductors, medical supplies etc. |
| 10%~20% | electronic parts ,IC,BGA,Sample, standard measuring tool, seeds, pollen, seedlings etc. |
| 1%~10% | The material needs ultra-low humidity,just as some IC, BGA and so on |
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc.
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. We accept on-site service If customers require.
1. Pre-service
24 Hours online service for your consult.
Help choose right model, and a series of service, person, advise. Main web site: /
1) More than 10 years manufacturer experience in test equipments and with strong research and development team.
2) Acceptable customization for all kinds of specical specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 10 years experience, more professional and reliable
6) Our professional team could provide the best suggestion as long as you tell us what kind of test you need to do and the required specification.
7) Welcome to view our factory at any moment .
2. After sale service
1) We deal with your complains within 24 hours and solution provide within 3 working days.
2) Trainning how to instal the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1 year warranty service and all life maintenancee; our engineers could go to your place for better service necessarily.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
FAQ
Why choose us?
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping ,
you just need link power in your lab, then can start to operate.
Secondly, we had detailed operation manual with chamber , any problems can find and solve in it.
Thirdly, some of customized chambers we should to install and teach your team to operate .
