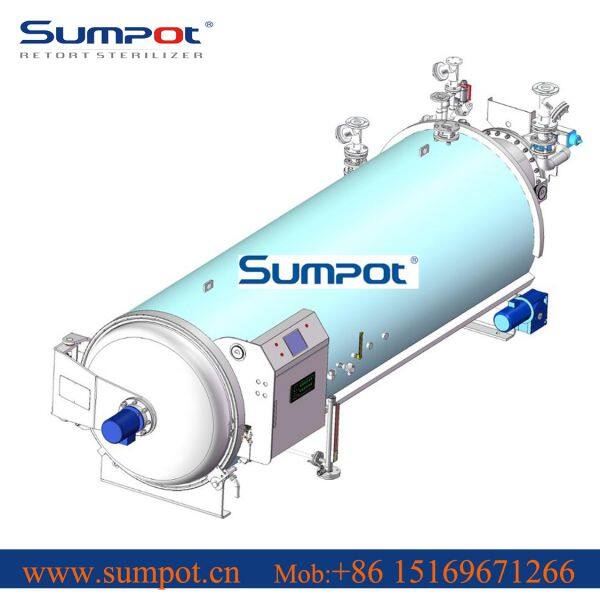

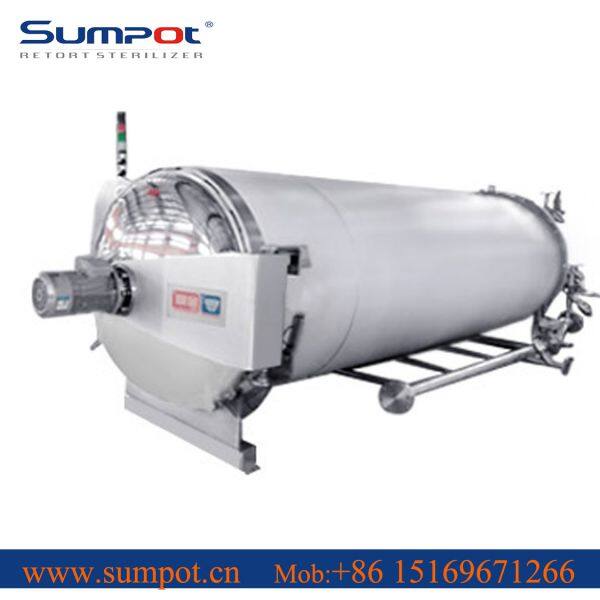

Coconut Milk Steam Air Retort Sterilizer

 Coconut Milk Steam Air Retort Sterilizer

 Coconut Milk Steam Air Retort Sterilizer

1、Material：Stainless steel sus304, Use flanges and heads of the superior quality in China, advanced and stable SIEMENS control system ensures that customers can timely find the supply chain in the world to reduce downtime.
2、Safety：Door safety protection：If the door is not closed completely, sterilization will not start. Pressure safety protection: Do not open the door until the pressure released。Safety valve：Safety valve used when pressure is over pressure to ensure the safety of operators and products.
3、Insulation - coating：The overall horizontal sterilizer is coated with 20mm silicon foam + 20mm general foam + stainless steel sheet and riveted to prevent heat losses.
4、Energy save.No venting needed compare with traditional steam type retort sterilizer.About 25% steam was saved.Compared with the hot water immersion and hot water shower type retort sterilizer.No water needed to be heated,save the steam used to heat water.
5、Creating quiet and comfortable working environment because of low noise

6、F0 test:Available

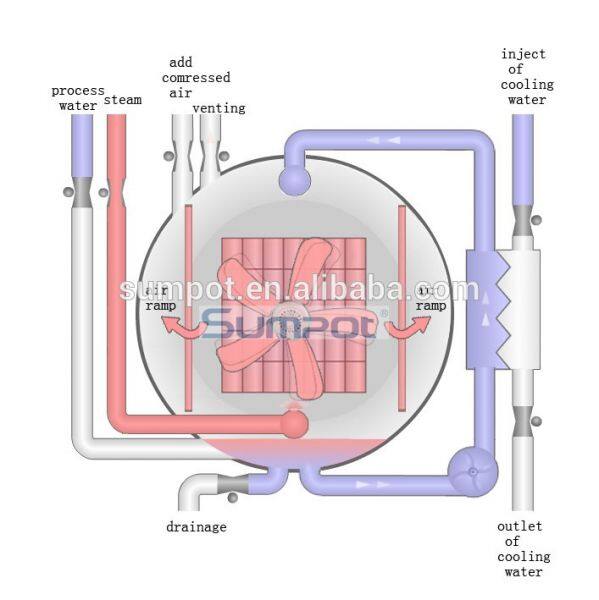

Steam and air inside the retort exist at the same time, without exhaust process. With the function of the circulation fan, air-steam is high speed circulation, mix adequately, make uniform temperature is reached inside the kettle.

A fan is installed at one end of the antiseptic cauldron. There are air duct on both sides of the retort, the spraying device is installed in the top of the retort and the heat exchanger is installed the outside of the retort.

In temperature increasing procedure, fan make the steam spread fastly through the duct fan so that to increase the heat transfer rate of sterilization in food, avoid cold spots, reduce the heating time, improve product taste.

Cooling - using steam condensate as the circulating water, through the heat exchanger, indirect cycle cooling. The condensed water temperature close to the product temperature, temperature difference is small, less cooling process, so as to solve the traditional sterilization retort of uneven distribution of steam, slow speed of heating, water wastage and limitations to use big technical problems.

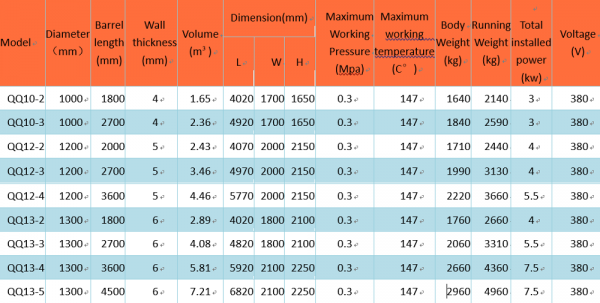

Technical parameter of Coconut Milk Steam Air Retort Sterilizer :

Applicable scope for Coconut Milk Steam Air Retort Sterilizer :

Tin cans and flexible packages.

FAQ:

1.What kind of autoclave can I use?

For the autoclave type and capacity, below information is helpful:

a: product contents and package type

b: package size and dimension

c: batch quantities.

Based on this data, we can work out a solution for you with all tech data, welcome your inquiry.

2. GANRANTEE

 Guarantee one year for the parts of machine.Some parts is from US and Europe country, so don't  purchase parts in your own country.

3. QUALITY

Our quality deserves our customer's trust. We have lots of famous customer at home and abroad, why they choose us, because our quality and service. what we sell is quality.Our retort sterilizers have been approved by CE, and FDA low acid food sterilization approval, as well as ASME.

4. INSTALLATION

 Lots of customer worry about the installation. Here please note that SUMPOT is responsible for the installation, debug and  training of machines that it sold, on matter at home or abroad.

About us:

We are retort sterilizer manufacture since 1996.  20 years experience enable us to provide you our high quality machine and service.

More than 80 Skilled workers in our plant, R&D center, full equipped food sterilization lab are available for our client.

Our retort sterilizers have been approved by CE, and FDA low acid food sterilization approval, as well as ASME.

 Different size we can customized manufacture for our client as per their different needs.

Certificate:

Exhibition:

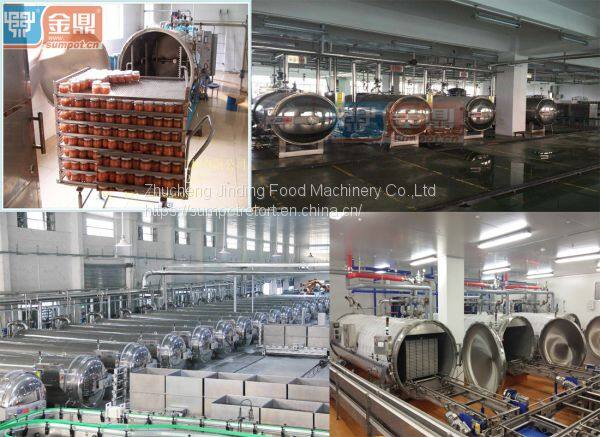

Application of  Coconut Milk Steam Air Retort Sterilizer :

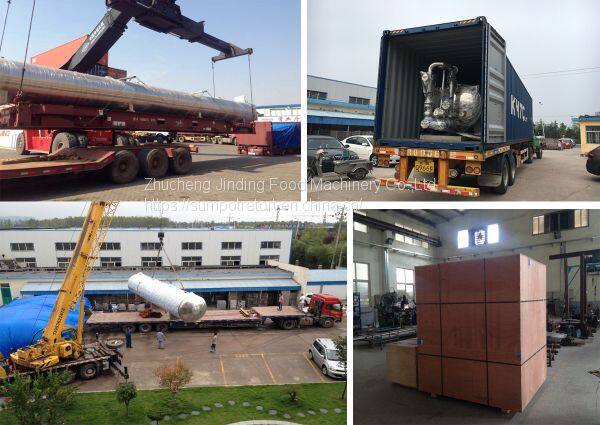

Package and shippment:
