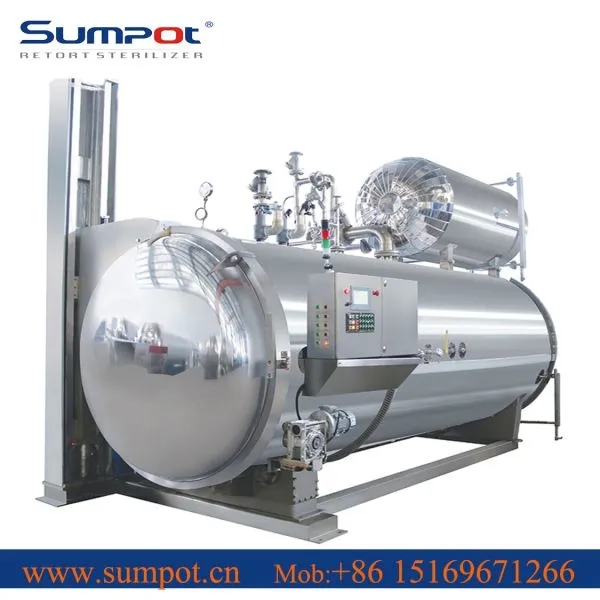

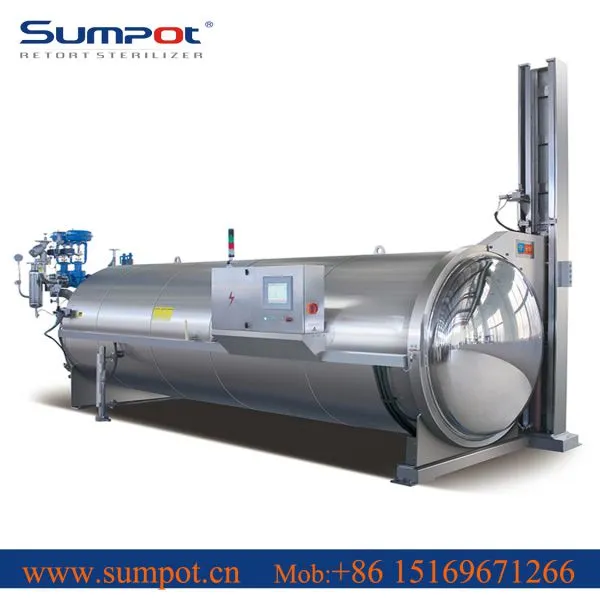

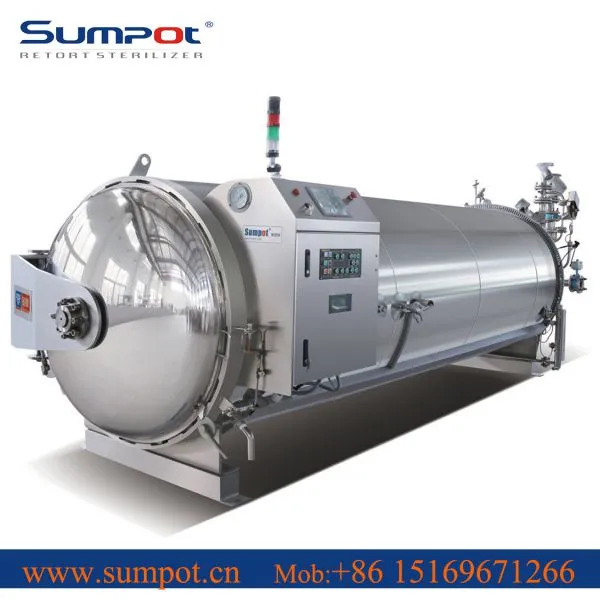

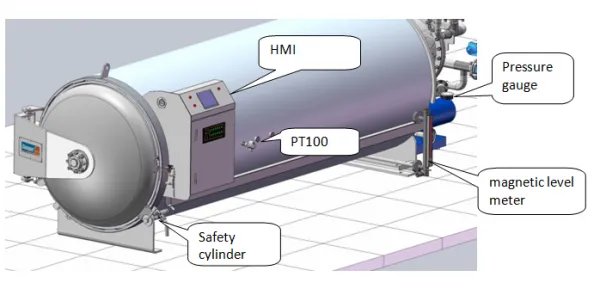

Water spray retort/autoclave sterilizer for bird's nest
Basic principle:heat sterilization water by steam directly
1. Water filing
Prior to the start of the process, the retort is filled with a small volume of process water such that the water level is below the bottom of the baskets. This water can be used for successive cycles if desired, as it is sterilized with each cycle.
2. Heating
Once the cycle is begins, the steam valve opens and the circulation pump is switched on. The mixture of steam and water spraying from top of the retort vessel creates highly turbulent convection currents that rapidly homogenizes the temperature at every point in the retort and between the containers.
3. Sterilization
Once the programmed sterilization temperature has been reached, it is held for the programmed time with +/-1 °F . Similarly, the pressure is kept with +/- 1 psi by adding and venting compressed air as needed.
4. Cooling

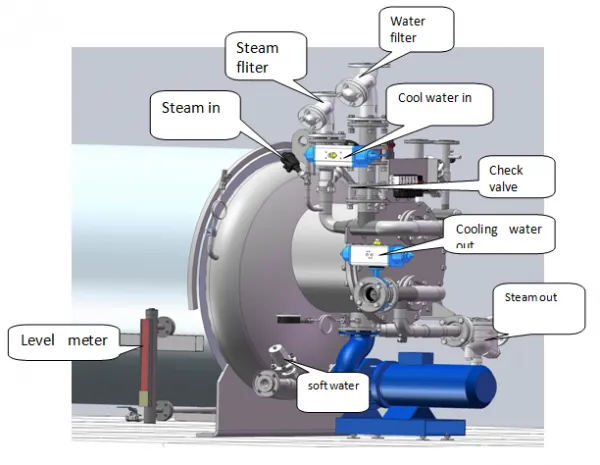

At the end of the sterilization step, the retort switches into cooling mode. As the process water continues to be circulated through the system, a portion of it is diverted through on side of a plate heat exchanger. At the same time, cold water passes through the other side of plate heat exchanger. This results in the process water inside the retort chamber being cooled in a controlled fashion.
5. End of cycle

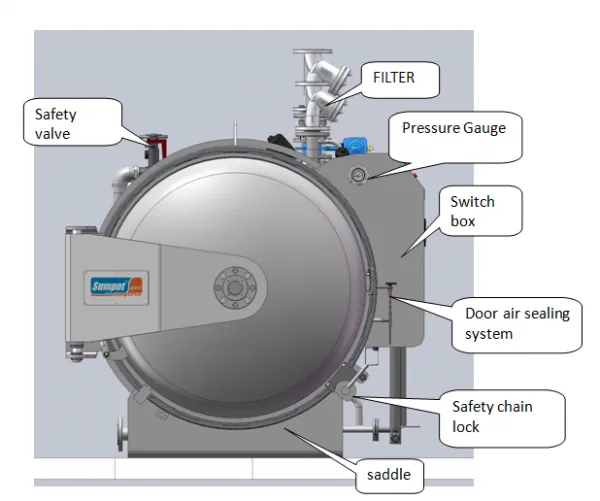

Once the retort is cooled to the programmed temperature set point, the cold water inlet valve on the heat exchanger closed and the pressure inside the retort is automatically relieved. The water level is lowered from the maximum down to the medium level. The door is equipped with a safety locking device which prevents the oping of the door in the case of residual pressure or high water level.
Suitable for all heat resistant and waterproof package material
1. Plastic container serial: PP bottles, HDPE bottles.
2. Mental can: tin can, aluminum can.
3. Glass container: glass bottle, glass jar.
4. Flexible pouch serial: flexible retort pouch, laminated film bag, high temperature cooking bag, vacuum bag.

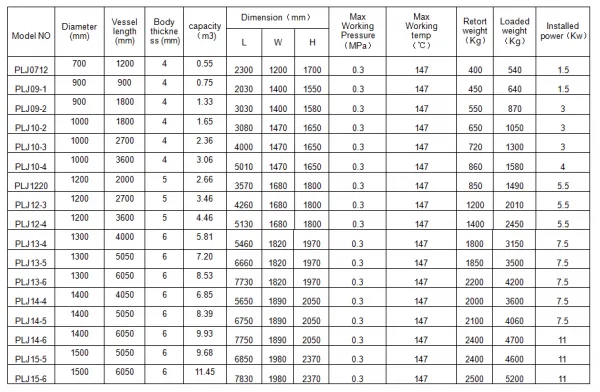

Technical parameter of Water spray retort/autoclave sterilizer for bird's nest
FAQ:
1.What kind of autoclave can I use?
For the autoclave type and capacity, below information is helpful:
a: product contents and package type
b: package size and dimension
c: batch quantities.
Based on this data, we can work out a solution for you with all tech data, welcome your inquiry.
2. GANRANTEE
Guarantee one year for the parts of machine.Some parts is from US and Europe country, so don't purchase parts in your own country.
3. QUALITY
Our quality deserves our customer's trust. We have lots of famous customer at home and abroad, why they choose us, because our quality and service. what we sell is quality.Our retort sterilizers have been approved by CE, and FDA low acid food sterilization approval, as well as ASME.
4. INSTALLATION
Lots of customer worry about the installation. Here please note that SUMPOT is responsible for the installation, debug and training of machines that it sold, on matter at home or abroad.
Contact us:

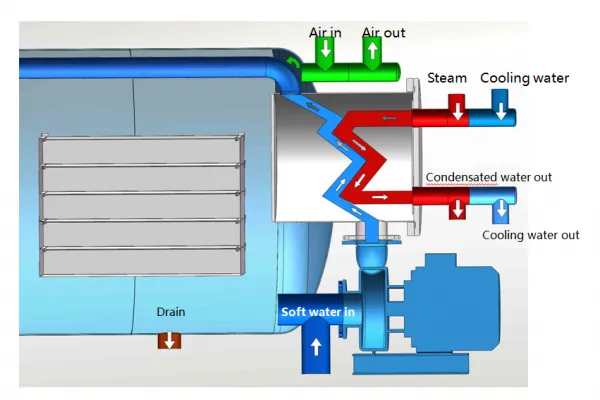

Basic principle: direct heating sterilized water with steam
Su
Suitable for all heat resistant and waterproof package material
itable all heat resistant and waterproof package material
|
|
