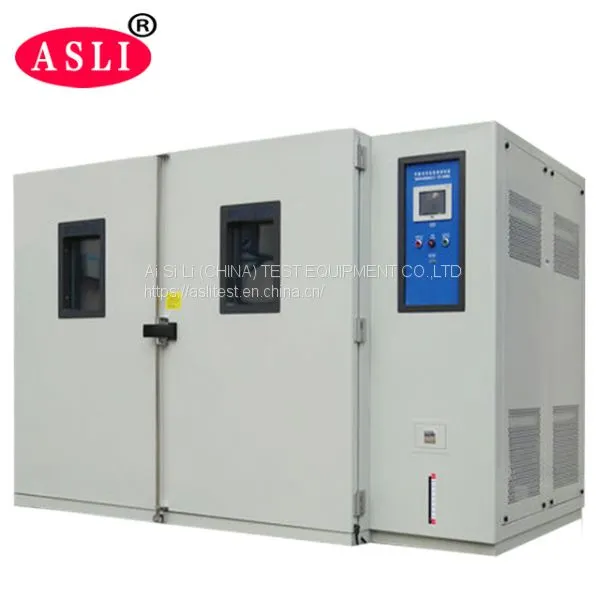

High Low Temperature Walk - In Stability Chamber Humidity Test Room (CE Standard)
Walk in Stability Chamber Application:
Programmable simulation walk in stability chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of big test samples, such as electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Walk in Stability Chamber Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test ,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
Walk in Stability Chamber Technical Parameters :
| Model | THR-volume (low-temperature options : A ~ F) |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, |
Indication Resolution/ |
0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H. |
Control Accuracy of |
±0.5°C; ±2.5% R.H. |
Temperature Rising/Falling |
Temperature rising approx. 0.1~3.0°C/min; temperature falling approx. 0.1~1.0°C/min; |
| Cooling System | Water cooled |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high and low voltage |
| Optional Accessories | Slope for cart , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V(±10%),50/60HZ ,3 Ph 5 Lines |
High Low Temperature Walk - In Stability Chamber Humidity Test Room (CE Standard):
1.Professional Manufacturer
2.Operation easy
3.Customized Size
4. Fast Delivery
Package: Standard export wooden case, plywood case or according to customer's requirement.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
