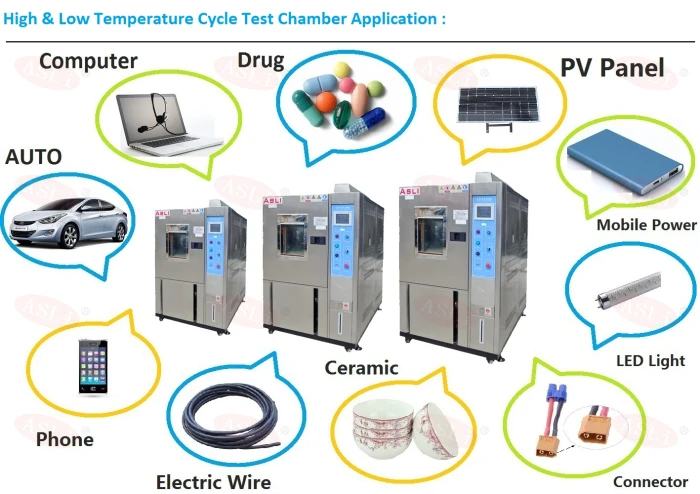

Environmental Climatic High Low Temperature Cycling Test Chamber Application:
Temperature Cycling Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Environmental Climatic High Low Temperature Cycling Test Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole series(R232,R404)
6. Imported LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
Environmental Climatic High Low Temperature Cycling Test Chamber Technical Parameters:
| Model | HL-80(A~F) |
HL-150 (A~F) |
HL-225 (A~F) |
HL-408 (A~F) |
HL-800 (A~F) |
HL-1000 (A~F) |
| Internal Dimensions WxHxD (mm) | 400x500x400 |
500x600 x500 |
600x750x500 |
600x850x800 |
1000x1000 x800 |
1000x1000 x1000 |
| External Dimensions WxHxD (mm) | 950x1650x950 |
1050x1750 x1050 |
1200x1900 x1150 |
1200x1950 x1350 |
1600x2000 x1450 |
1600x2100 x1450 |
| Temperature Range | Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃ | |||||
| Analytic Accuracy/Distribution Uniformity of Temperature | 0.1℃ /±2.0℃ | |||||
| Control Accuracy of Temperature | ±0.5℃ | |||||
| Temperature Rising/Falling Speed Rate | Temperature rising approx. 0.1~3.0℃/min / temperature falling approx. 0.1~1.5℃/min; ( The Falling Speed Rate Min.1.5℃ per minute is a special optional condition) | |||||
| Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
|||||
| Insulation Material |
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
|||||
| Cooling System | Wind cooling or water cooling/single segment compressor(-40℃, double segment compressor -70℃) |
|||||
| Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses,fault warning system |
|||||
| Optional Accessories | Inner door with operation hole(Optional), Recorder(optional),Dehumidifier | |||||
| Compressor | French Tecumseh Brand, Germany Bizer Brand | |||||
| Power | AC220V, 1 PH 3 Lines,50/60HZ ; AC380V ,3 PH 5 Lines,50/60HZ | |||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 |

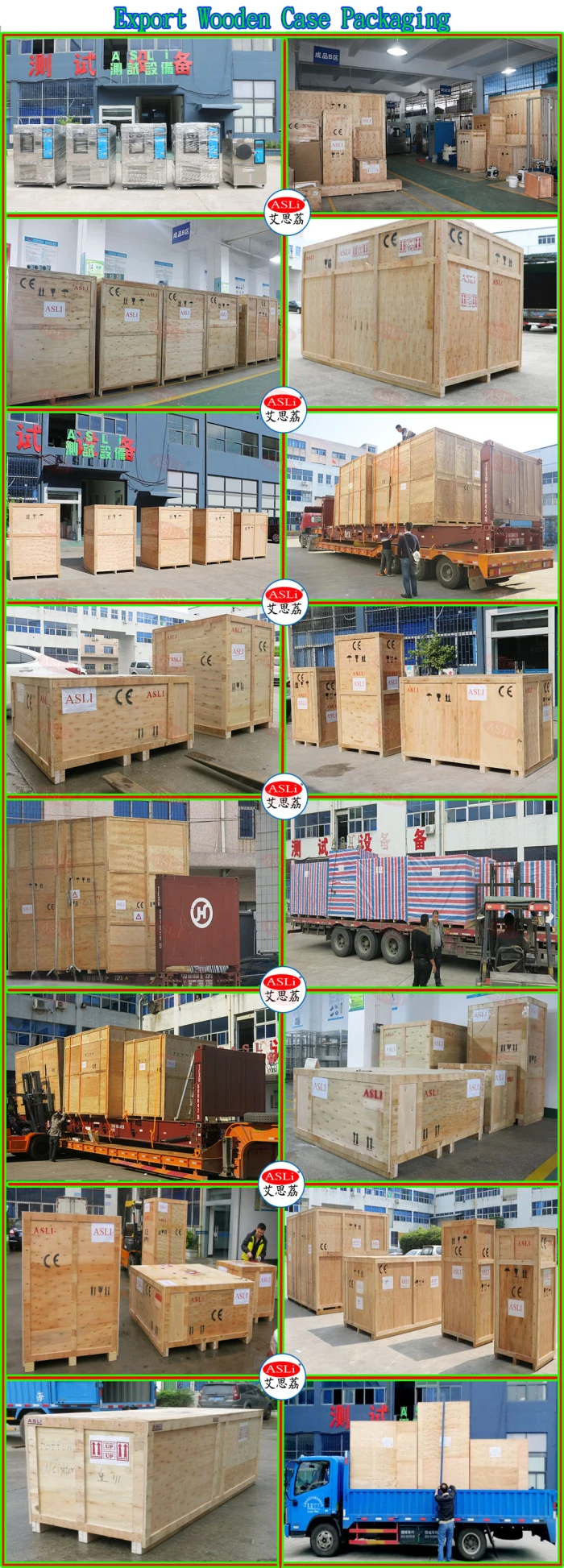

1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
7. Ship worldwide
