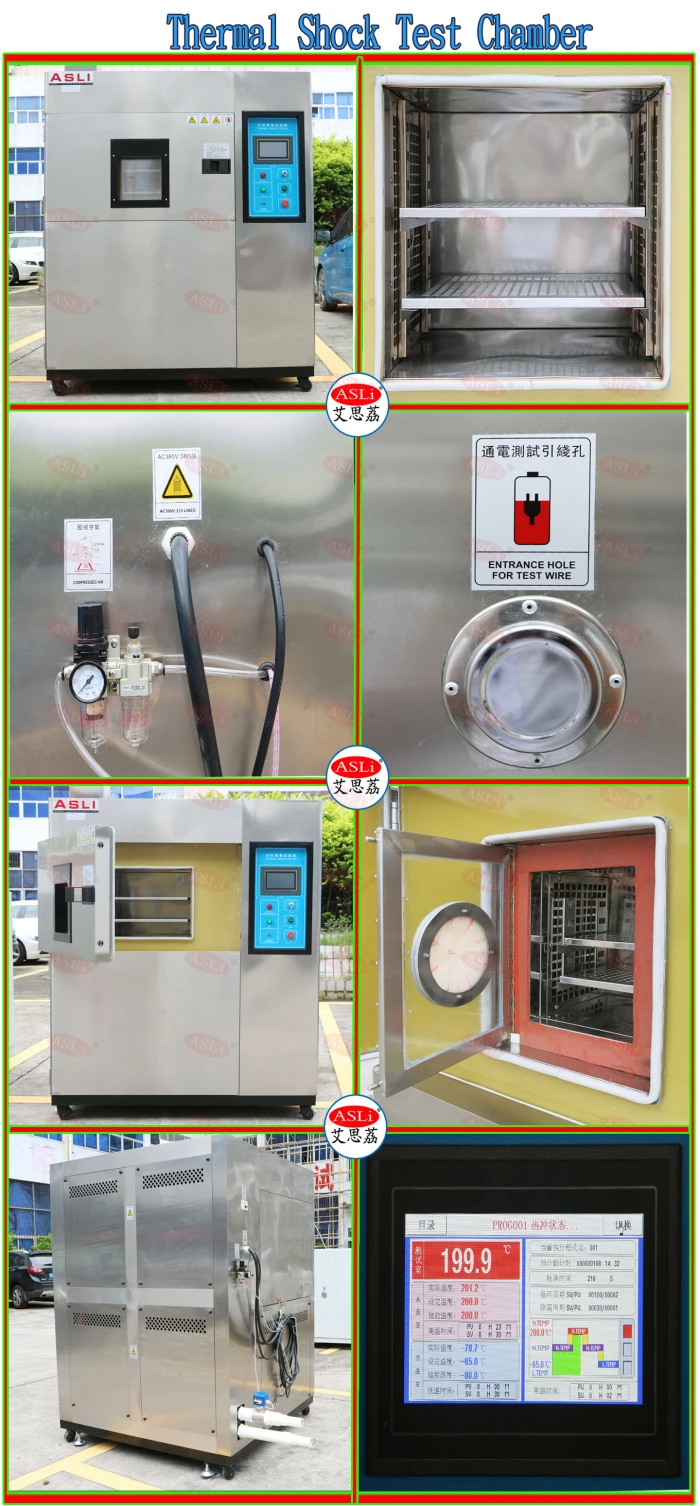

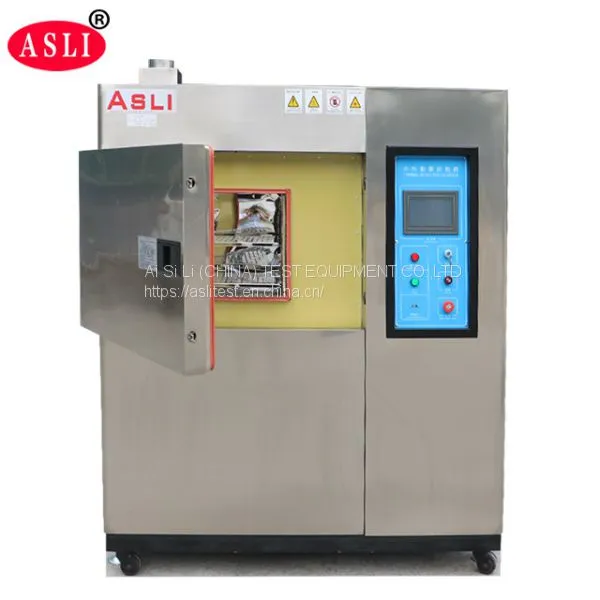

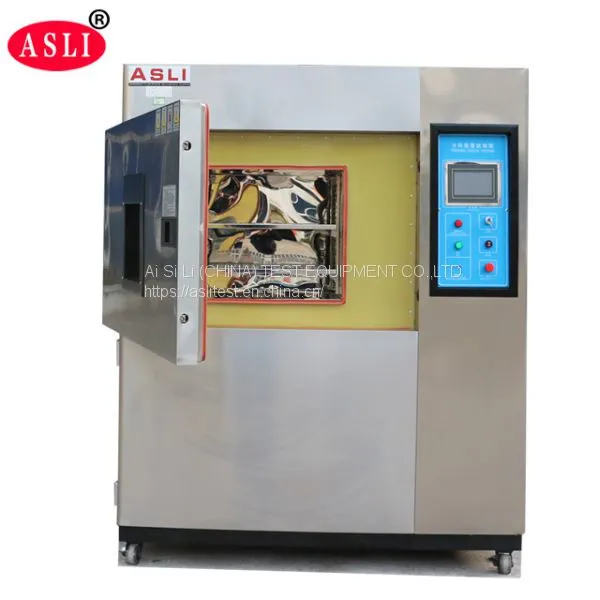

Thermal Shock Environmental High and Low Temperature Test Chamber Application:
Customized Vertical Climatic Thermal Shock Test Chamber is used to quickly find the hidden mechanical weaknesses in electronic components when test specimens are exposed to rapid thermal shock condition, and you will not only reduce the premature failures but also increase the reliability of your products when you choose our thermal shock test chamber.
Thermal Shock Environmental High and Low Temperature Test Chamber Features:
1.3-zone design: hot zone, cold zone, and testing zone.
2.The test specimens under test are stationary in the testing zone.
3.Touch-control operation interface for ease of use.
4.Max.999H and max.9999 cycles for high or low temperature shock.
5.Automatic cycling shock or/and manual selective shock are available
6.Water cooled, binary cooling system for quick cooling effect .
Thermal Shock Environmental High and Low Temperature Test Chamber Technical Parameters:
| Model |
TS-49 (A~C) |
TS-80 (A~C) |
TS-150 (A~C) |
TS-252 (A~C) |
TS-450 (A~C) |
TS-900 (A~S) |
|
| Internal Dimension WxHxD ( mm) |
400x350x350 | 500x400x400 | 600x500x500 | 700x600x600 |
800x750 x750 |
1000x900 x900 |
|
|
External Dimension WxHxD (mm) |
1400x1800 x1400 |
1550x1950 x1550 |
1600x2000 x1700 |
1700x2100 x1750 |
1800x2200 x1900 |
2100x2400 x2200 |
|
| Temperature Range of Testing zone |
Type A:-40 degree~ +150degree |
Type B:-55degree ~ +150degree |
Type C:-65degree ~ +150degree (200degree is Optional) |
||||
|
High temperature Range of Testing zone: +60degree~+150degree (200degree is Optional); Low Temperature Range of Testing Zone: -10degree~-40degree/-55degree/ -65degree | |||||||
| Exposure Time of High/Low Temperature |
Exposure Time of High Temperature:+60degree~+150degree (200degree is Optional) 30Mins |
||||||
|
Exposure Time of Low Temperature:-10degree~Type B:-40degree/ Type B -55degree/ Type C -65degree 30Mins | |||||||
| Temperature of Heat-Storing Slot/ Heating Time |
RT~200degree/About 45mins | ||||||
| Temperature of Cool-storing Slot/ Cooling Time |
RT~-75degree/ About 100mins | ||||||
|
Temperature Recovery Time/Conversion Time |
≤5min/≤5sec | ||||||
| Precision temperature Control / Distribution Accuracy |
±0.5degree/±2degree | ||||||
| Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
||||||
| Insulation Material |
High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials |
||||||
| Mechanics | P.I.D+S.S.R+ Micro-computer balanced temperature control system | ||||||
| Cooling System |
Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type) |
||||||
| Security Protection Devices |
Non-fuse breaker, high and low pressure protective switch of the compressor , refrigerator high-pressure protective switch, failure warning system, electronic alarm |
||||||
| Accessories | viewing window(special order) | ||||||
| Compressor | French “Tecumseh” Brand, Germany Bizer Brand | ||||||
| Power | AC220V 1ph 3 lines,50/60HZ, AC380V 3ph 5 lines,50/60HZ | ||||||
| Weight (Approx) (KG) | 450 | 600 | 750 | 900 | 1300 | 1500 | |
