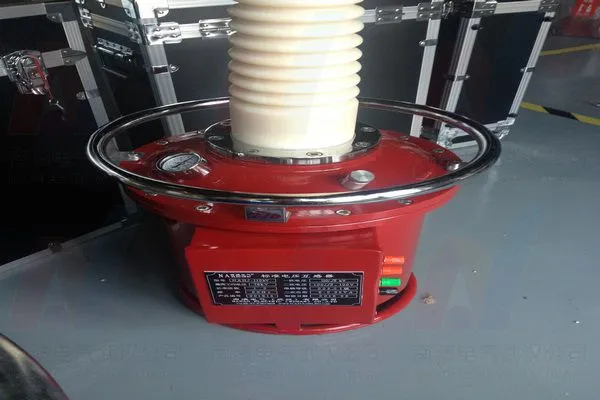

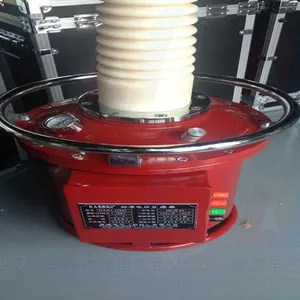

NANAO ELECTRIC Manufacture NAHJ Standard Voltage Transformer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2004
Overseas Office:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen/Wuhan, etc
Delivery Detail:
1 days
Related Products
-
NANAO ELECTRIC Manufacture NAFY Series Current Load BoxNegotiableMOQ: 1 Set -
NANAO ELECTRIC Manufacture NACX Double Adjustable Control BoxNegotiableMOQ: 1 Set
-
NANAO ELECTRIC Manufacture NASLQ Current GeneratorNegotiableMOQ: 1 Set
-
NANAO ELECTRIC Manufacture NAZKD Vacuum Interrupter Test SetUS$ 10 - 10MOQ: 1 Set
-
NANAO ELECTRIC Manufacture NADQ Series Automatic Capacitance Bridge / Inductance / Current TesterUS$ 10 - 10MOQ: 1 Set
Main Features
PT of 110/√3 kV, 0.01 class which has high voltage class and high accuracy, this can be used to calibrate the PT 110kV/100V below class 0.05. It can calibrate PT from 20% to 120% of rated voltage. And can be burdened with 0.25VA secondary load when the secondary voltage is 100V.
Technical Data
1. Rated voltage ratio: 110/√3 kV /100V（0.1））；110/√3kV/100/√3V（0.05）
2. Rated secondary capacity: 0-0.25VA CosФ=1.0
3. Accuracy class: Class 0.05
4. Testing voltage: primary winding is 1.2 /1 min voltage withstand . Secondary winding is above earth and 2kV/1min power frequency withstand.
5. Rated frequency:50Hz
6. Maximum working voltage: 76.2kV
7. Inflatable, with SF6, single phase and semi insulating.
